-85-
salva
E N G L I S H
14.3.1. Steam condenser electrical connection
This should be carried out by authorized professionals accor-
ding to regulations in the country in question.
Type
Model
V
A
Hz
Phase
W
CV-E
2013
230
0.35
50/60
I~
8
CV-
NXD
2013
230
0.125
50/60
I~
30

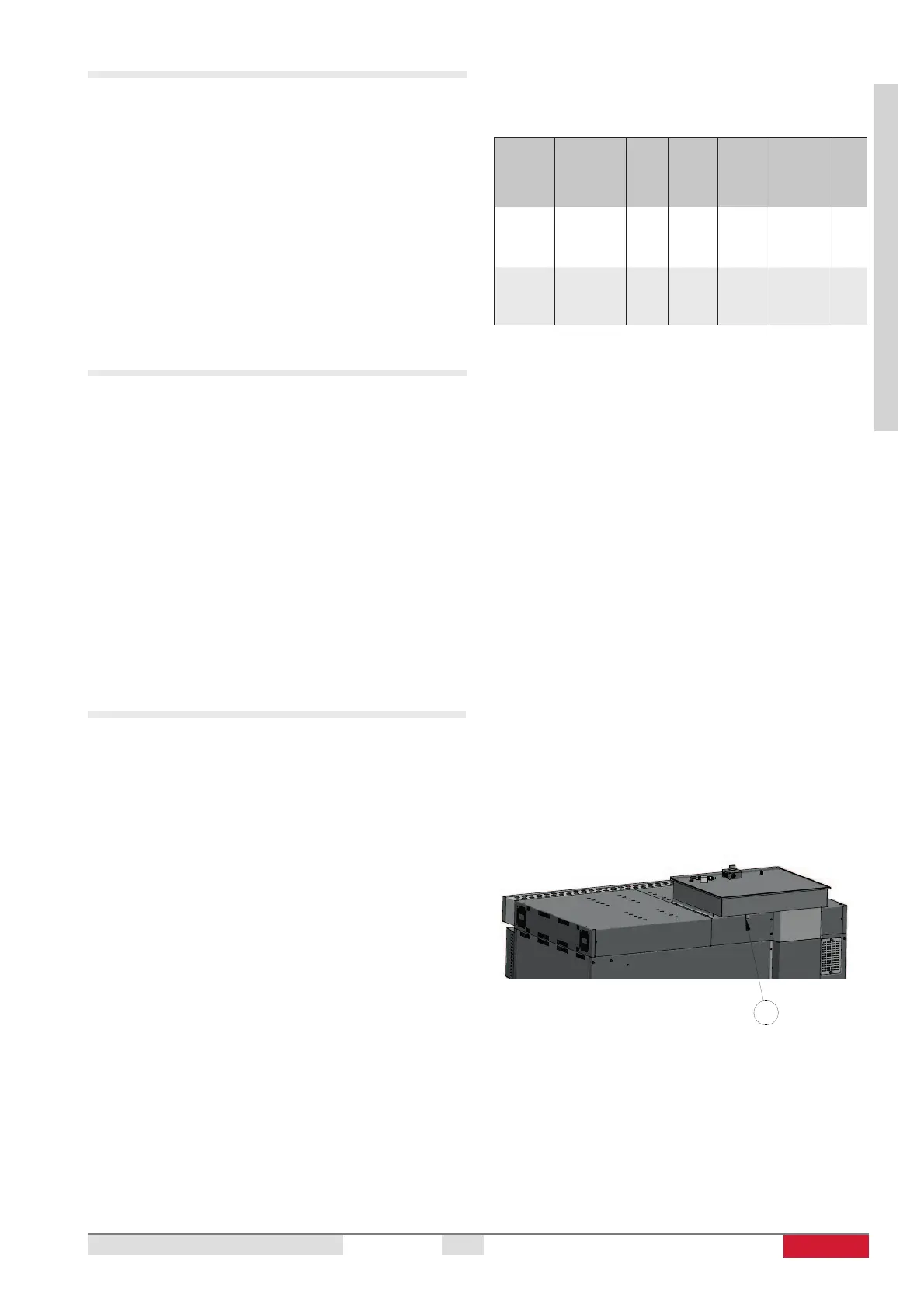

14.3.3. Steam condenser drain
A rubber water pipe fixed with brackets must be fitted onto the
condenser outlet tube:
• CV-E: Ø int=20 mm.
• CV-NXD: Ø int=25 mm.
1
ca563f01.dft
14.3.2. Water intake
The condenser is supplied with:
• CV-E:
1/4” female coupling plus 1/4” spigot to pipe, finished
with flexible pipe of interior diameter Ø8 mm.
• CV-NXD:
3/4” male coupling, finished with 3/4” female washing
machine hose.
The water input should be adapted to this connection using a
commercially available coupling.
The water input pressure regulator must be positioned at 0.5
kg/cm².
