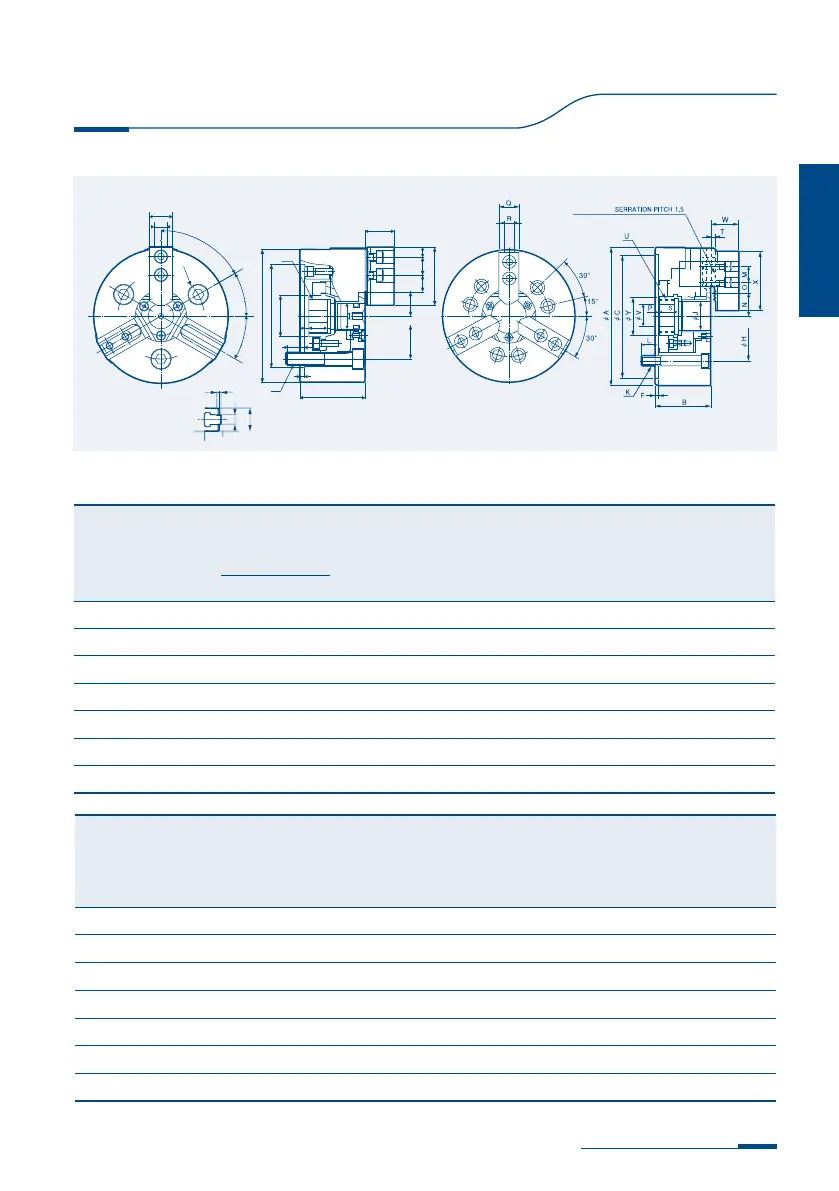

SAMCHULLY HCH - Specification

HCH-04
8
19
H7/h8
2
1.5
X
C
Y
A
U
W
P
S
J
F
B
ØH
L
N
MO
K
30°
R35.3
60°
30°
Q
R
HCH-12~24
(HCH 21-32 SERRATION PITCH 3.0)
37
Instruction Manual
Instruction Manual
형식
Type
型式
허용최고
회전속도
Max. R.P.M.
最大转速
[min
-1
(r.p.m.)]
중량
Weight
重量
[kgf]
관성모멘트
GD²
转动惯量
[N·m²(kgf·m²)]
적용실린더
Operating Cylinder
工作缸
최대설정 유압력
Max. Hydraulic
Pressure
最大液压压力
[Mpa(kgf/cm²)]
적용죠
Operating
Hard Jaw
工作硬爪
호환모델
KITAGAWA®
Model
北川型号
HCH-04 5500 3.7 0.20(0.024) HYH-0933 2.2(22.4) HB04A1 B-04
HCH-12 3000 63.0 29.71(3.030) SH-19082 2.3(23.5) HB12B1 B-12
HCH-15 2500 120.0 89.41(9.090) SH-25011 2.3(23.5) HB15A1 B-15
HCH-18 2000 164.0 174.60(17.800) SH-25011 2.3(23.5) HB15A1 B-18
HCH-21 1700 235.0 351.10(35.800) SH-25011 3.0(30.6) HB18B2 B-21
HCH-24 1400 293.0 651.20(66.400) SYHL-2816 3.0(30.6) HB18B2 B-24
HCH-32 1200 530.0 598.40(61.000) SYHL-2816 3.2(33.6) HB32B2 -
형식
Type
型式
관통경
Thru Hole Dia.
通孔直径
[mm]
파악경
Grip Dia.
软爪的夹范围
[mm]
죠 스트로크 직경
Jaw-Stroke Dia.
爪行程(直径)
[mm]
플런져 스트로크
Plunger Stroke
柱塞行程
[mm]
허용최대입력
Max. Permissible
Input Force
允许输入力
[kN(kgf)]
최대정적 파악력
Max. Static
Grip Force
最大静态夹持力
[kN(kgf)]
Max. Min.
HCH-04 21.0 110 5 4.2 6.5 8(800) 13(1350)
HCH-12 78.0 304 19 10.6 23.0 49(4997) 129(13150)
HCH-15 117.5 381 30 10.6 23.0 71(7240) 180(18355)
HCH-18 117.5 450 30 10.6 23.0 71(7240) 180(18355)
HCH-21 140.0 530 87 10.6 23.0 90(9177) 234(23861)
HCH-24 165.0 610 110 10.6 23.0 90(9177) 234(23861)
HCH-32 240.0 800 240 18.0 34.0 100(10193) 240(24464)
사양
/ Specification
08.
󾖽󾖴󳩏󴉊󱾌󳽈
HCH
사양 / Specification / 技术参数
