After the mixing process, the shaft of the DSP is disconnected from the mixing blade
of the DSP by turning in a clockwise direction (see Fig. 3).

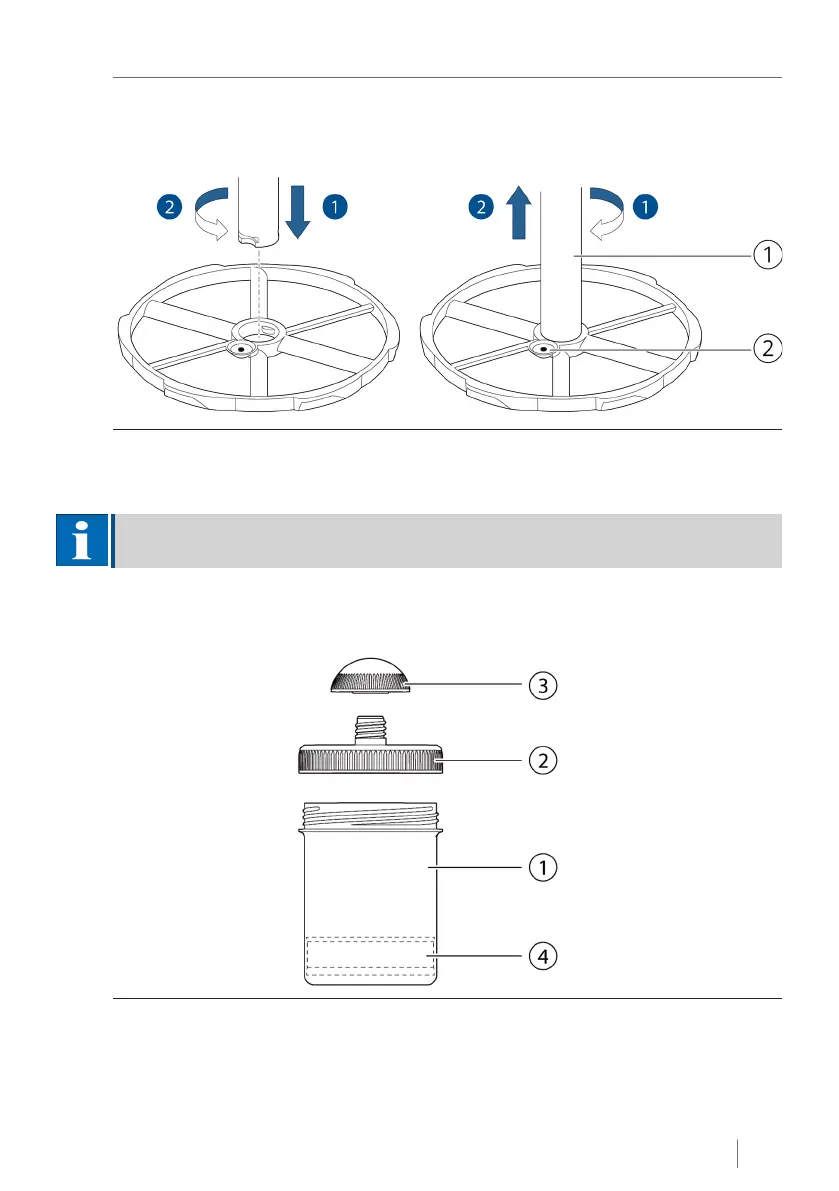

Fig. 3: Disposable blade (DSP): Assembly and disassembly
1 DSP shaft 2 Injection point
NOTICE
The cleaning is restricted to the shaft of the DSP.
3.2.2 Jars
Fig. 4: Jar
1 Jar housing 3 Jar cap
2 Jar lid 4 Jar base (movable)
