Samson 3214 Mounting And Operation Instructions

EB 8331-3 EN 5-1
Installation
5 Installation
The work described in this section is only to be performed by personnel appropriately quali-
edtocarryoutsuchtasks.
5.1 Installation conditions
Work position
If not described otherwise in the valve documentation, the work position for the control valve
is the front view looking onto the operating controls.
Mounting orientation
Thecontrolvalvecanbeinstalledinthepipelineinanydesiredposition.However,asus-
pendedmountingpositionoftheactuatorisnotpermissible(seeFig.5-1).
 
!
0...90°
0...90°

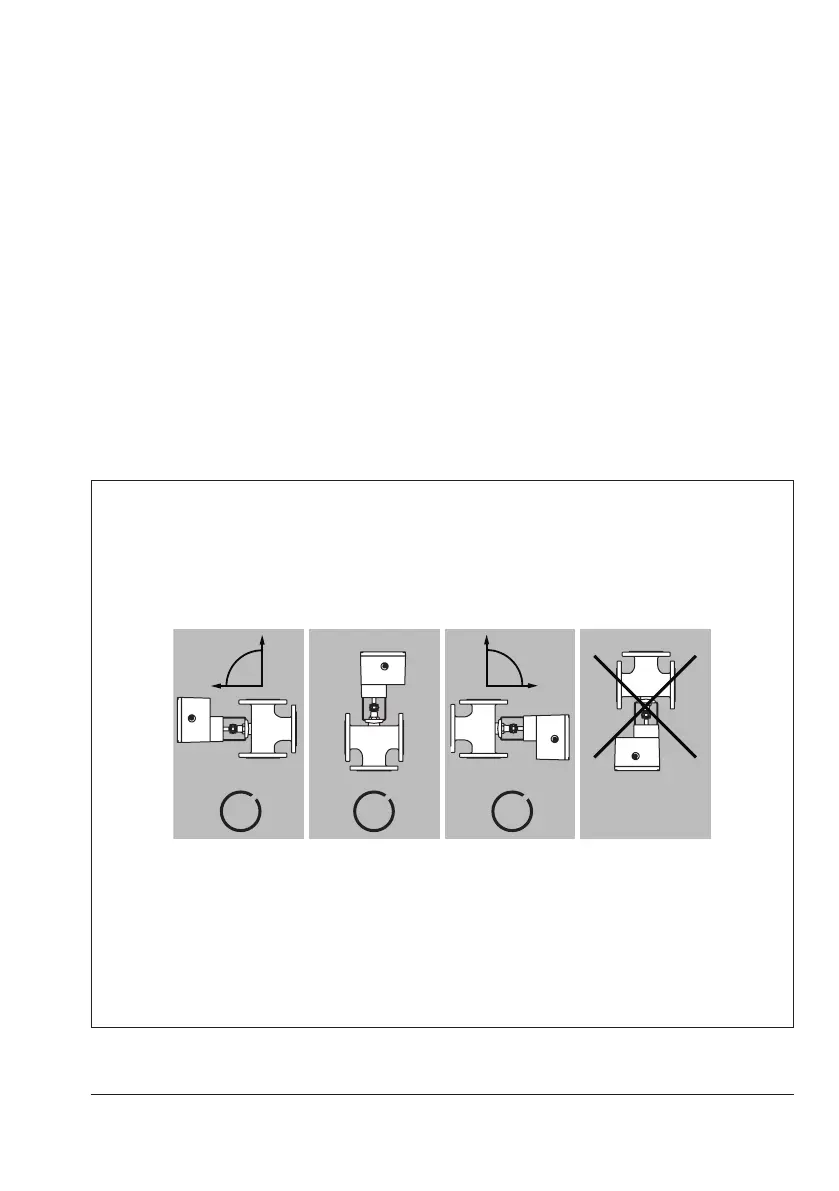

Fig.5-1: Mounting position
