Samson 3244 Operating Instructions

12 EB 8026 EN
Markings on the control valve
2 Markings on the control valve
2.1 Valve nameplate
6 8
12 13
10 11
14
15
16
17
18
1…5
9
SAMSON
20

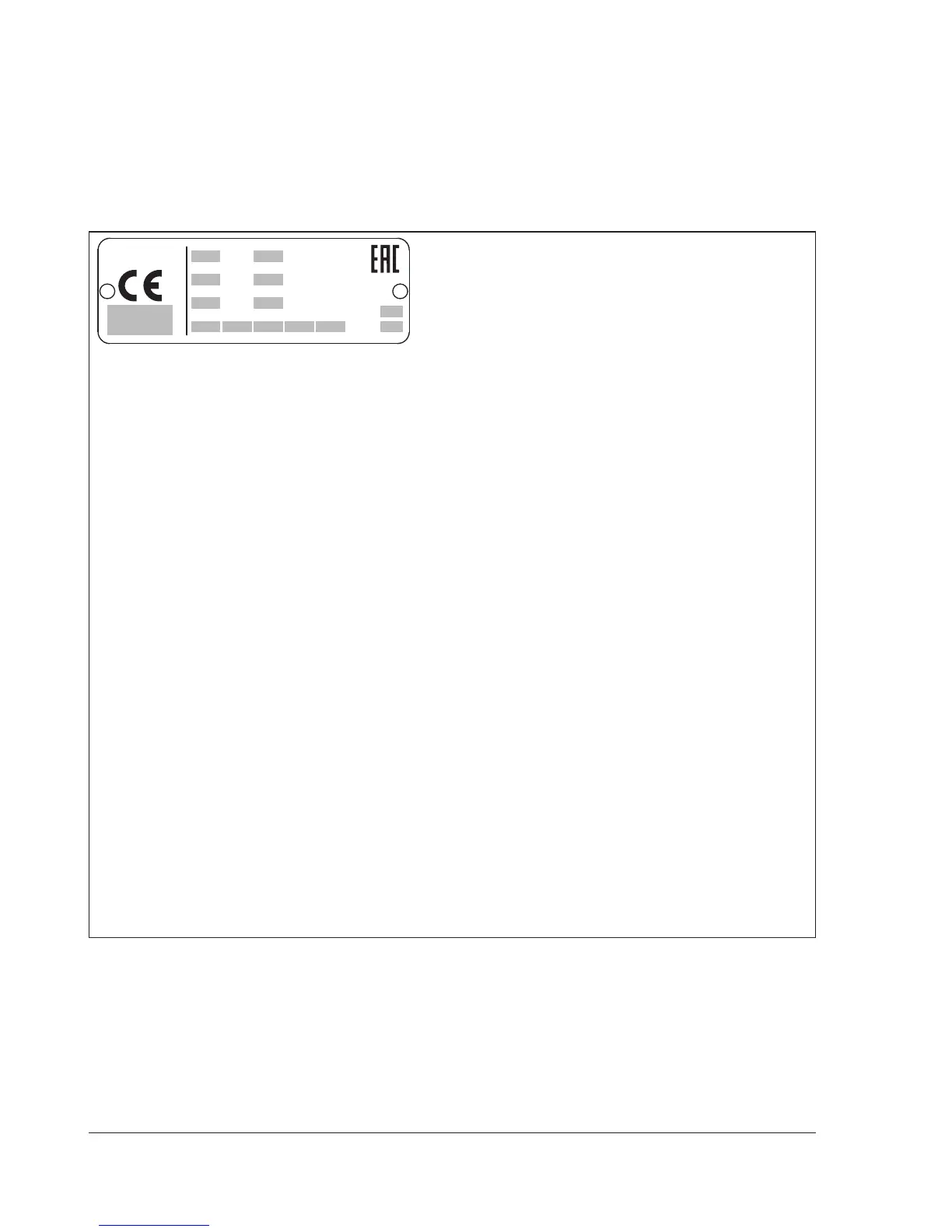

Fig.1: Valve nameplate
1…5 PED (Pressure Equipment Directive), "Art. 4, Abs. 3"
ID of the notied body, uid group, and category
6 Type designation
8 Material
9 Year of manufacture
10 Valve size:
DIN: DN · ANSI: NPS· JIS: DN…A/B
11 Pressure rating:
DIN: PN · ANSI: CL · JIS: K
12 Order no. with modication index
For after-sales service orders: AA prex
13 Position in order
For after-sales service orders: conguration ID
14 Flow coefcient:
DIN: K
VS
· ANSI: C
V
· JIS: C
V
15 Characteristic:
Lin: linear
16 Seat/plug seal:
ME: metal (see section3.3)
HA: carbide metal
ST: Stellite
®
facing
17 Seat code (trim material) · On request
18 Version:
Mixing valve: M · Diverting valve: V
20 Country of origin
