Samson 3244 Operating Instructions

22 EB 8026 EN
Measures for preparation
Lifting the control valve
1. Attach one sling to each ange of the
body and to the rigging equipment (e.g.
hook) of the crane or forklift (see Fig.5).
2. If necessary, attach another sling to the
lifting eyelet on the actuator and to the
rigging equipment.
3. Carefully lift the control valve. Check
whether the lifting equipment and acces-
sories can bear the weight.
4. Move the control valve at an even pace
to the site of installation.
5. Install the valve into the pipeline (see sec-
tion5.2.3).
6. After installation in the pipeline, check
whether the anges are bolted tight and
the valve in the pipeline holds.
7. Remove slings.
We recommend using a hook with safety
latch (see Fig.5). The safety latch prevents
the slings from slipping during lifting and
transporting.
4.3 Storage
Risk of valve damage due to improper stor-
age.
− Observe storage instructions.
− Avoid long storage times.
− Contact SAMSON in case of different stor-
age conditions or long storage periods.
We recommend regularly checking the con-
trol valve and the prevailing storage condi-
tions during long storage periods.
Storage instructions
− Protect the control valve against external
inuences (e.g. impact).
− Do not damage the corrosion protection
(paint, surface coatings). Repair any
damage immediately.
− Protect the control valve against moisture
and dirt. Store it at a relative humidity of
less than 75%. In damp spaces, prevent
condensation. If necessary, use a drying
agent or heating.
Tip
NOTICE
!
Note

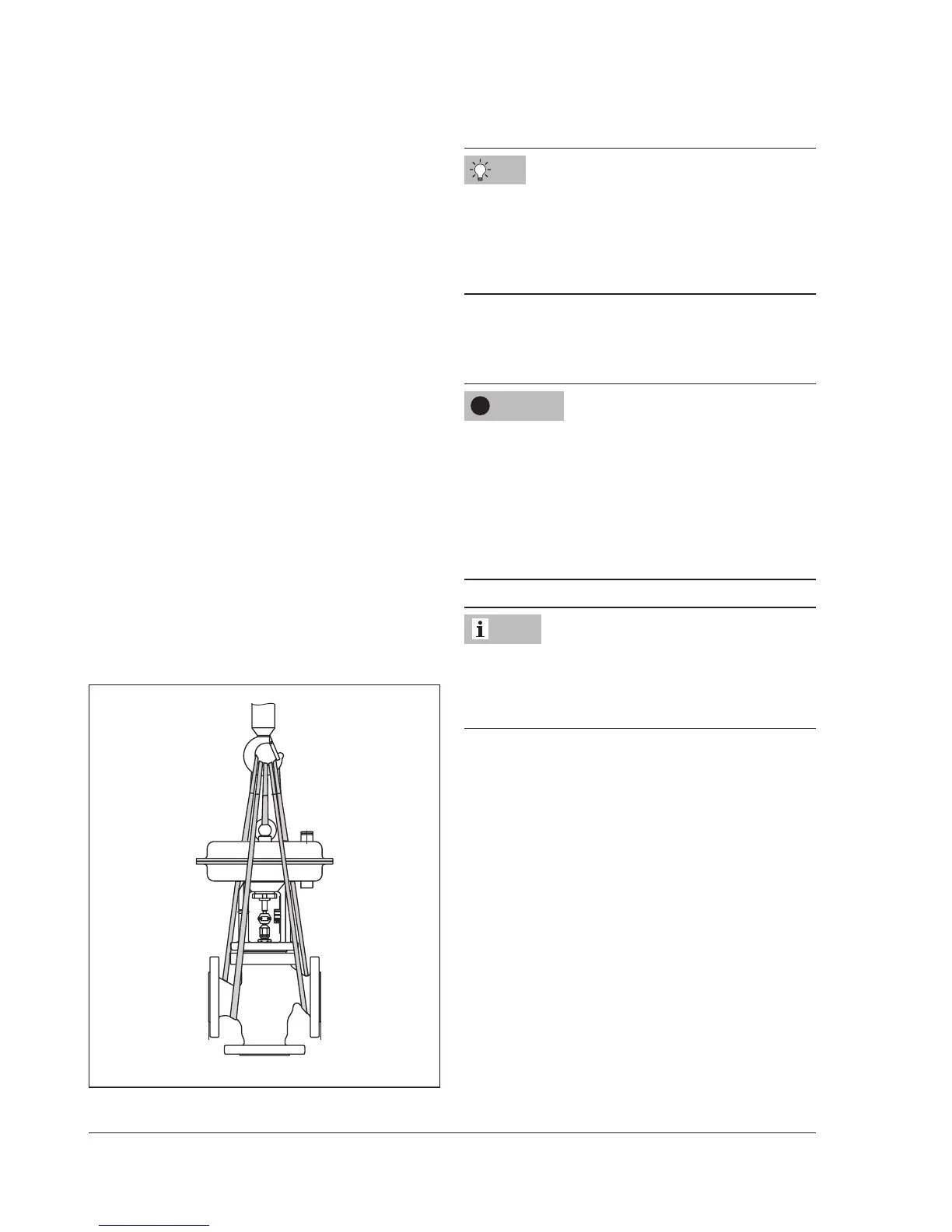

Fig.5: Lifting points on the control valve
