Samson 3244 Operating Instructions

34 EB 8026 EN
Servicing
14
25
21
2
33
AB A
B
9
A26/27
5
4
1
2
15
8
10
A8
A7
141
17
84
A
AB
B
1 Body
2 Flange
4 Top seat
5 Plug (with plug stem)
8 Threaded bushing
(packing nut)
9 Stem connector nut
10 Lock nut
14 Nuts
15 Packing
17 Body gasket
21 Insulating section
25 Plug stem extension
33 Nuts
84 Travel indicator scale
141 Bottom seat
A7 Actuator stem
A8 Ring nut
A26/
27
Stem connector clamps

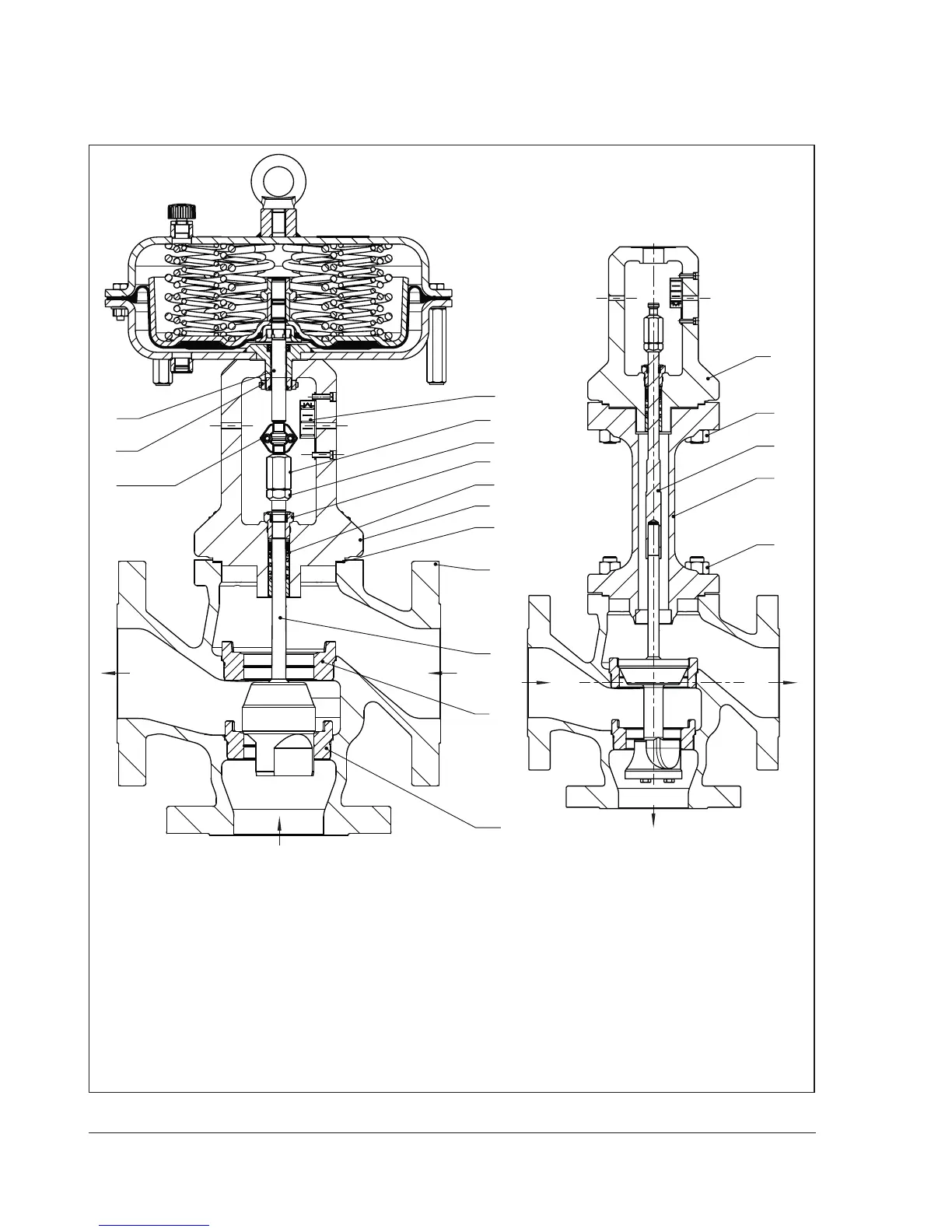

Fig.7: Standard version of Type3244 (as mixing valve) with Type3271 Actuator (left) and
Type3244 (as diverting valve) in version with insulating section (right)
