Samson 3251-E - Page 51

EB 8052-E EN 5-17
Installation
2
15
92
60
5.1
8
2 Valve bonnet
5.1 Plug or piston stem
8 Threaded bushing
15 Packing
60 Yoke
92 Castellated nut

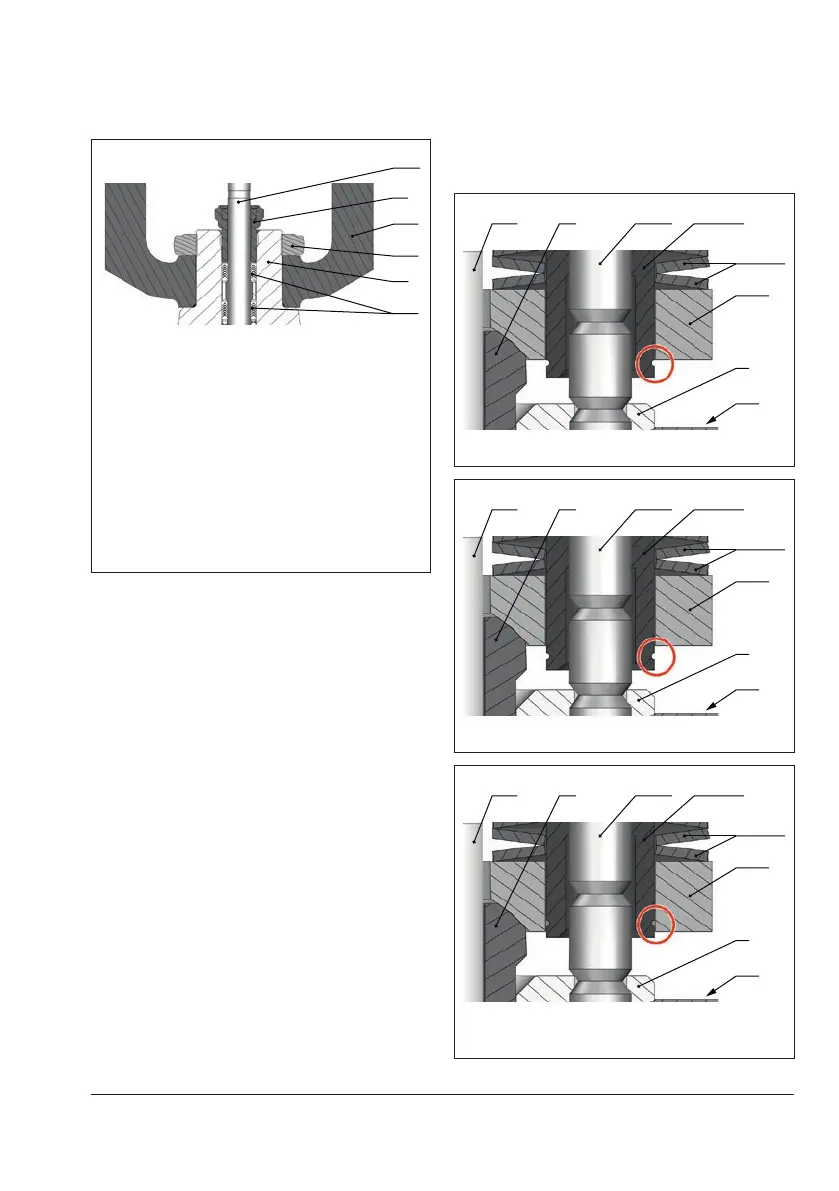

Fig.5-7: Standard/HT packing with threaded
bushing
LLF20 packing (packing gland)
1. Gradually tighten the guide bolts (163.1)
of the spring loading assembly (163) at
the hex head clockwise in a crisscross
pattern (
1
/
8
turn at a time) until the correct
alignment of the guide bolts (163.1) to
the packing gland (162) is achieved.
The groove at the bottom of the guide
bolts (163.1) is ush with the bottom of
the packing gland (162). See Fig.5-8.
2. Open and close the valve several times.
3. Check the valve for leakage to the atmo-
sphere.
Î If the adjustable packing does not seal
properly, contact our after-sales service.
Î If tightening of the adjustable packing is
no longer possible because it has its
elasticity (see Fig.5-11), it must be re-
placed (see the 'Servicing' section).
5.1 8 164 163.1
163.2
162
2
92
Fig.5-8: LLF20 packing tightened correctly
5.1 8 164 163.1
163.2
162
2
92
Fig.5-9: LLF20 packing tightened too far
5.1 8 164 163.1
163.2
162
2
92
Fig.5-10: LLF20 packing not tightened far
enough
