6 T 8313 EN
Mountingtypes
There are two types of mounting depending on the valve/actuator combination: mounting using a crossbeam or mounting on rods.
When the actuator is mounted to the valve using a crossbeam (Form B, Fig.8), the actuator is fastened to the valve bonnet using a
central nut.
When the actuator is mounted on rods (Form C, Fig.9) the actuator is connected to the valve bonnet using rods. In this case, a
crossbeam is not required for mounting the actuator.

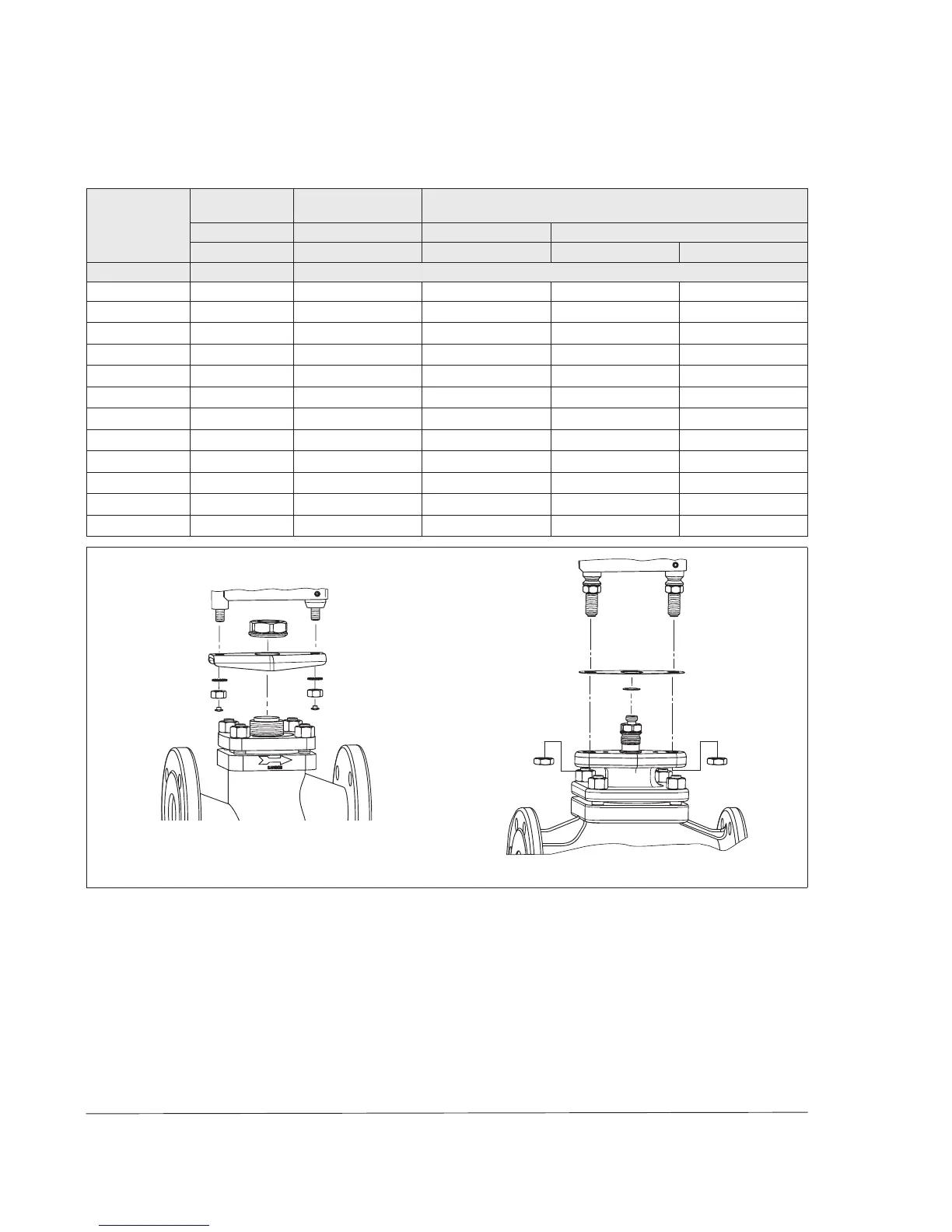

Table2: Mounting types (see Fig.8 and Fig.9)
Version Integrated i/p
converter
Type3725Positioner(directattachment)
Actuator area 120cm² 120cm² 350cm²
Travel 15mm 15mm 15mm 30mm
Type...Valve NominalsizeDN
3321 15 to 50 FormB FormB –
–
3321 65 to 100 – FormC FormC –
3321 100 – – – FormC
3323 15 to 50 FormB FormB – –
3323 65 to 80 – FormC FormC –
3323 100 – – – FormC
3531 15 to 80 FormB FormB –
–
3535 15 to 80 FormB FormB –
–
3214 65 to 100 FormB FormB –
–
3214 125 to 250 – – – On request
3260 65 to 80 FormB FormB –
–
3260 100 to 150 – – – On request
Fig.8: FormB: mounting using crossbeam Fig.9: FormC: mounting on rods
