EB 8048-2 EN 2-1
Markings on the device
2 Markings on the device
2.1 Body inscription
The details on the valve version are lasered
onto the front and back of the valve body
(see Fig.2-2). No nameplate is used.
2.2 Material identication
number
The seat and plug of the valves have a mate-
rial number written on them. Specifying this
material number, you can contact us to nd
out which material is used.
2.3 Actuator nameplate
See associated actuator documentation.
2.4 Label when an adjustable
packing is installed
An instructional label is afxed to the valve
when an adjustable packing is installed (see
Fig.2-1).

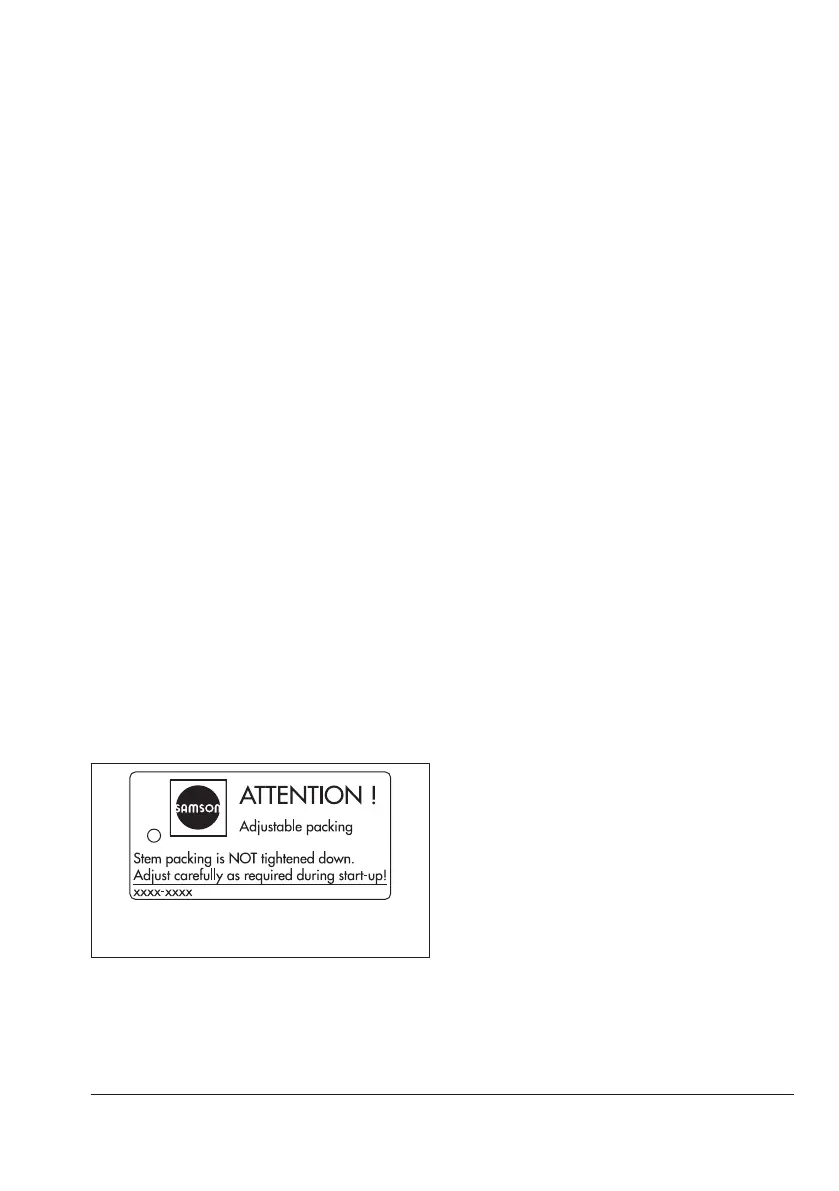

Fig.2-1: Label when an adjustable packing is
installed
