Mounting and start-up
8.1 10 688.2 5
6
76 411.1 1.2
1 Connecting plate
1.1 Sealing element
1.2 M3x16 screws
4 Hose
5 Threaded bushing
6 Hollowscrewwith
grommet
7 Screw
8 Connecting piece
8.1 M4x12 screw
8.2 M4x40 screw
10 O-ring
Accessories (1400-6227)

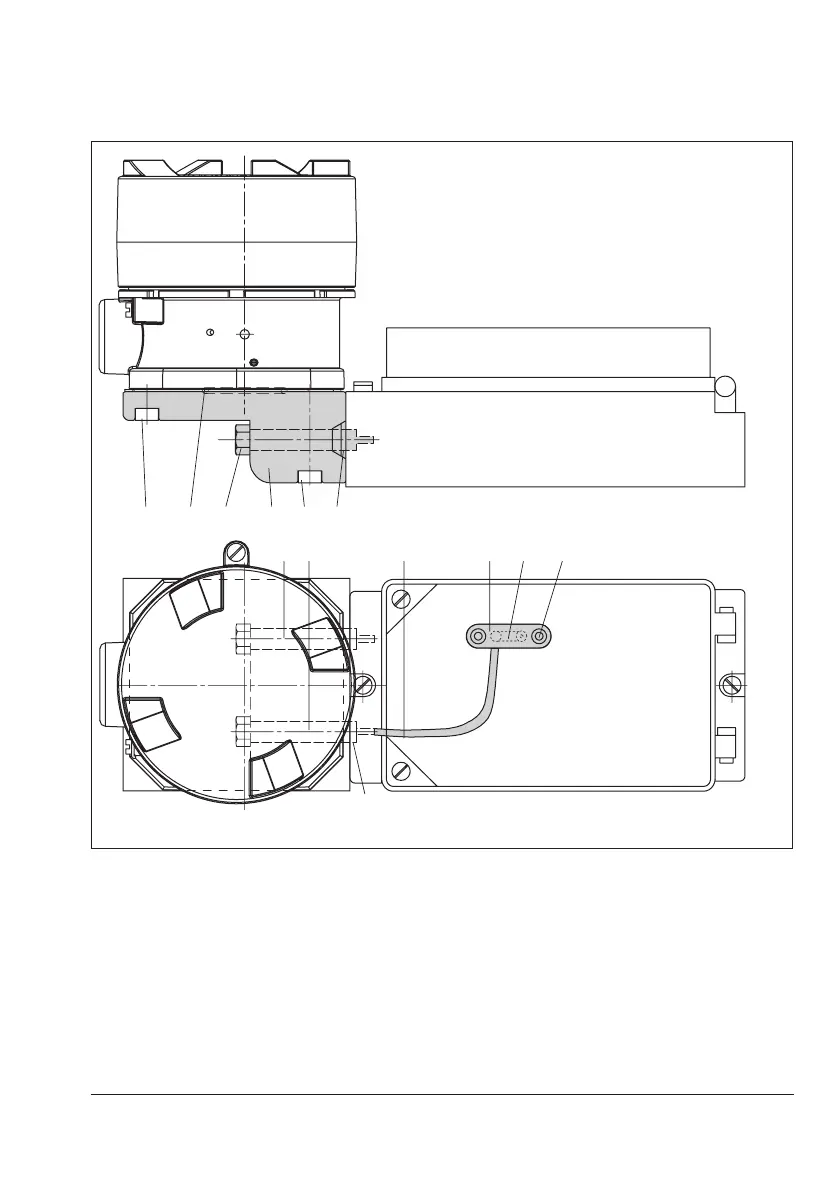

Fig.13: Direct attachment to Type3766 Positioner
