Mounting and start-up
10
9
9.1
11
9.3
9.2
12
4
1.2
1
1.1
1 Connecting plate
1.1 Sealing element
1.2 M3x16 screws
4 Cap
9 Connecting piece
9.1 M4x12 screw
9.2 M4x40 screw
9.3 M4x55 screw
10 O-ring
11 Vent plug
12 Hexbar(notrequiredfor
mounting to a NAMUR rib)
Accessories (1400-6224)
Positioner (opened)

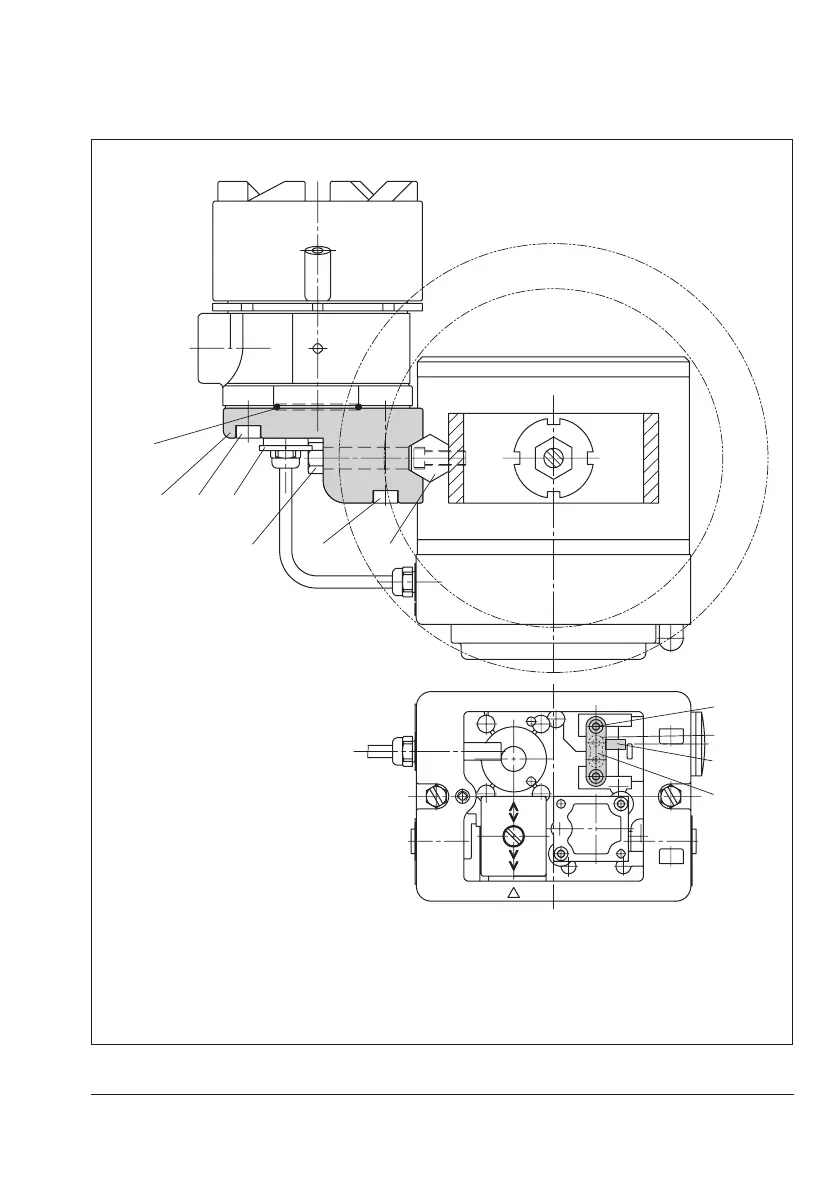

Fig.15: Attachment to micro-ow valve with Type3760 Positioner
