S zone Wiring Guide

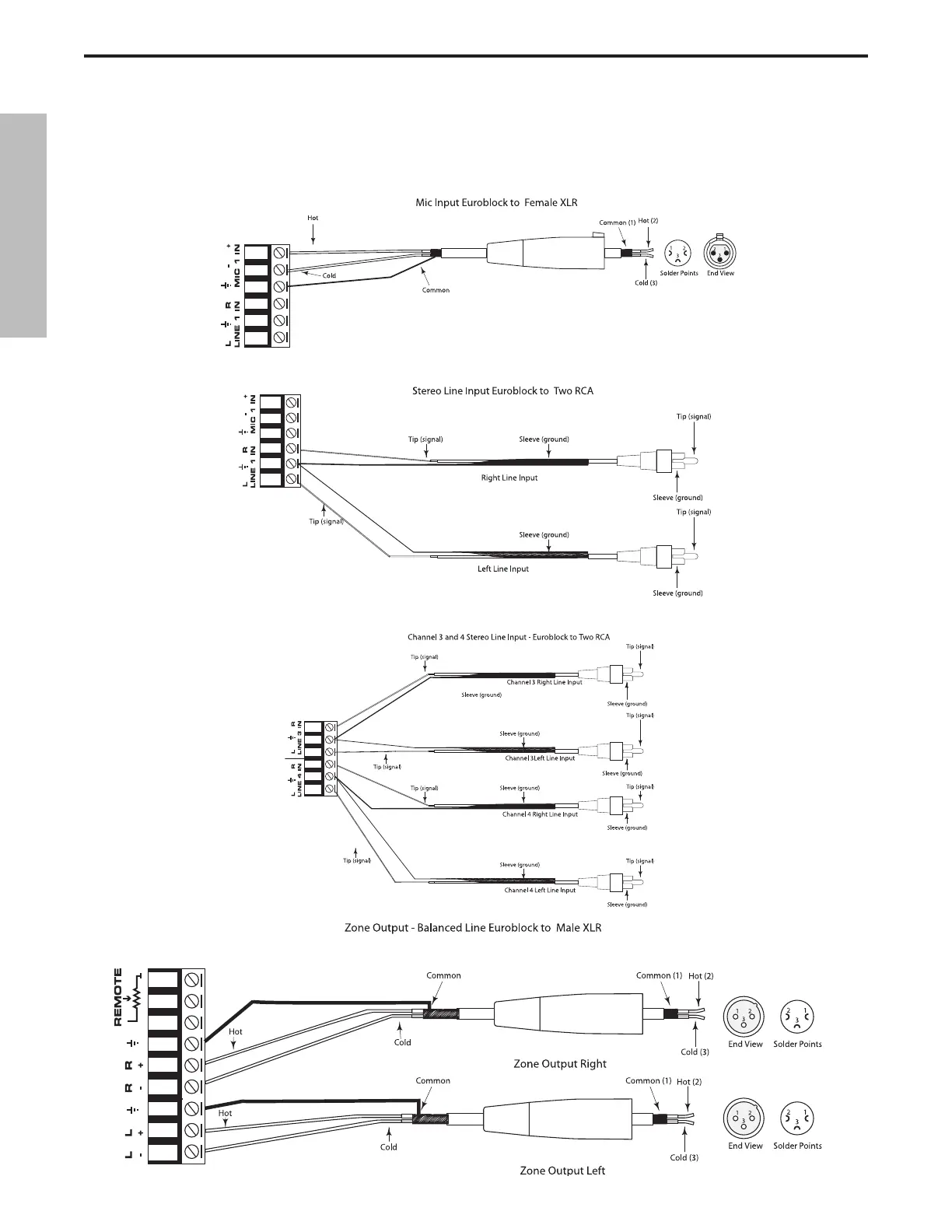

There are several ways to interface the S zone, depending on your exact monitoring set-up. Follow the cable diagrams

below for connecting your monitor system.

Mic Input Wiring for Channel 1 and 2

Line Input Wiring for Channel 1 and 2

Line Input Wiring for Channel 3 and 4

Zone Output
