INPUT SECTION
1 VOLUME – Rotary control used to adjust the level of
signal source connected to channel 1.
2 ZONE 1When the LED Backlit switch is pressed
in, the switch lights red and the input is assigned to
ZONE 1.
3 ZONE 2
When the LED Backlit switch is pressed in,
the switch lights green and the input is assigned to
ZONE 2.
4 STEREO/MONO
switch - This switch is used to
select either stereo or mono input.
5 SCRIBE STRIP
– Convenient area for marking the
input source allowing you to label the channel with
the device connected to the input.
6 ZONE 3
When the LED Backlit switch is pressed in,
the switch lights amber and the input is assigned to
ZONE 3.
7 ZONE 4When the LED Backlit switch is pressed in,
the switch lights orange and the input is assigned to
ZONE 4.
8 MIC/LINE 2 – Channel 2 input with the same knob
and switch complement as Channel 1.
9 LINE 3 – Channel 3 input with the same knob and
switch complement as Channel 1.
10 LINE 4 – Channel 4 input with the same knob and
switch complement as Channel 1.
MONITOR SECTION
11 MONITOR SPEAKERThis built-in, miniature super-
speaker allows you to listen to the signal that is pres-
ent at any ZONE OUTPUT.
12 MONITOR VOLUME
- This rotary control is used
to adjust the monitor level heard in the front panel
Headphone jack or SUPER SPEAKER.
Controls and Functions

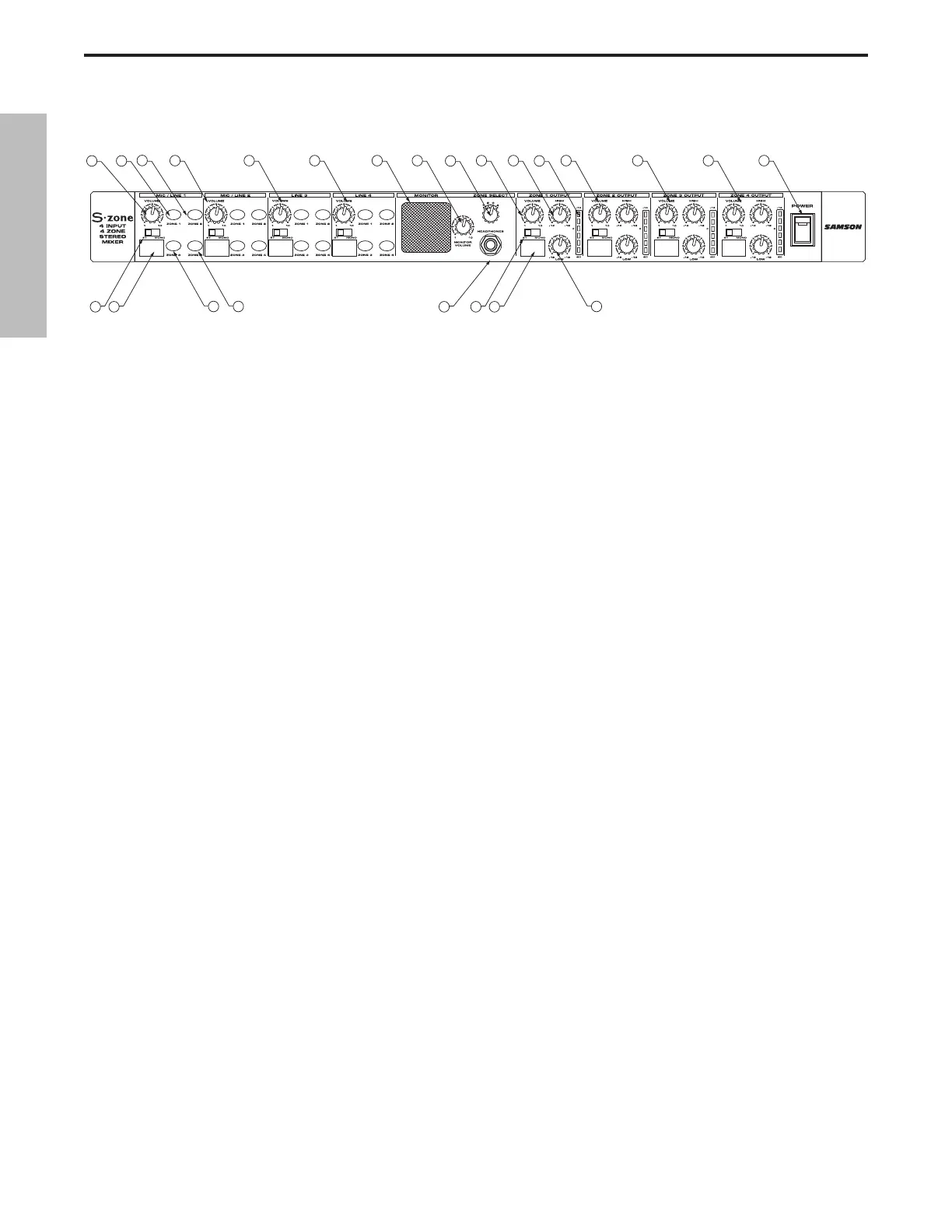

Front Panel Layout
13 ZONE SELECT switchThis four-position switch is
used to assign any of the four Zones to play in the
MONITOR SPEAKER or HEADPHONE JACK.
14 HEADPHONE JACK
- Connect any standard stereo
headphone using a standard 1/4-inch jack to moni-
tor the ZONE OUTPUTS.
ZONE OUTPUT SECTION
15 VOLUME
This rotary control is used to control the
overall level of OUTPUT ZONE 1.
16 HIGH
– High frequency equalizer rotary control
with +/-12 dB of cut or boost at 10kHz.
17
OUTPUT METER – Six-segment LED meter display-
ing the level of the ZONE 1 OUTPUT with -20 to +14
dB indicators.
18 STEREO/MONO switch
- This switch is used to
select either stereo or mono operation on the ZONE
1 OUTPUT.
19 SCRIBE STRIP
– Convenient area for marking the
ZONE OUTPUT allowing you to notate the room or
area the zone is feeding.
20 LOW– Low frequency equalizer rotary control with
+/-12 dB of cut or boost at 100Hz.
21 ZONE OUTPUT 2 – ZONE 2 OUTPUT with the same
knob and switch complement as ZONE 1 OUTPUT.
22 ZONE OUTPUT 3 – ZONE 3 OUTPUT with the same
knob and switch complement as ZONE 1 OUTPUT.
23 ZONE OUTPUT 4 – ZONE 4 OUTPUT with the same
knob and switch complement as ZONE 1 OUTPUT.
24 POWER switch
– Use this switch to power the unit
on and off.
  

  
    
