TXM16 and TXM20 System Set-Ups


 
     
 



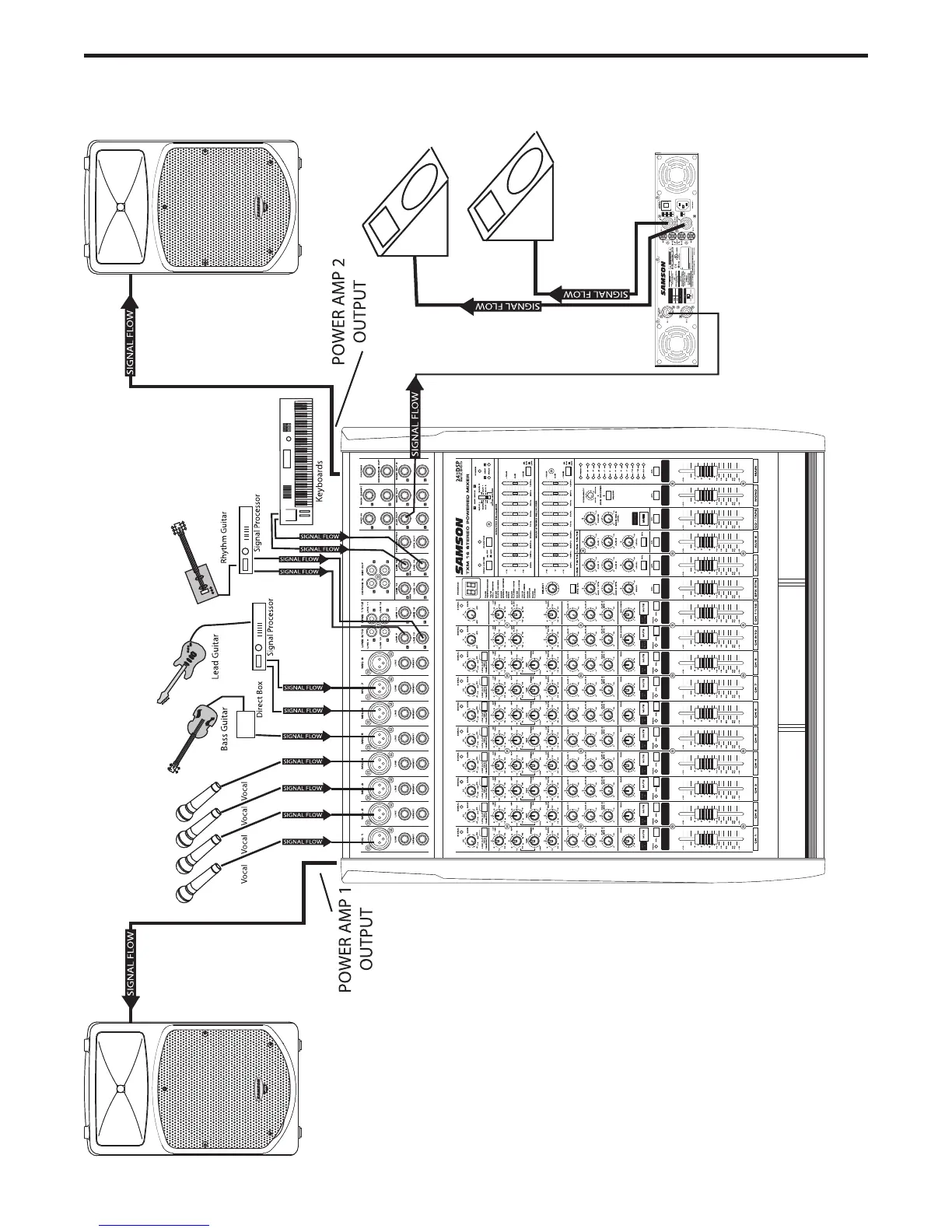

This system shows the TXM16 power amp operating in MAIN/MAIN mode, with one speaker connected to POWER AMP 1 and one speaker connected to POWER AMP 2. The AUX OUT is connected to an exter
-
nal power amp, which is driving 2 monitor speakers. For inputs, two microphones are connected to channel 1 and 2’s low-imped
-
ance inputs, and the output of the Bass Direct Box is also connected to the Low-Impedance input on channel 4. The Keyboards, as well as the Lead and Rhythm Guitar signal processors’ outputs, are connected to the TXM16’s line inputs.
TXM16’s AUX OUT con-
nected to an external monitor amp.

Samson TXM20 Specifications

General

Type	Analog
Channels	20
EQ Bands	3-band
EQ	Yes
Aux Sends	4
Phantom Power	Yes
Outputs - Main	2 x XLR, 2 x 1/4"
Line Inputs	20
Outputs - Aux	4 x 1/4" TRS
Faders	60mm Faders
Power Supply	Internal
