24

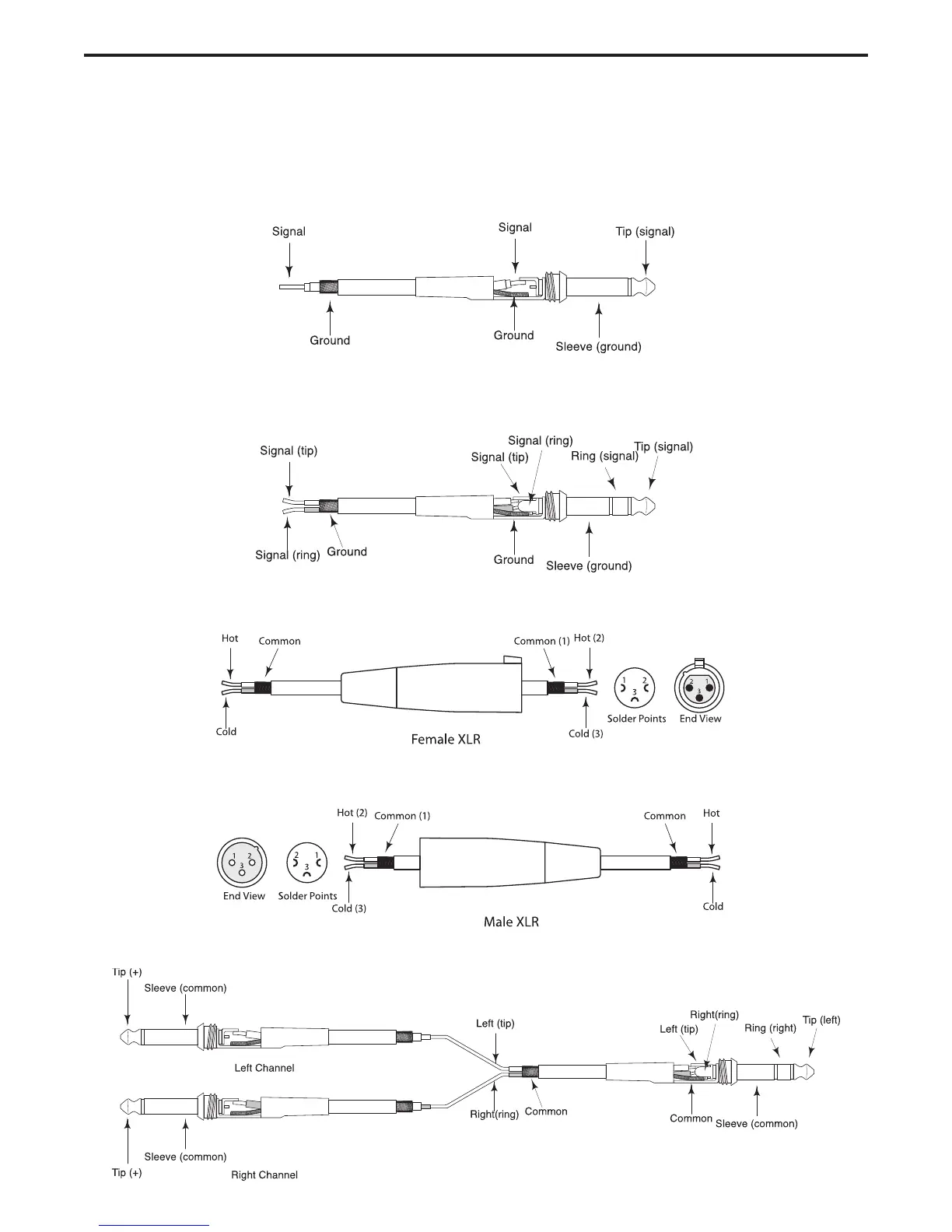

TXM16 and TXM20 Wiring Guide
Unbalanced 1/4” Connector
XLR Balanced Wiring Guide
CONNECTING THE TXM16 and TXM20
There are several ways to interface the TXM16 and TXM20 to support a variety of applications. The TXM16 and TXM20
feature balanced inputs and outputs, so connecting balanced and unbalanced signals is possible.
Balanced TRS 1/4” Connector
1/4” Insert Cable

Other manuals for Samson TXM20

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Samson TXM20 and is the answer not in the manual?

Samson TXM20 Specifications

General IconGeneral
TypeAnalog
Channels20
EQ Bands3-band
EQYes
Aux Sends4
Phantom PowerYes
Outputs - Main2 x XLR, 2 x 1/4"
Line Inputs20
Outputs - Aux4 x 1/4" TRS
Faders60mm Faders
Power SupplyInternal
