XML POWERED MIXERS
Controls and Functions

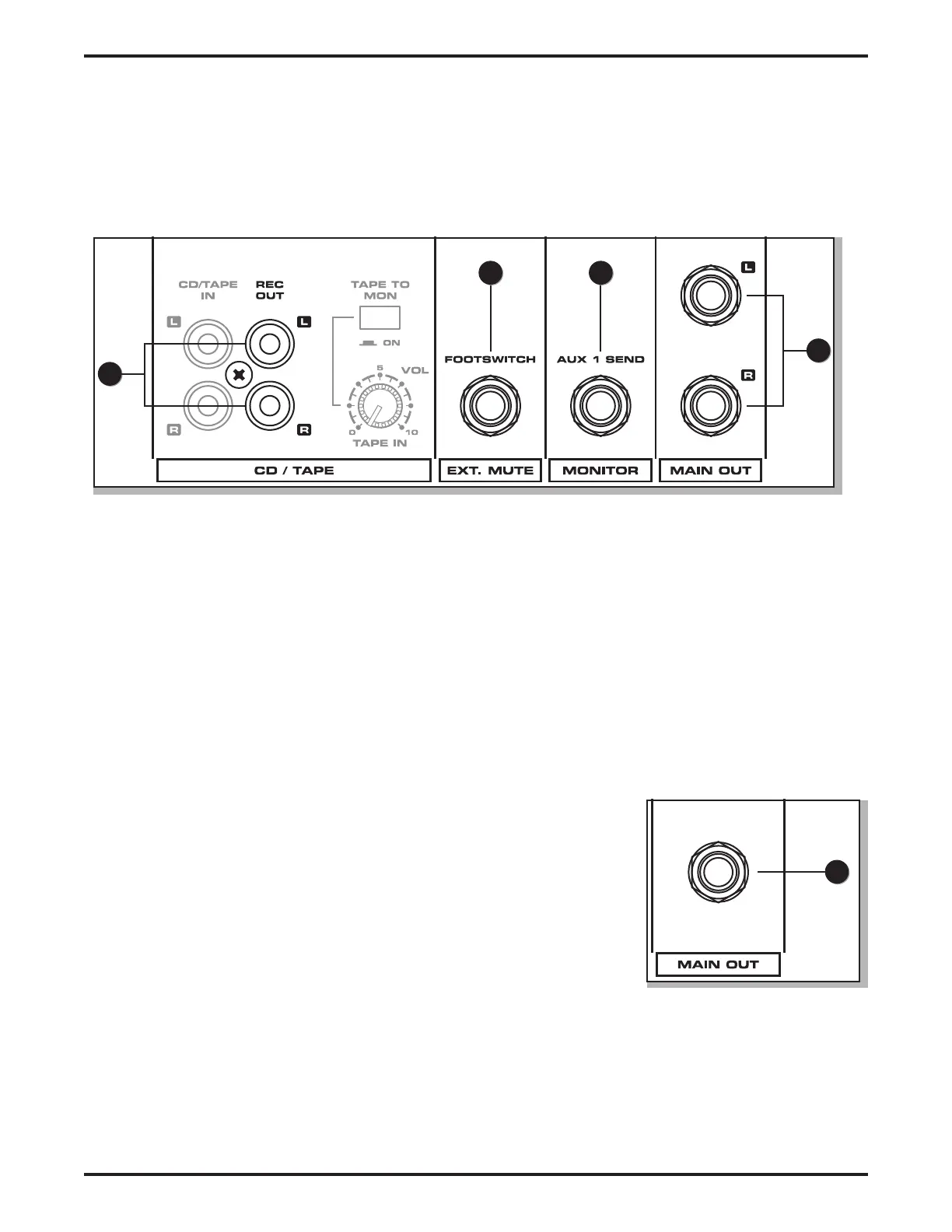

External Output Jacks
The XML mixers feature several output connectors allowing you to interface a variety of external devices. A stereo record-
ing device, such as a cassette recorder, can be connected to the REC OUT jacks, and additional power ampliers can be
connected to the MONITOR and MAIN output jacks.
33. REC OUT - The signal present at this stereo RCA connector is the MAIN bus signal before it has passed through the
MASTER level control and graphic equalizer. The nominal output level is -10dBV and the impedance is 100 Ohms.
34. EXT. MUTE (XML610 and XML910 Only) - Connect a footswitch to the EXT. MUTE phone input jack to turn o chan-
nels 1-8. This feature is convenient when connecting a microphone to CH 9/10 or 11/12 for making announcements
and to use a footswitch to temporarily mute the music or input signals to CH 1-8.
35. MONITOR - The MONITOR bus signal is present at this connector. The signal is passed through the MONITOR/MASTER
level control and graphic equalizer (XML610 and XML910) before it reaches the MONITOR connector. In a live sound
situation this can be used to create a monitor mix by connecting the MONITOR output to a power amp and monitor
speaker.
36. MAIN OUT (XML610 & XML910 Only) - The signals present at these connectors are the MAIN Left and Right bus sig-
nals, which have passed through the MAIN/MASTER level control and the graphic equalizer. The nominal output level
is +4dBu and the impedance is 100 Ohms.
37. MAIN OUT (XML410 Only) - The signal present at this connector are the MAIN
bus signal, which have passed through the MAIN/ MASTER level control and the
graphic equalizer. The nominal output level is +4dBu and the impedance is 100K
Ohms.
37
36
3534
33
