Speaker Outputs - XML410
The XML410 contains two mono power ampliers, and depending on the operating mode, the two ampliers can be
used independently (maximum output 200W + 200W) or in BRIDGE mode (maximum output 400W).
NOTE: Use the front panel Power Amp MODE switch to select which signal is sent to the speaker output jacks, and to
activate BRIDGE mode.
If the two power ampliers are used for MAINS operation, two 8 Ohm speakers can be “daisy-chained” together and con-
nected to the AMP 1 jack, and two more 8 Ohm speakers can be “daisy-chained” together and connected to the AMP 2
jack, for a total of four speakers.
The total impedance load for each amplier must not exceed 4 Ohms. Therefore, in the example above, two speakers with
an impedance of 8 Ohms each are connected to each amp’s output jacks.
If you wish to use two ampliers independently, let’s say for Main and Monitor operation, use a 4–8 Ohm speaker. Again,
the total impedance load for each amplier must not exceed 4 Ohms. Therefore, two speakers with an impedance of 8
Ohms can be “daisy-chained” together and then connected to each amp’s output jacks.
If two ampliers are used in a BRIDGE mode, only one speaker can be connected to the BRIDGE jack. The total impedance
load while operating in BRIDGE mode must not be less than 8 Ohms. If you are connecting a speaker to the BRIDGE jack,
use an 8–16 Ohm speaker.
CAUTION: When using a BRIDGE connection, do not connect anything to the AMP 1 and AMP 2 jacks. Likewise, when us-
ing the AMP 1 and AMP 2 jacks, do not connect anything to the BRIDGE jack.

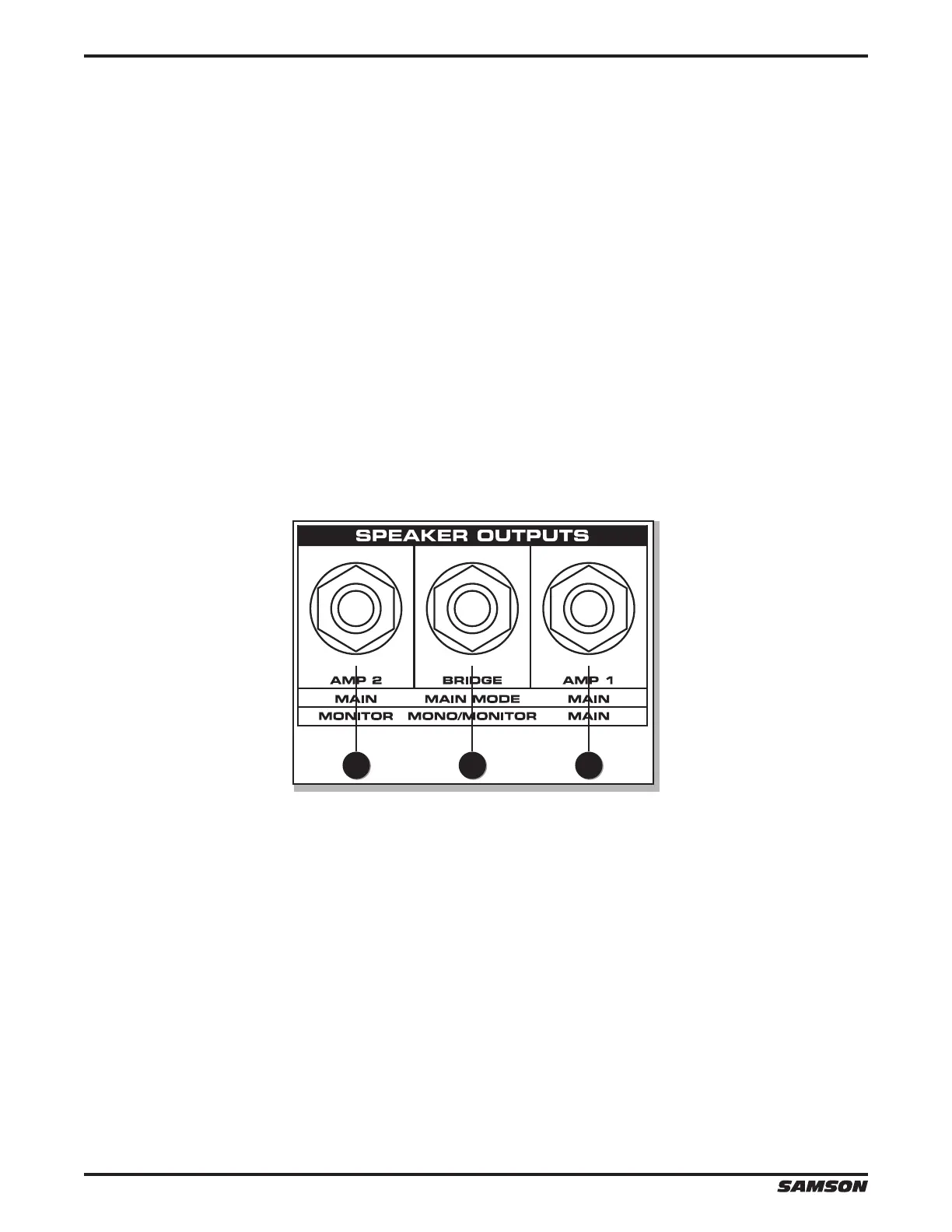

44. AMP 1 Speaker Outputs - The AMP 1 output has one 1/4” phone connector, which is a powered output used to con-
nect your main PA speaker when using the XML410 in MAIN/MAIN mode. When operating in MAIN/MONITOR mode,
the AMP 1 powered output connectors are used to connect left and right side MAIN PA speakers.
45. AMP 2 Speaker Outputs - The AMP 2 output has one 1/4” phone connector, which is a powered output used to con-
nect your main PA speaker when using the XML410 in MAIN/MAIN mode. When operating in MAIN/MONITOR mode,
the AMP 2 powered output connectors are used to connect to oor or side ll monitors facing the performers.
46. BRIDGE Output connector - The BRIDGE output has one 1/4” phone connector, which is a powered output used to
connect one main PA speaker when using the XM410 in BRIDGE mode.
