Connecting the Bathroom Speakers
¦ HP-ID
An additionally created Headphone Box can be installed on a bed or business desk so that users can use it conveniently. The
installation procedures are described below.

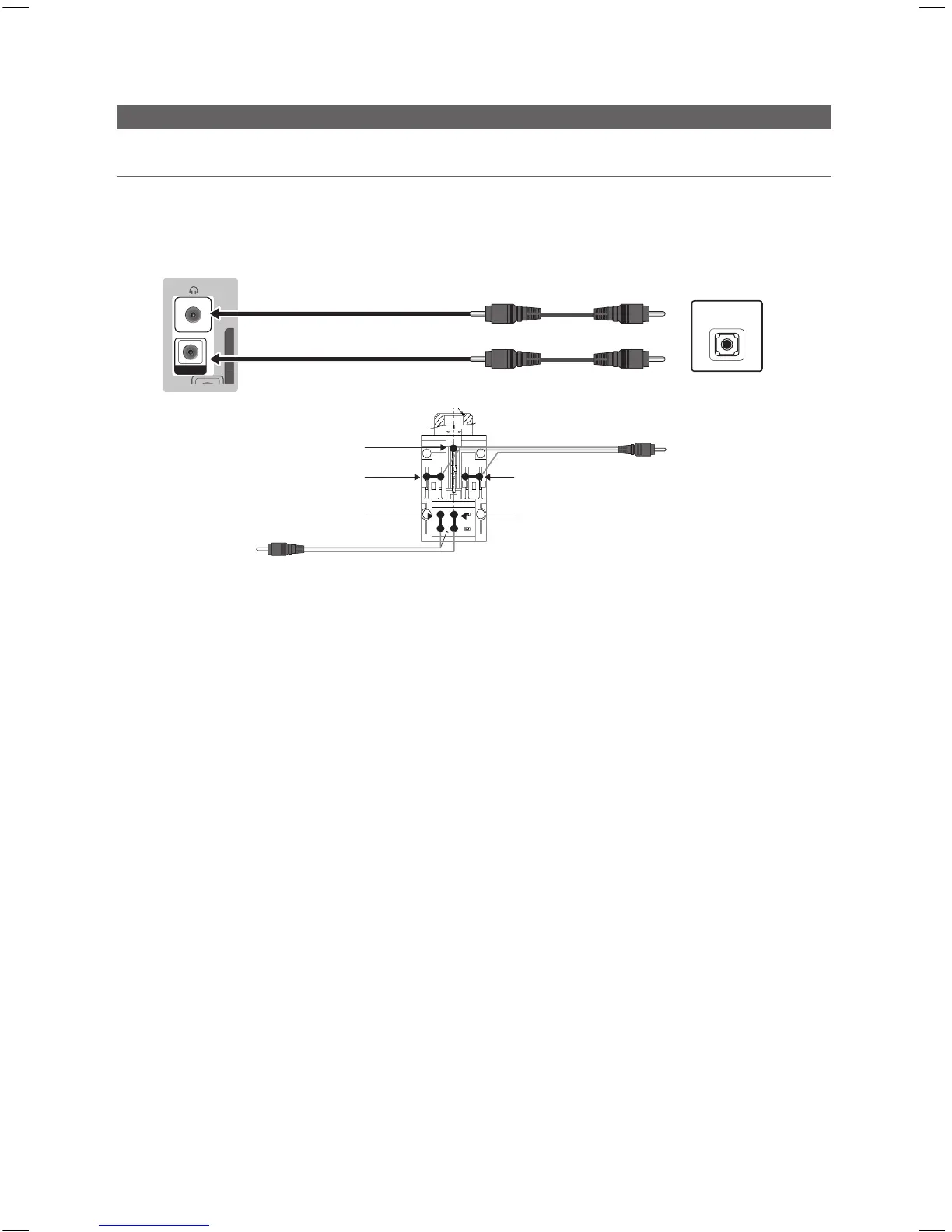

y Detailed Drawing of the Headphone Box.
EX
T
HP-ID
E
X
T
HEADPHON BOX
TV Rear Panel
Headphone Box
TV Headphones jack
White wire (Audio-L)
Shield Wire
TV HP-ID jack
Red wire + White wire
Red Wire (Audio-R)
Shield wire
