Samsung 920NW - SyncMaster - 19" LCD Monitor Service Manual

3 Alignments and Adjustments
3-5

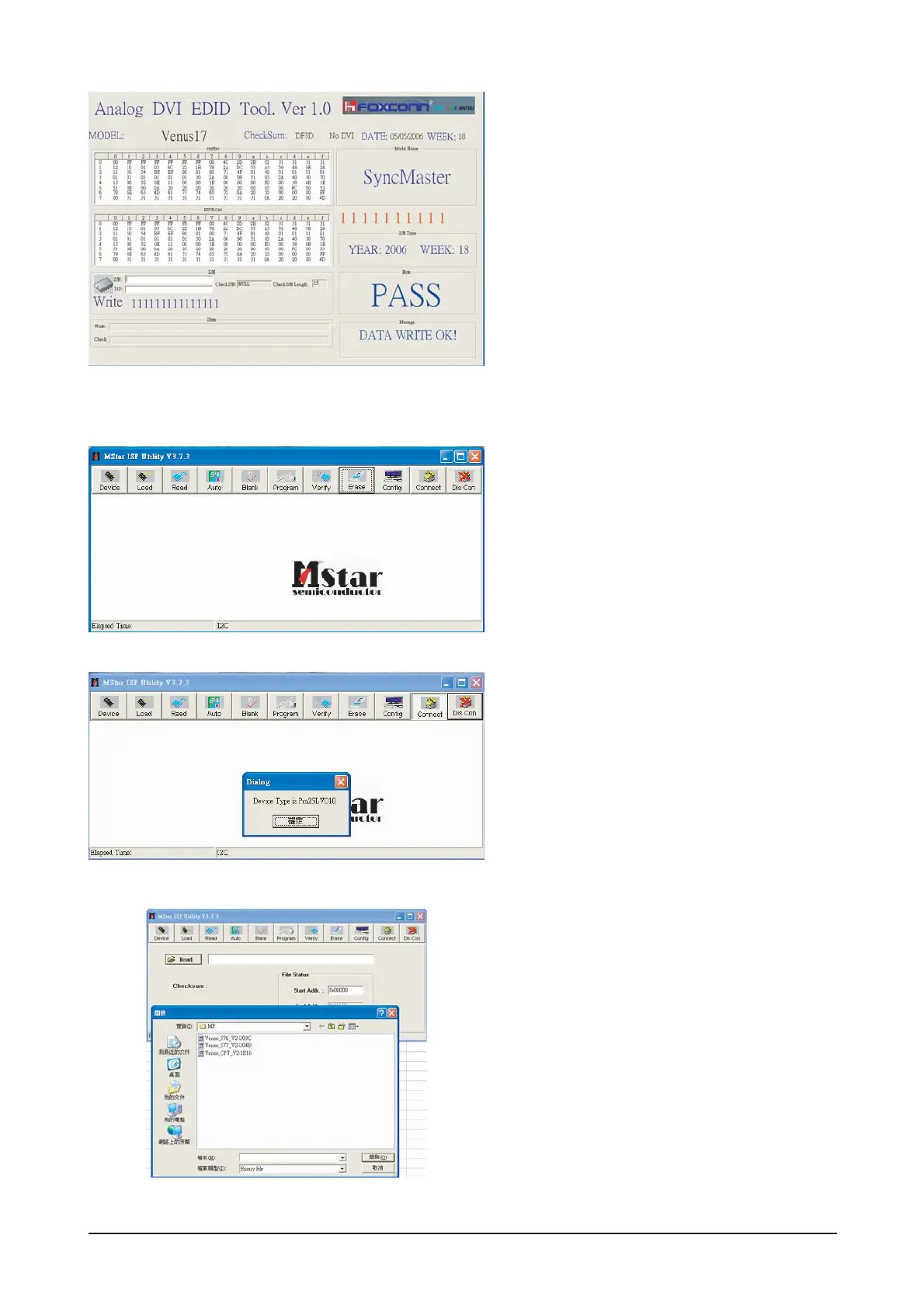

6. Write DDC ok.
1. Set the options.
-. Manufacture: MSTAR
-. Device Type: TSUM16_ROM128K_ext_flash
-. Communication Port: DSUB15 (Analog)
-. External Memory: PM25LV010E
2. Click 'Connect File' button, and select the
MCU code.
3. Click 'Read File' button, and select the MCU
code.
3-5 How to execute MCU Code

Samsung 920NW - SyncMaster - 19" LCD Monitor Specifications

General

Screen Size	19 inches
Resolution	1440 x 900
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	700:1
Response Time	5 ms
Viewing Angle (Horizontal/Vertical)	160°/160°
Display Type	LCD
Pixel Pitch	0.285 mm
Color Support	16.7 million colors
Horizontal Refresh Rate	30-81 kHz
Vertical Refresh Rate	56-75 Hz
Input Connectors	VGA (D-Sub)
Weight	4.5 kg (with stand)
