Samsung 920NW - SyncMaster - 19" LCD Monitor Service Manual

1. When the AD board is in DPMS state:
1.1 The IP has been designed so that it operates with a power consumption of less than 0.6W of.
1.2 The Scaler consumes power up to 37mA
1.3 The power to the panel is switched off
2. When the AD board is operating normally:
2.1 The maximum power consumption of the panel lamps is described below (It may vary depending on
the panel manufacturer)
17" : 4*(7.0mA*650Vrms)=4* 4.55W=18.2W
2.2 The power consumption of the Panel Control board is as follows: 5V*645mA=3.23W
2.3 The power consumption of the Scaler is as follows: 3.3V*204mA + 1.8V*145mA = 0.93W
13 Circuit Descriptions
13-1
13 Circuit Descriptions
13-1 Overall Block Structure

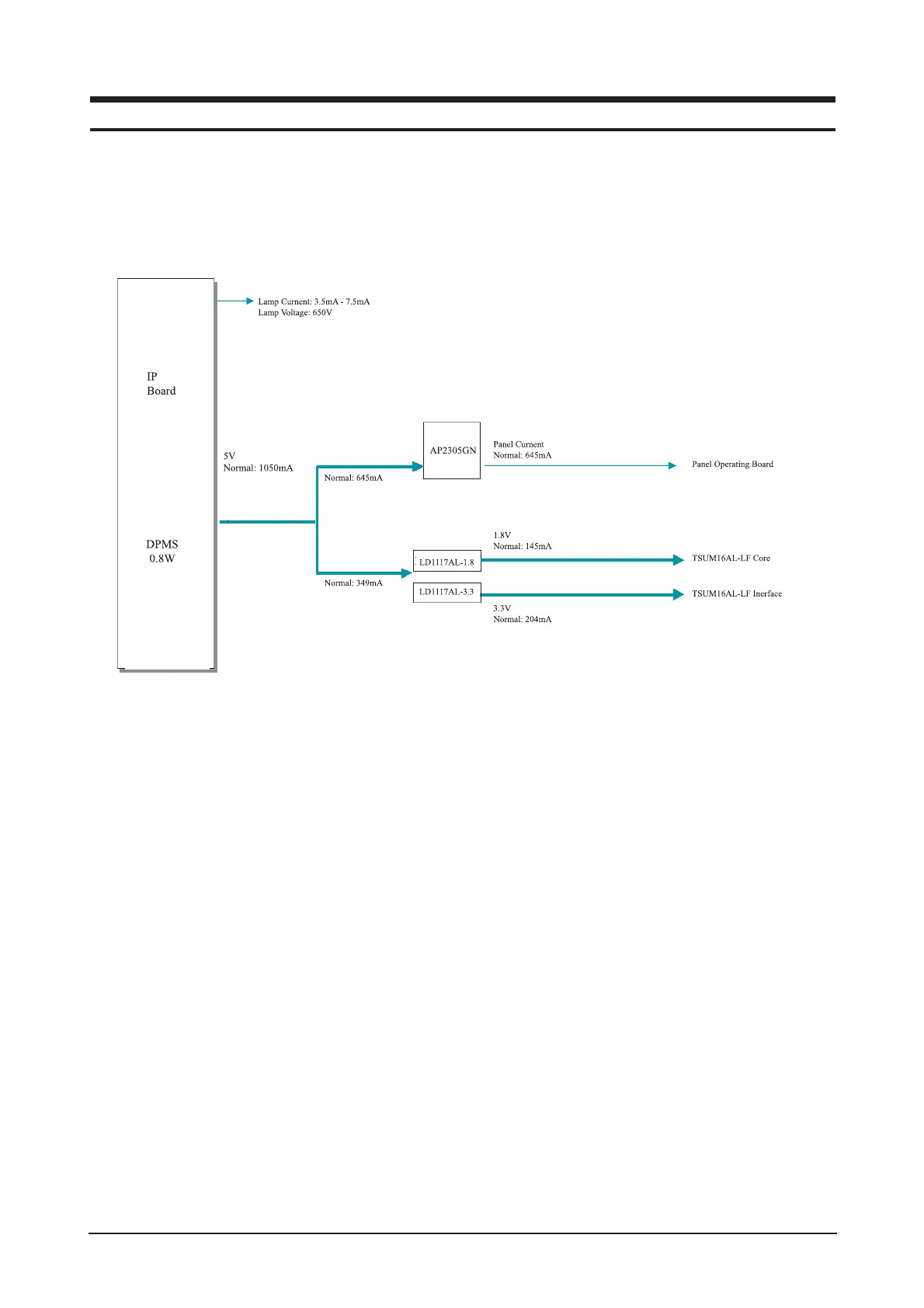

13-1-1 Power Tree

Samsung 920NW - SyncMaster - 19" LCD Monitor Specifications

General

Screen Size	19 inches
Resolution	1440 x 900
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	700:1
Response Time	5 ms
Viewing Angle (Horizontal/Vertical)	160°/160°
Display Type	LCD
Pixel Pitch	0.285 mm
Color Support	16.7 million colors
Horizontal Refresh Rate	30-81 kHz
Vertical Refresh Rate	56-75 Hz
Input Connectors	VGA (D-Sub)
Weight	4.5 kg (with stand)
