Samsung 920NW - SyncMaster - 19" LCD Monitor Service Manual

10 Operating Instructions and Installation
10-5
A. Monitor
B. Mounting interface pad
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

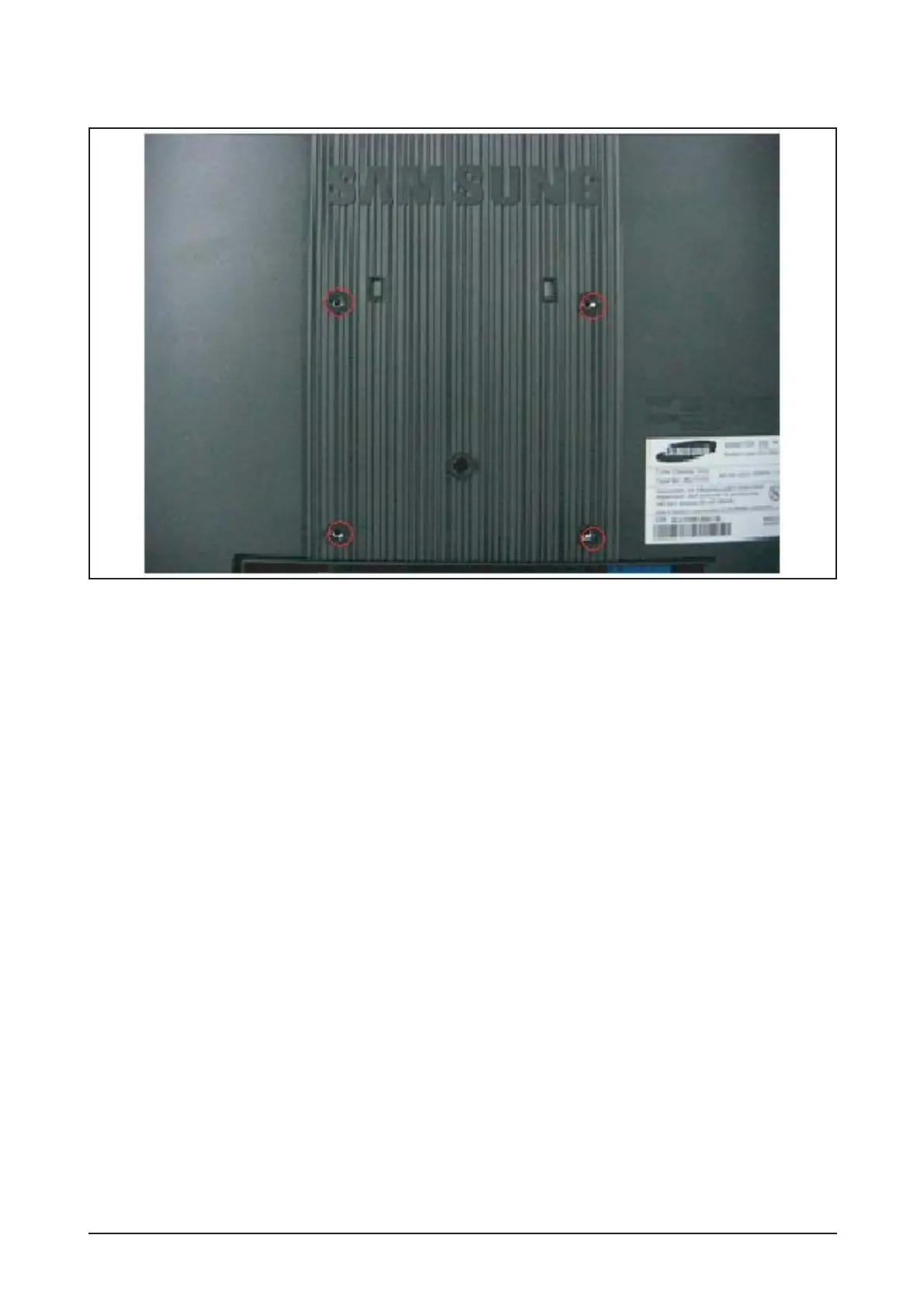

3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface Pad with the holes in the rear cover mounting pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
10-5 Attaching a Base

Samsung 920NW - SyncMaster - 19" LCD Monitor Specifications

General

Screen Size	19 inches
Resolution	1440 x 900
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	700:1
Response Time	5 ms
Viewing Angle (Horizontal/Vertical)	160°/160°
Display Type	LCD
Pixel Pitch	0.285 mm
Color Support	16.7 million colors
Horizontal Refresh Rate	30-81 kHz
Vertical Refresh Rate	56-75 Hz
Input Connectors	VGA (D-Sub)
Weight	4.5 kg (with stand)
