Samsung 920NW - SyncMaster - 19" LCD Monitor Service Manual

3 Alignments and Adjustments
3-4

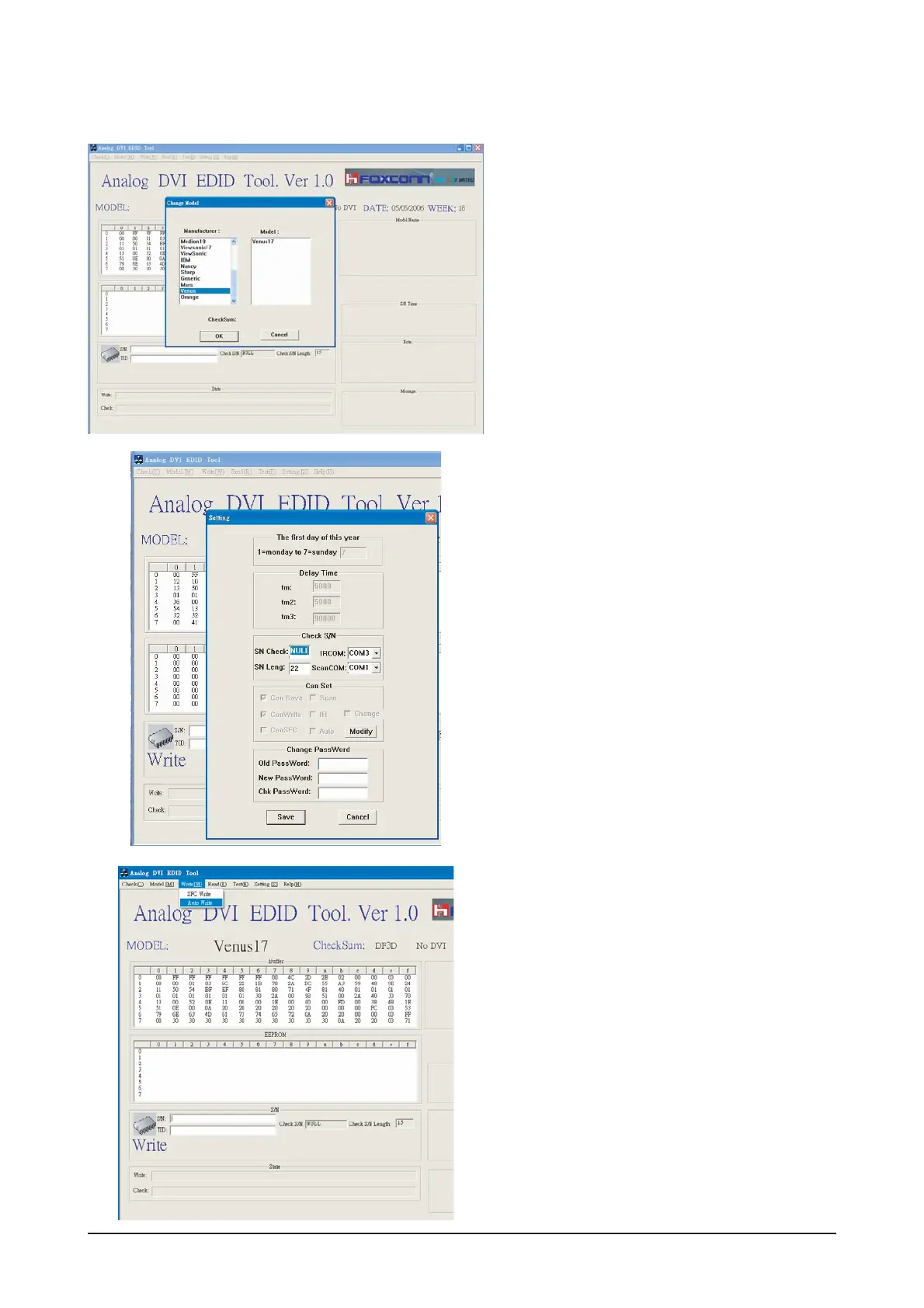

3-5 How to execute DDC
1. Install Analog DVI EDID Tool Program
2. Click the Analog DVI EDID Tool icon.
3. Select mode The password is 1234.
Select the manufacture is Venus and the model
name is Venus 17.
4.Setting
The password is 1234.
Select the port1and the SN Leng is 22.
Save the change.
5. Select Write-Auto Write
The SN number is a 22 random numbers.

Samsung 920NW - SyncMaster - 19" LCD Monitor Specifications

General

Screen Size	19 inches
Resolution	1440 x 900
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	700:1
Response Time	5 ms
Viewing Angle (Horizontal/Vertical)	160°/160°
Display Type	LCD
Pixel Pitch	0.285 mm
Color Support	16.7 million colors
Horizontal Refresh Rate	30-81 kHz
Vertical Refresh Rate	56-75 Hz
Input Connectors	VGA (D-Sub)
Weight	4.5 kg (with stand)
