Samsung AC024BXUPCH - Comprehensive Product Specifications

Samsung Electronics 2-3

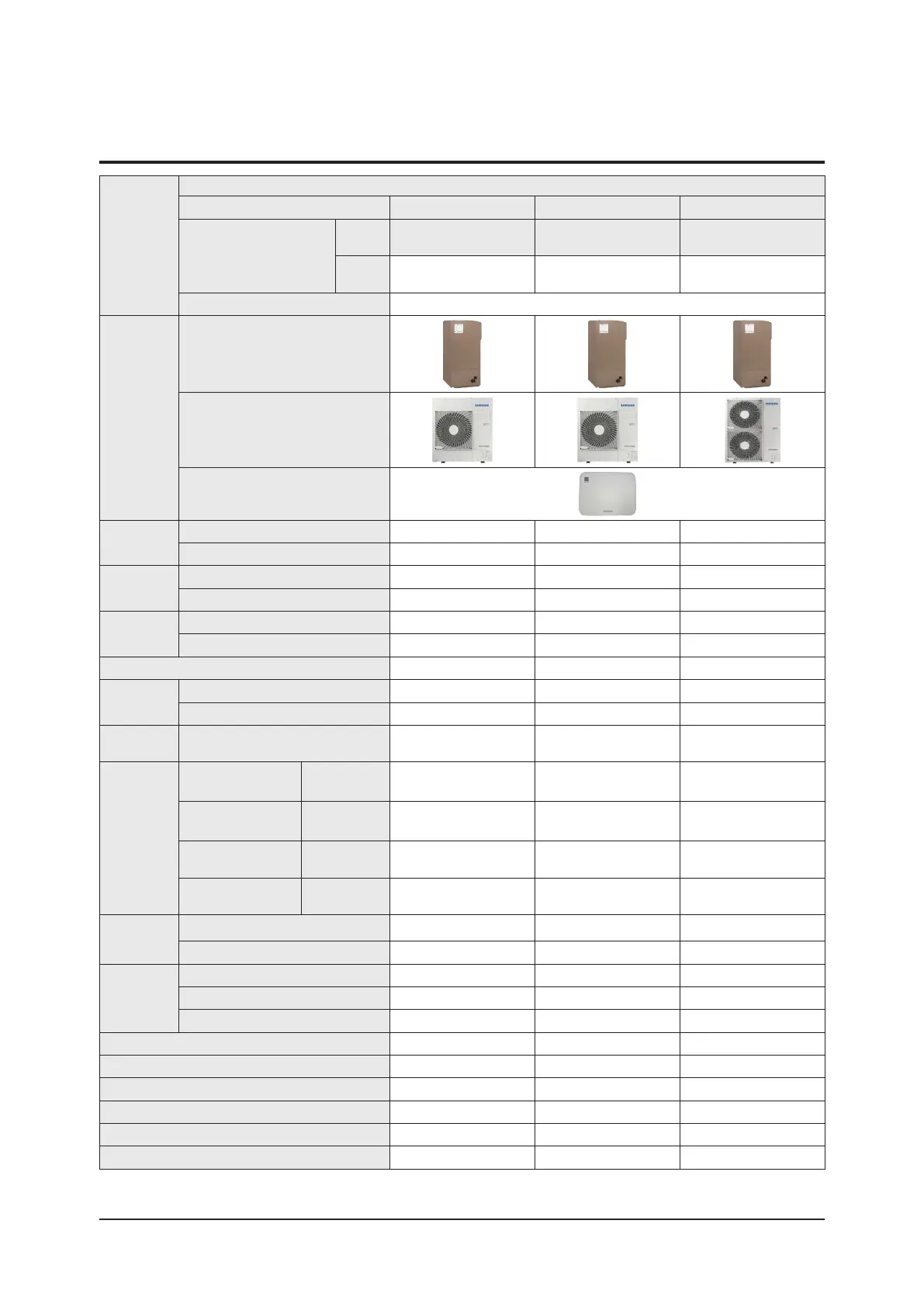

2-2. Product Specifications
Item
ADP® MPAHU + Unitary Outdoor Unit + AHU Control Unit
ADP® Indoor Unit AVT240BT AV360CT AV360CT
Outdoor Unit
Simple
US code
CXH024UPB CXH036UDB CXH036UPB
Model
Code
AC024BXUPCH AC036BXUDCH AC036BXUPCH
AHU Control Unit MXD-U000XN
Design
Indoor Unit
Outdoor Unit
AHU Control Unit
Performance
Cooling [Btu/h] 24,000 36,000 36,000
Heating [Btu/h] 26,000 34,600 34,600
Power
Consumption
Cooling [kW] 0.91/2.38/3.15 1.05/4.00/4.50 0.98/3.43/4.10
Heating [kW] 0.72/2.44/5.40 0.83/3.19/5.40 0.85/3.36/5.40
Efficinecy
SEER2 16.5 17.0 18.5
HSPF2 8.1 8.1 8.4
Voltage / Frequency (Φ, V, Hz) 1,208-230,60 1,208-230,60 1,208-230,60
Operating
Current
Cooling [A] 5.7/11.3/16.2 5.8/18.0/20.0 5.4/15.6/18.2
Heating [A] 4.5/11.5/24.0 4.6/14.5/24.0 4.7/15.1/24
Sound
Pressure
Outdoor Unit [dBA] (C/H) 50/52 53/55 52/54
External
Dimension
Net Dimension
(WxHxD)
Outdoor Unit
[mm(inch)]
940 x 998 x 330
(37.01 x 39.29 x 12.99)
940 x 998 x 330
(37.01 x 39.29 x 12.99)
940 x 1,210 x 330
(37.01 x 47.64 x 12.99)
Shipping Dimension
(WxHxD)
Outdoor Unit
[mm(inch)]
995 x 1,096 x 426
(39.17 x 43.15 x 16.77)
995 x 1,096 x 426
(39.17 x 43.15 x 16.77)
995 x 1,388 x 426
(39.17 x 54.65 x 16.77)
Net Weight
Outdoor Unit
[kg(lbs)]
74.0(163.14) 78.0(178.96) 89.0(196.21)
Gross Weight
Outdoor Unit
[kg(lbs)]
79.0(174.17) 83.0(182.98) 99.0(218.26)
Harness
Specifications
Compressor UG8T300FUBJUSG UG5TK1450FJXSG UG5TK1450FJXSG
Outdoor Fan Motor DB31-00579A DB31-00579A DB31-00579A
Piping
Connections
Liquid pipe [mm(inch)] 9.52(3/8") 9.52(3/8") 9.52(3/8")
Gas pipe [mm(inch)] 19.05(3/4") 19.05(3/4") 22.23(7/8")
Allowable Gas pipe [mm(inch)] 15.88(5/8") ~ 22.23(7/8") 15.88(5/8") ~ 22.23(7/8") 19.05(3/4") ~ 22.58(1-1/8")
Refrigerant Type R-410A R-410A R-410A
Factory Charging [kg(lbs)] 3.2(7.06) 3.6( 7.94) 4.2(9.26)
Additional Refrigerant (over 24.6ft(7.5m)) [oz/ft] 0.5 0.5 0.5
Basic Piping Length [ft(m)] 24.6(7.5) 24.6(7.5) 24.6(7.5)
Max. Piping Length [ft(m)] 98(30) 164(50) 164(50)
Max. Level Difference [ft(m)]
49(15) 98(30) 98(30)
