Samsung AE120JXYDEH/EU User Manual

17
Master
Slave

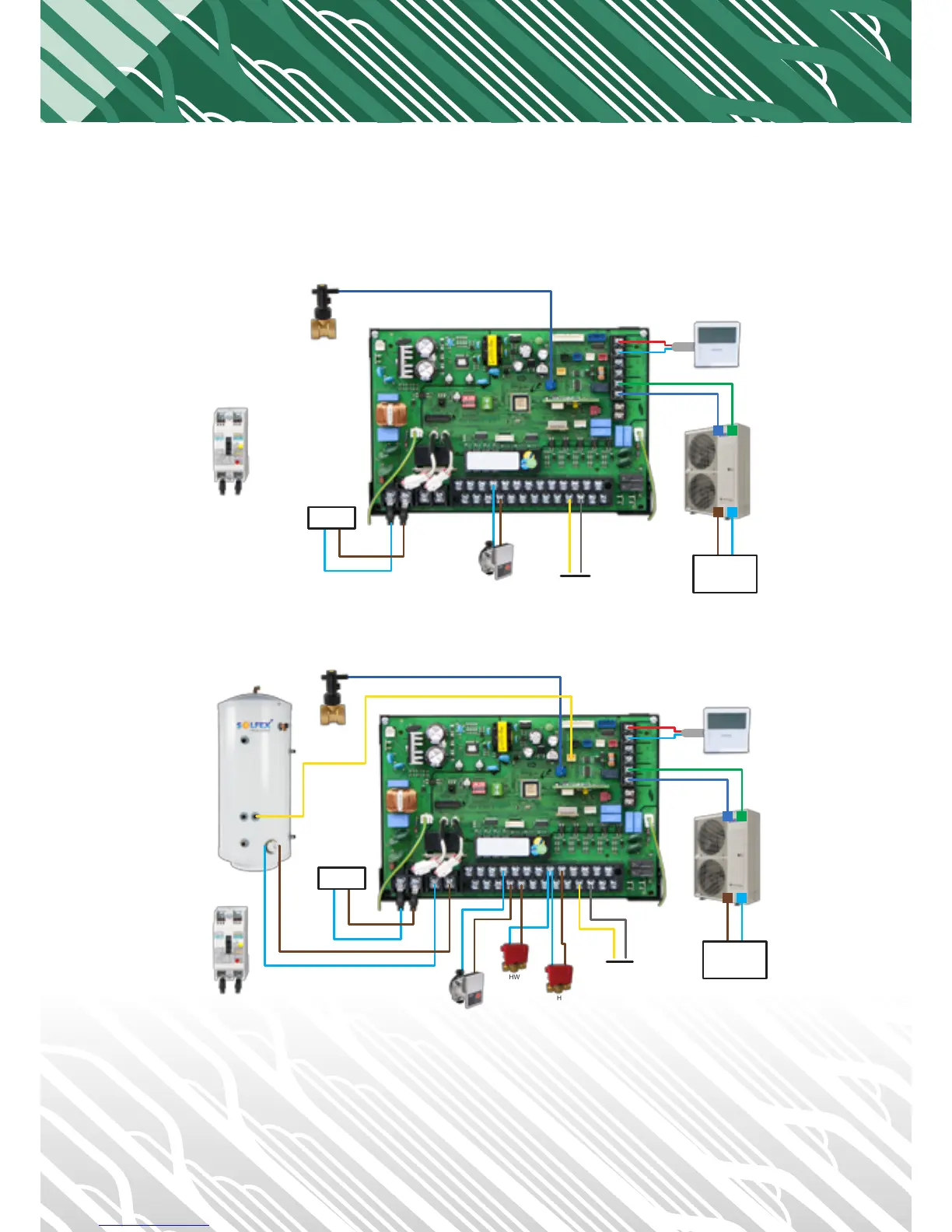

Multiple Heat Pumps, Heat & H/W Wiring
Diagram
• CirculationPumpIswiredtoB8(Live),Neutral(B7),Maximumpumppoweris500W
• DHW2portvalve-B17isBrownandB15isBlue
• Heating2Portvalve-B18isBrownandB15isBlue.
• TheotherOrangeandGreywiresarenotneededforeithertheDHWorheating2ports.
The heating run signal connects to B22, you can run both units at once by linking B22 on both control boards, alternatively you can operate each unit
independently i.e. one for upstairs and one for downstairs.
• B20ispermanently240VAC,B19isNeutral
Power Input
16A
Remove
MCB from unit
2m Flow Switch Cable,
Can be extended
Run Signal
Pump HP
F1 F2
L N
Communications
Cable
2 core, 1mm, 16Vdc
240V Power Supply
5kW unit - 16A
9kW unit - 20A
16kW unit - 32A
Power Input
16A
Remove
MCB from unit
2m Flow Switch Cable,
Can be extended
Pump S
H
HW
15m Tank Sensor,
Don’t shorten
F1 F2
L N
Communications
Cable
2 core, 1mm, 16Vdc
240V Power Supply
5kW unit - 16A
9kW unit - 20A
16kW unit - 32A
Run Signal
