Samsung AE120JXYDEH/EU User Manual

21

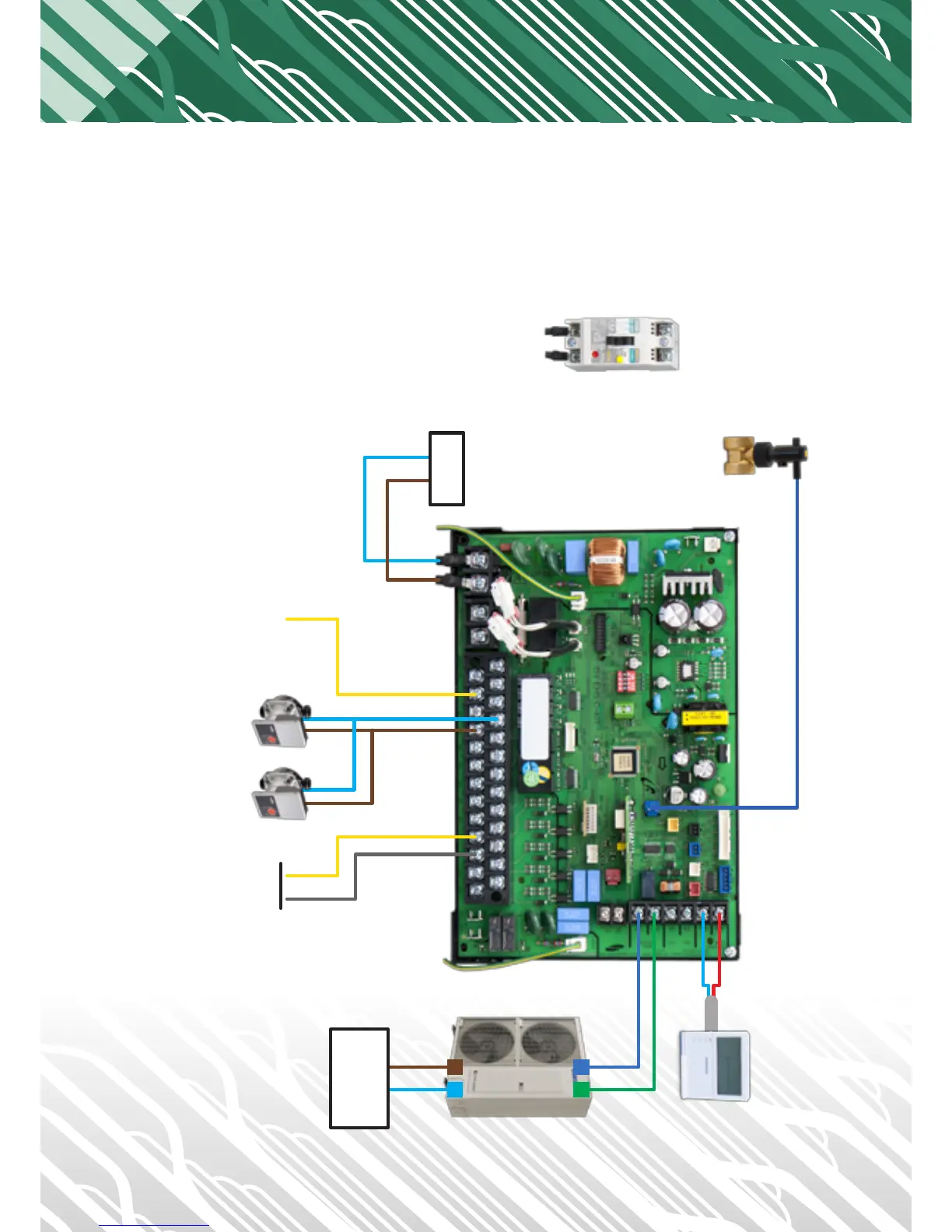

Heating Only Hybrid Wiring Diagram
• Thepumps1&2arewiredintoB8(Live)andB7(Neutral),Maximumpumppoweris500W. • TherunsignalfortheheatpumpgoesintoB20&B22. • TherunsignalfortheboilerisB4.
Power Input
3A
Remove
MCB from unit
2m Flow Switch Cable,
Can be extended
Run Signal from
Relay Terminal 4 & 6
Run Signal to
Relay Terminal 5
HP1
HP2
F1 F2
L N
Communications
Cable
2 core, 1mm, 16Vdc
240V Power Supply
5kW unit - 16A 9kW unit - 20A
16kW unit - 32A

Samsung AE120JXYDEH/EU Specifications

General

Brand	Samsung
Model	AE120JXYDEH/EU
Category	Heat Pump
Language	English
