ENGLISH-12

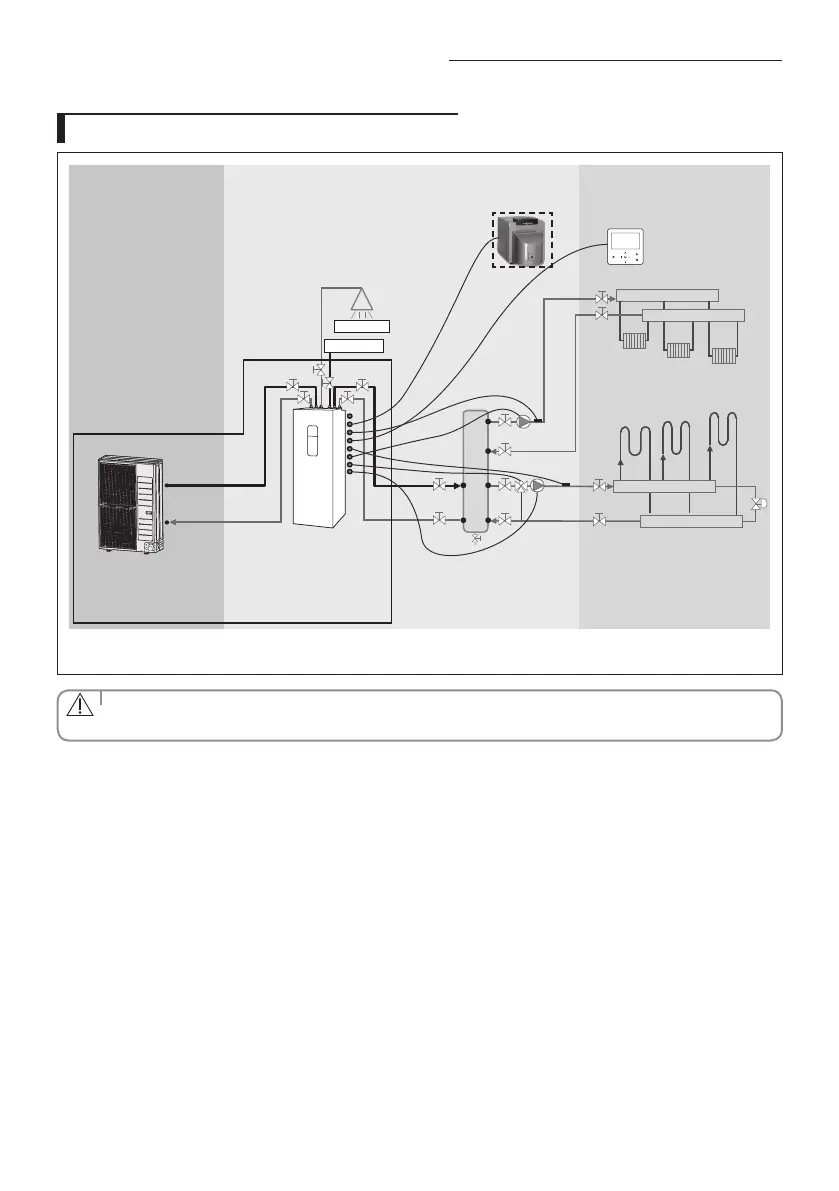

Typical application examples
Application 2: Hybrid application(backup boiler)
Outdoor unit
[ Supply Scope ]
Tank Integrated Hydro Unit
Balancing Vessel
*)
Back up Boiler Operation
Room Controller
Zone Control
Supply Header
Return Header
Supply Header
Return Header
Under-Floor Heating Coils
Radiators or Convectors
45°C
35°C
Water
pump #2
Water
pump #1
Outdoor Indoor Mechanical Room
Tw2_z1
Tw2_z2
Cold Water
Hot Water
* We control only the on / o signal of backup boiler according to outdoor temperature.
Backup boiler should be installed with own device according to the eld condition.
Samsung has not responsible for performance and stability of backup boiler.
Water quality must be according to EN directive 98/83 EC.
CAUTION
