ENGLISH-54
DHW tank

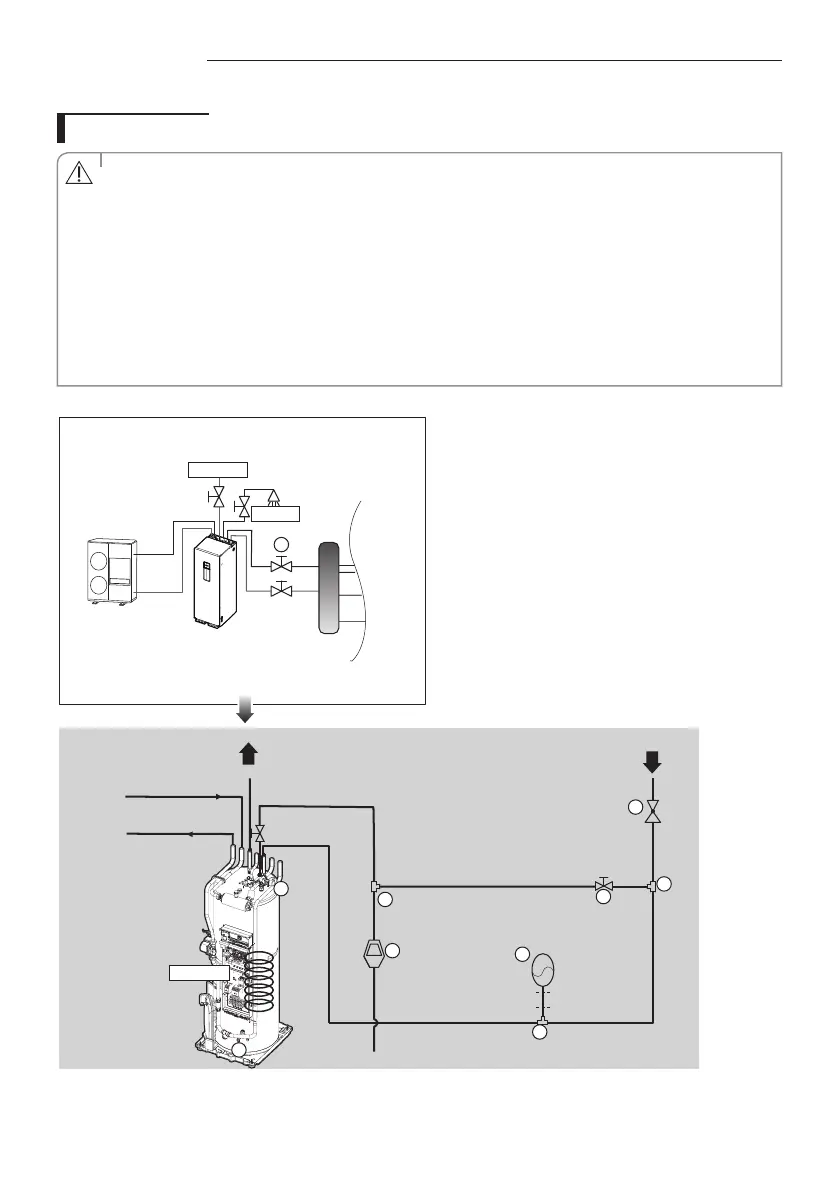

Piping diagram
• The product must be installed without any water leakage.
• Please verify that the DHW tank and other components are properly installed and reinstall them if necessary.
- Use certied components and the correct tools.
- Keep adequate space for the installing.
- The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open
to the atmosphere.
- The pressure-relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked.
- How the water heater can be drained.
- A discharge pipe connected to the pressure-relief device is to be installed in a continuously downward
direction and in a frost-free environment.
CAUTION
(
*
)
(
*
)
(
*
)
(
*
)
7
10
6
8
11
5
2
4
3
Sanitary warm water Tank Diagram(Field Scope)
OVERVIEW
WATER MAIN IN
WATER MAIN OUT
TPRV
Tank Temp
Outdoor
unit
Cold water
Hot water
Hydro kit
Balancing Vessel
(Mixing tank)
Heat pump in
Heat pump out
[MONO]
G3-kit
To Next Page
