Temperature sensor work

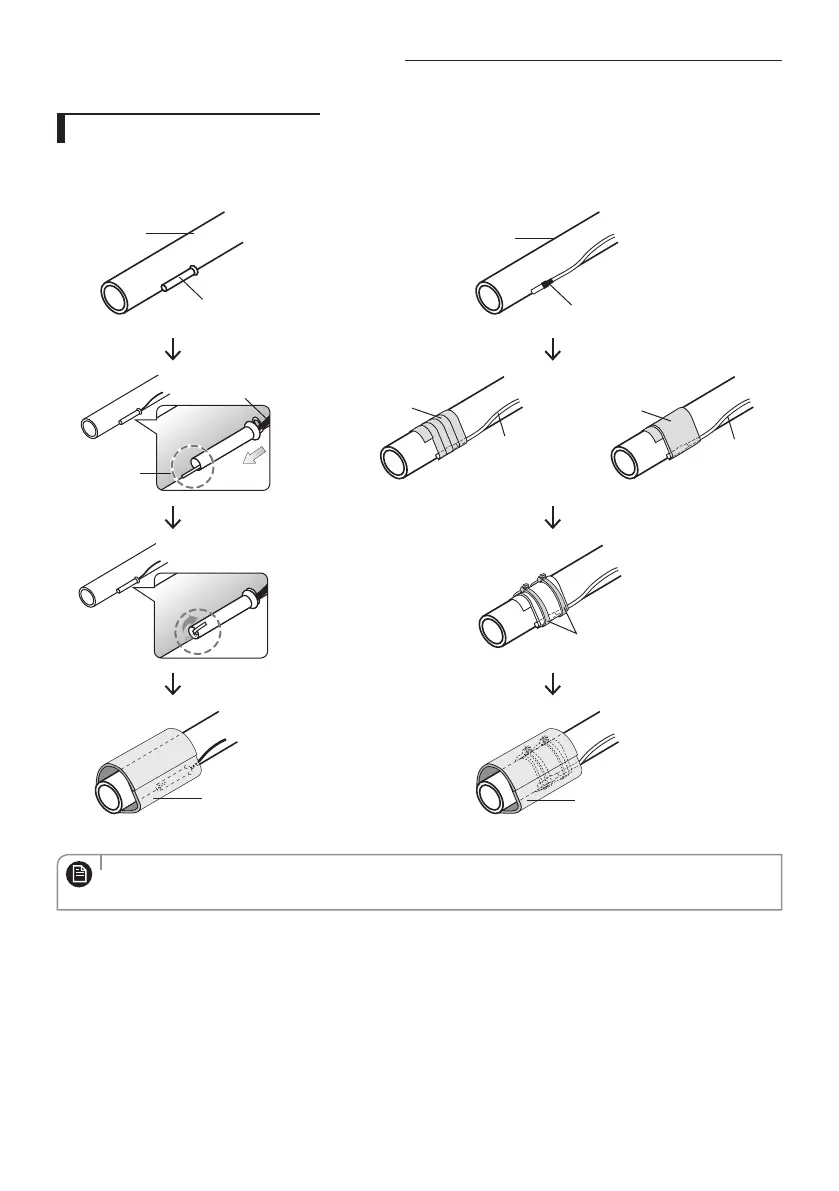

Example of sensor installation
Weld the sensor holder on the selected location of the pipe and then insulate it.
When the pipe is a copper pipe When the pipe is not a copper pipe
Pipe
Sensor
holder
Pipe
Sensor
Sensor clip
Sensor
Aluminum
tape
Sensor
Rubber tape
Sensor
Cable-tie
insulator
insulator
• When the holder sensor cannot be welded on the pipe, x the senor with aluminum tape and insulate it.
