Self-test mode of wired remote controller
Use of self-test mode
0
Please enter your PASSWORD
Service mode
Service mode
Reset All Service Mode
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option

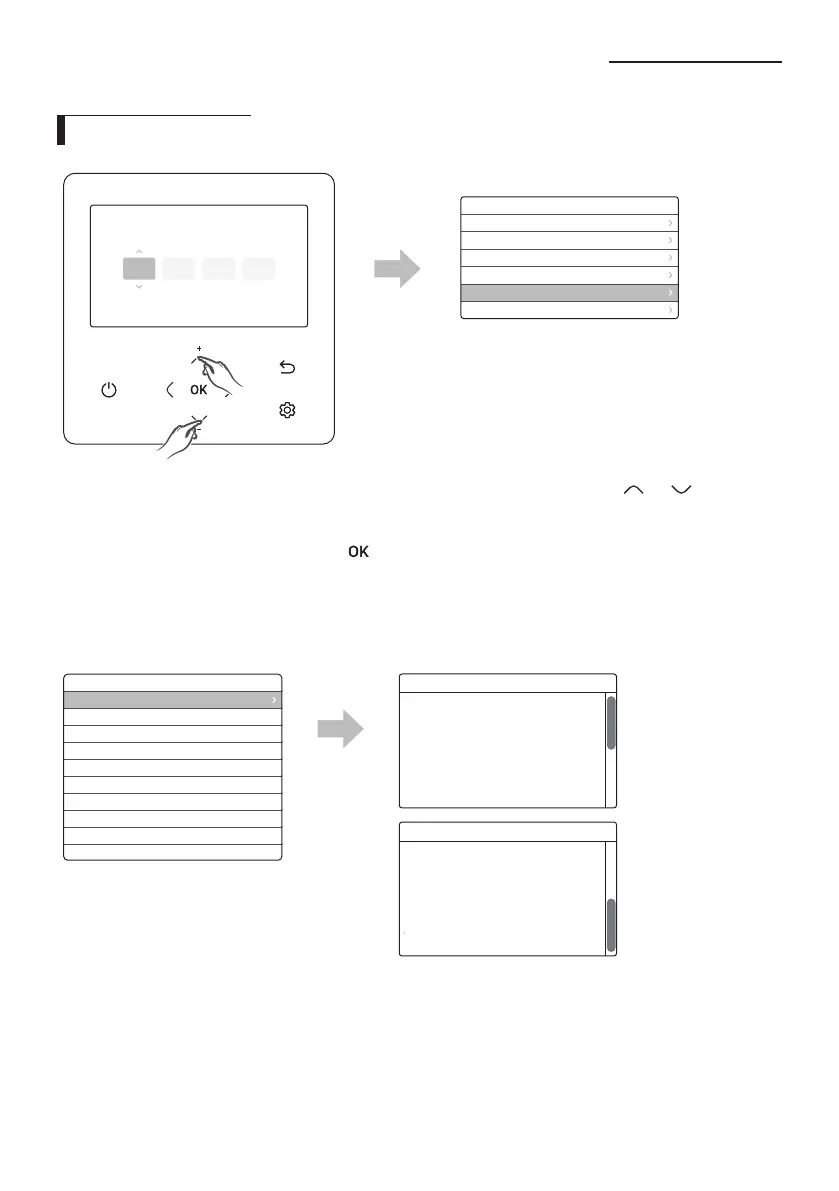

1. If you want to use the various additional functions for your Wired Remote Controller, press the and buttons at the
same time for more than 3 seconds.
 The password entry screen appears.
2. Enter the password, “0202,” and then press the button.
 The settings screen for installation/service mode appears.
3. Select Self-Test Mode in Service Mode.
4. Self-Test Mode consists of Self-Test Display that shows operation value satus and menus that can turn each component
on or o.
Self-Test Mode
Self-Test Mode Display
Water Pump
Booster Heater
DHW Valve (3 Way valve)
Zone#1 Valve
Back Up Heater1 + Water Pump
Back Up Heater2 + Water Pump
Back Up Boiler
Zone#2 Valve
Mixing Valve
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
Self-Tset Mode Display
Water Inlet Temp.: -00.0℃ to 000.0℃
Water Outlet Temp.: -00.0℃ to 000.0℃
Backup Heater Outlet Temp: -00.0℃ to 000.0℃
Mixing valve Outlet Temp.: -00.0℃ to 000.0℃
Tank Temp: -00.0℃ to 000.0℃
Indoor Ambient Temp.: -00.0℃ to 000.0℃
Indoor Ambient Temp. (Zone2): -00.0℃ to 000.0℃
Flow Temp. Sensor #1(Zone1): -00.0℃ to 000.0℃
Flow Temp. Sensor #2(Zone2): -00.0℃ to 000.0℃
Termostat #1(Zone #1): Coo/Heat
Termostat #2(Zone #2): Coo/Heat
Solar Panel On/Off: On/Off
Self-Tset Mode Display
