Samsung AE200RNWSEG Installation Manual

ENGLISH-13
01 PREPARATION

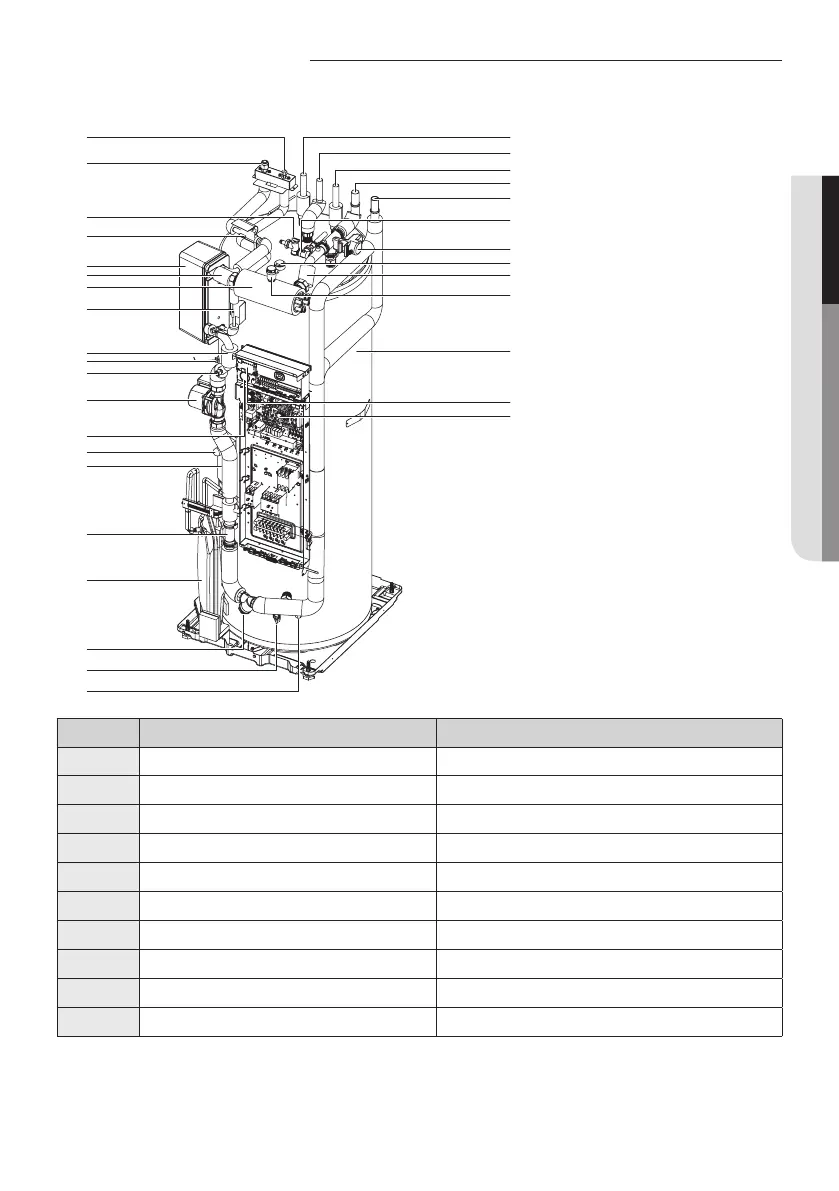

Main components
 Split
①
②
③
④
⑤
⑥
⑦
⑨
⑩
⑪
㉑
⑮
㉓
㉕
㉖
⑧
⑲
⑱
⑳
⑰
⑯
⑭
㉒
㉔
㉗
㉘
㉙
㉚
㉛
㉜
㉝
⑬
⑫
No. Part name Note
①
Refrigerant pipe ø15.88 (5/8"), Flare nut
②
Refrigerant pipe ø6.35 (1/4"), Flare nut
③
Hot water outlet ø22, Straight pipe
④
Secondary return ø22, Straight pipe (260L option)
⑤
Cold water inlet ø22, Straight pipe
⑥
Space heating outlet ø28, Straight pipe
⑦
Space heating inlet ø28, Straight pipe
⑧
T/P valve 7bar, 90 °C
⑨
Pressure relief valve 3bar, BSPP 1/2"
⑩
3way valve
