ENGLISH-15

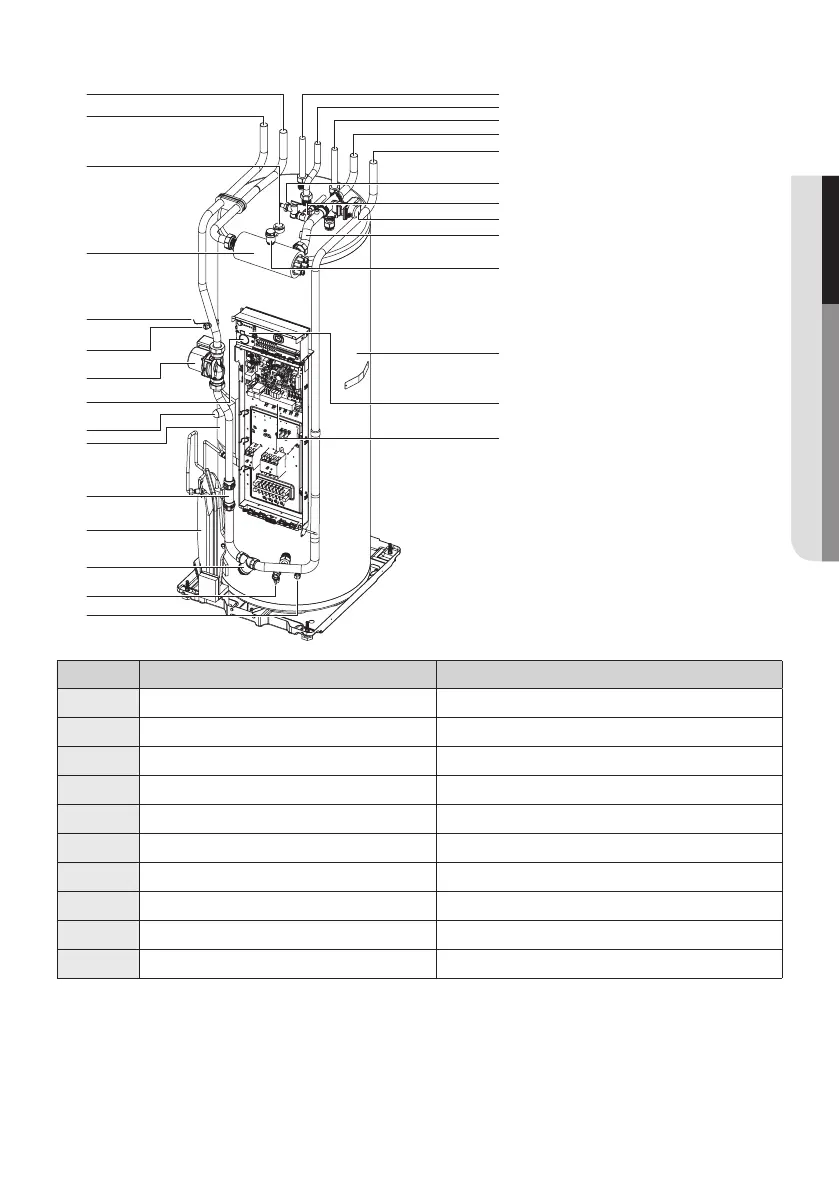

01 PREPARATION
MONO
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑯
⑭
⑱
⑳
㉑
⑪
⑲
⑰
⑫
㉕
㉔
㉓
㉒
㉖
㉗
㉘
⑬
⑮
No. Part name Note
①
Water pipe (Return to heat pump) ø28, Straight pipe
②
Water pipe (Flow from heat pump) ø28, Straight pipe
③
Hot water outlet ø22, Straight pipe
④
Secondary return ø22, Straight pipe (260L option)
⑤
Cold water inlet ø22, Straight pipe
⑥
Space heating outlet ø28, Straight pipe
⑦
Space heating inlet ø28, Straight pipe
⑧
T/P valve 7bar, 90
°C
⑨
Pressure relief valve 3bar, BSPP 1/2"
⑩
3way valve
To Next Page
