Setting the pre-pressure of the expansion vessel
When it is required to change the default pre-pressure of the expansion vessel(1 bar), keep in mind the following guidelines:
 Use only dry nitrogen to set the expansion vessel pre-pressure.
 Inappropriate setting of the expansion vessel pre-pressure will lead to malfunction of the system. Therefore, the pre-
pressure should only be adjusted by a licensed installer.

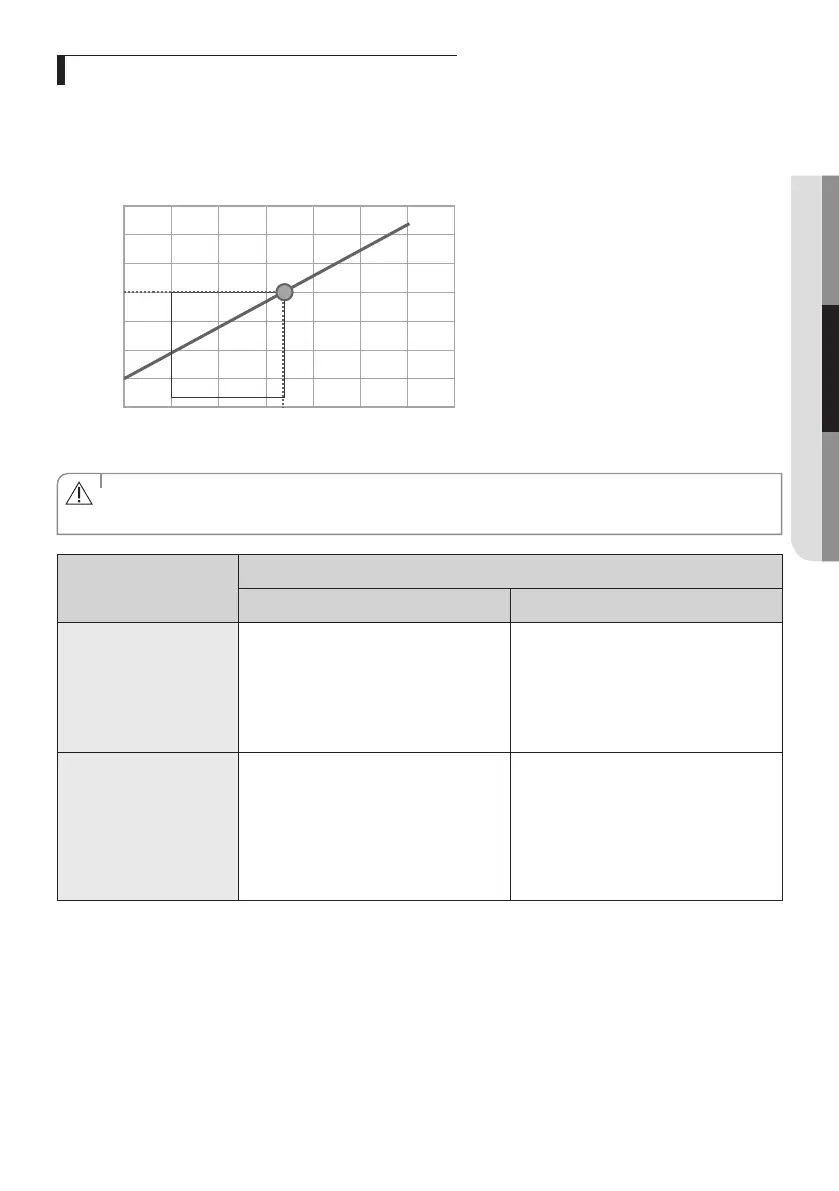

[Lit]
50 100 150 200 250 300 350 400
14.00
12.00
10.00
8.00
6.00
4.00
2.00
0.00
Water volume (Litre) in total system including pipes
Operation range
Norminal
Expansion Vessel capacity (Liter)
• Water volume of total system (except tank hydro unit) for reliable performance is minimum 20 liters(AE040/050/
060/080/090RX**), 40 liters(AE120/160RX**).
CAUTION
Installation height
dierence
a)
Water volume
< 220 Litres > 220 Litres
< 7m No pre-pressure adjustment required.
Actions required:
• Pre-pressure must be decreased, calculate
according to “Calculating the pre-pressure of
the expansion vessel”.
• Check if the water volume is lower than
maximum allowed water volume
> 7m
Actions required:
• Pre-pressure must be increased, calculate
the appropriate value following by
“Calculating the pre-pressure of the
expansion vessel”.
• Check if the water volume is lower than
maximum allowed water volume
Expansion vessel of the unit too small for the
installation.
a) Installation height dierence: height dierence(m) between the highest point of the water circuit and the indoor unit. If
the indoor unit is located at the highest point of the installation, the installation height is considered 0m.
Calculating the pre-pressure of the expansion vessel
The pre-pressure(Pg) to be set depends on the maximum installation height dierence(H) and is calculated as below:
Pg=(H/10+0.3) bar
