ENGLISH-60
Mixing Valve
The mixing valve is controlled based on the FCU WL value.
As the #4044 value increases and the #4045 value decreases, the control speed increases. (Temperature hunting may
occur if the control speed increases depending on the load.)
The additional pump and mixing valve should be purchased separately. TW4 sensor is included in the product
accessories.
TW3 : Water temp. sensor 3
• When the thermostat control is set as 'Use', the mixing valve can be used for Zone 1 and Zone 2. (When both FSV
#2091 and #2092 are set as 1/2)
• When using Zone control (FSV 4061 = 1), ignore Thermostat signal.
CAUTION

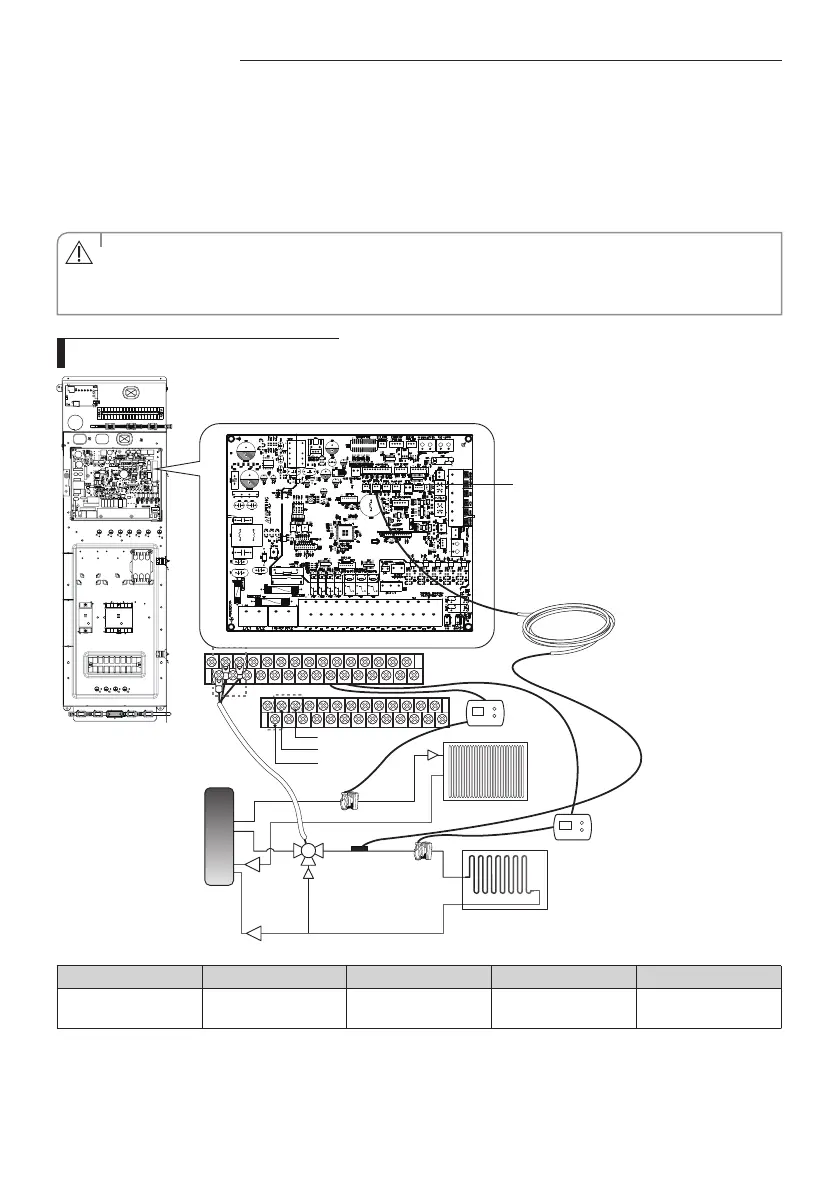

2-zone control using Thermostat
Under Floor
Zone
Controller #1
(Radiators)
Zone Controller #2
(UFHs)
Radiator
TW4
Balancing Vessel
(Mixing tank)
Mixing Senser
(Default, 15m)
CNS045(BLU)
B5 : Neutral(N)
B3 : CCW(L2)
B2 : CW(L1)
Description No. of wires Max. current Thickness Supply Scope
Mixing valve 4 22 mA
> 0.75 mm
2
, H05RN-F
or H07RH-F
Field supply (230V~,
Input)
1. Before the installation, hydro unit should be turned o.
2. Using the appropriate equipment to correct position of terminal block as shown on the diagram.
To Next Page
