ENGLISH-70

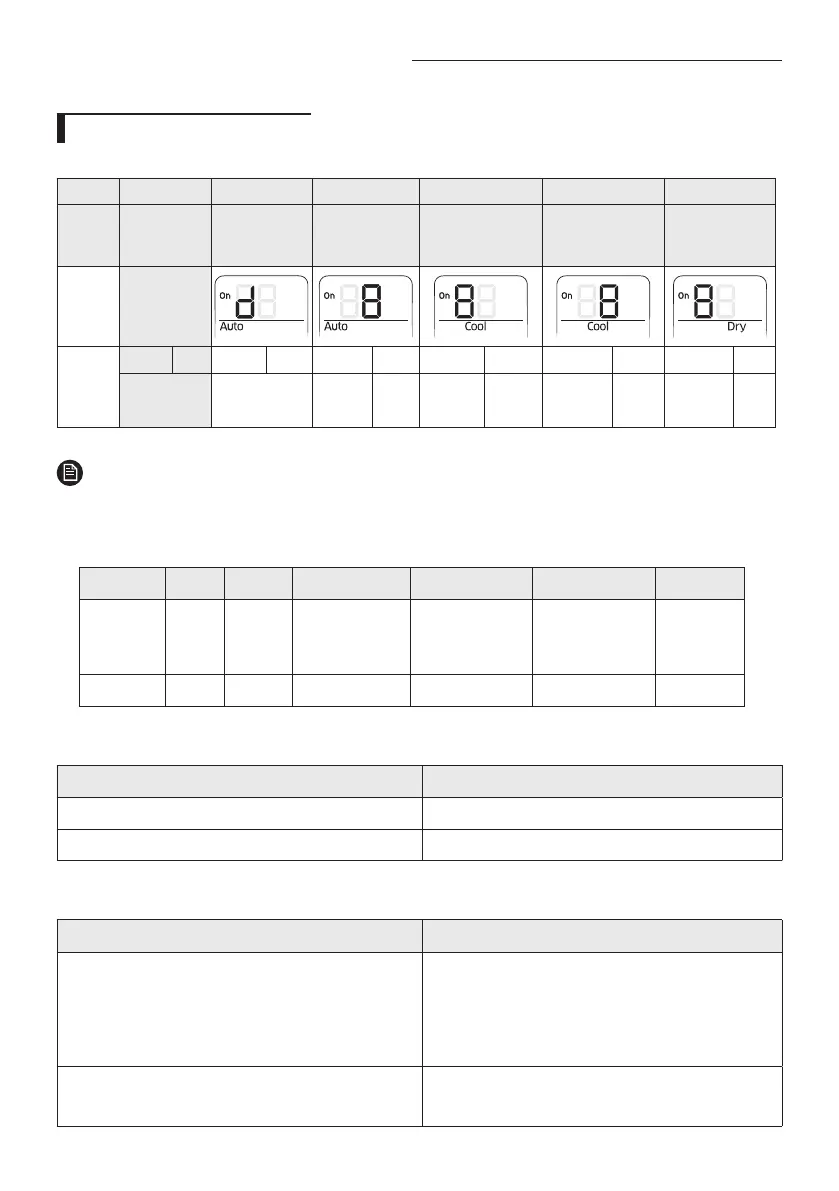

Installation option setting
Changing a particular option
You can change each digit of set option.
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation PAGE MODE
The option mode you
want to change
The tens’ digit of an option
SEG you will change
The unit digit of an option
SEG you will change
The changed value
Remote
Controller
Display
Indication
and Details
Indication Details Indication Details Indication Details Indication Details Indication Details Indication Details
0 D
Option
mode
1~6
Tens’ digit of
SEG
0~9
Unit digit of
SEG
0~9
The changed
value
0~F
NOTE
• When changing a digit of an control kit address setting option, set the SEG3 as ‘A’.
• When changing a digit of control kit installation option, set the SEG3 as ‘2’.
Ex) When setting the ‘central controller’ into disuse status.
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation PAGE MODE
The option mode
you want to
change
The tens’ digit of
an option SEG
you will change
The unit digit of
an option SEG
you will change
The
changed
value
Indication 0 D 2 0 5 0
* 02 Series installation option
Classification SEG1~24
Use central controller (Default) 020010 100000 200000 300000
Disuse central controller 020000 100000 200000 300000
* 01 Series Productin Option(Factory default)
Model SEG1~24
AE200RNWSEG
AE260RNWSEG
AE200RNWMEG
AE260RNWMEG
012300 100000 200000 300002
AE260RNWSGG
AE260RNWMGG
012300 110000 200000 300002
