ENGLISH-72

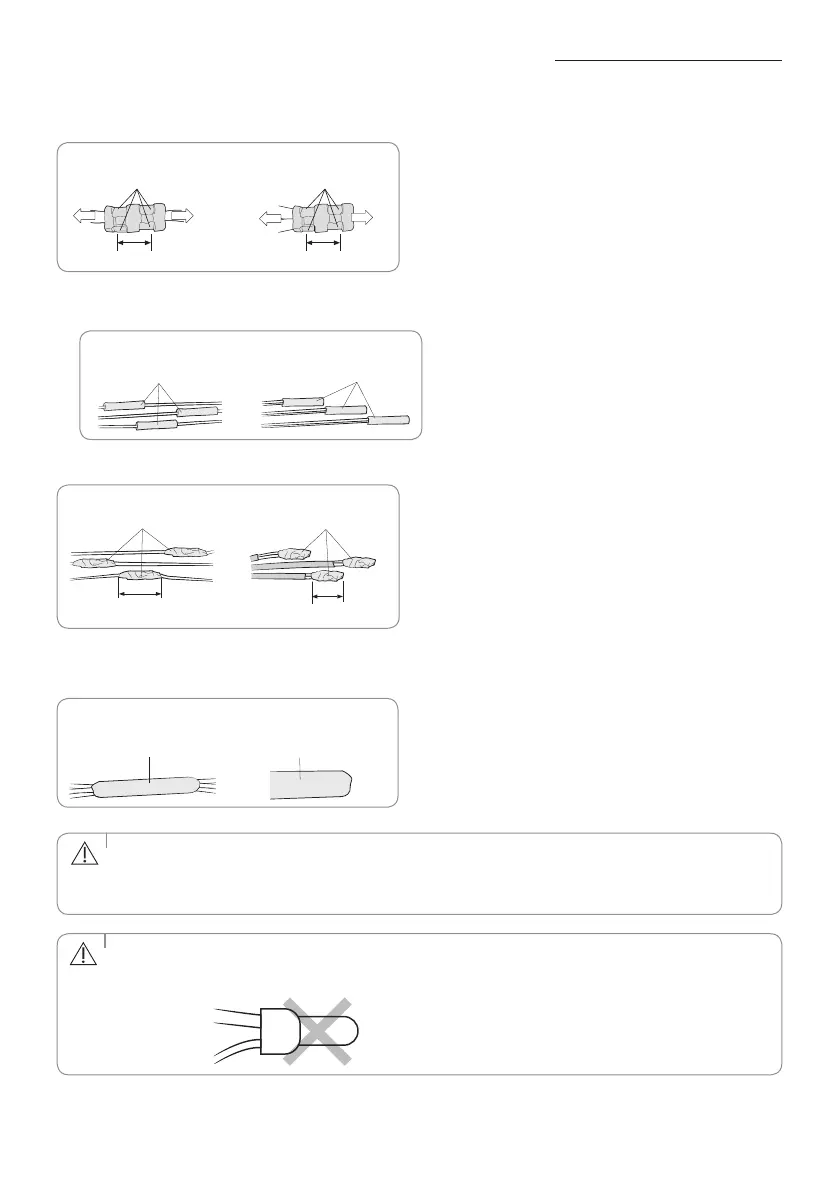

Optional : Extending the power cable
•
After compressing it, pull both sides of the wire to make sure it is firmly pressed.
Compress it 4 times
5 mm
Method 1 Method 2
Compress it 4 times
5 mm
5. Apply heat to the contraction tube to contract it.
Contraction tube
Method 1
Contraction tube
Method 2
6. Wrap it with the insulation tape twice or more and position your contraction tube in the middle of the insulation tape.
40 mm
Insulation tape
Method 1
35 mm
Insulation tape
Method 2
7. After tube contraction work is completed, wrap it with the insulation tape to finish.
Three or more layers of insulation are required.
Insulation tape
Method 1
Insulation tape
Method 2
• Make sure that the connection parts are not exposed to outside.
• Be sure to use insulation tape and a contraction tube made of approved reinforced insulating materials that have
the same level of withstand voltage with the power cable. (Comply with the local regulations on extensions.)
CAUTION
• In case of extending the electric wire, please DO NOT use a round-shaped Pressing socket.
‐
Incomplete wire connections can cause electric shock or a fire.
WARNING
