Preparing for installation

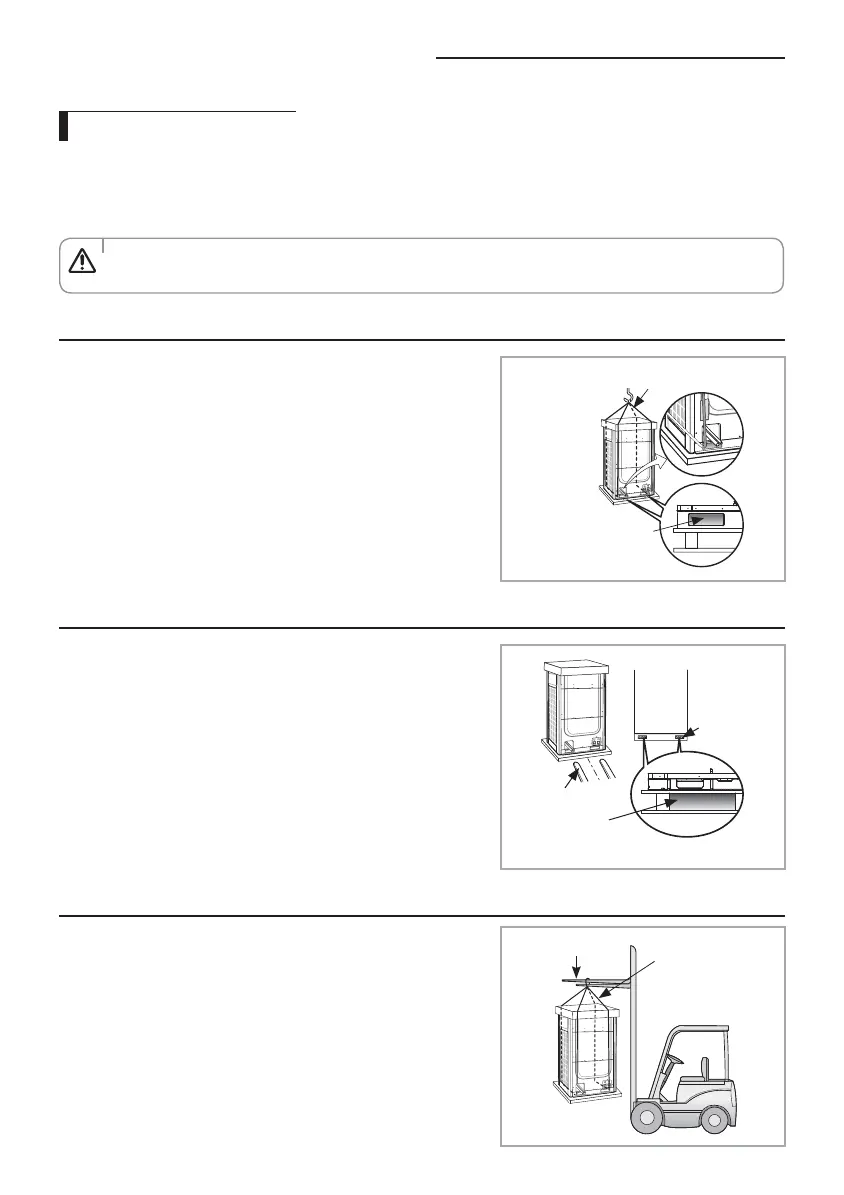

Moving the outdoor unit
 Select the moving path in advance.
 Be sure that moving path can support weight of the outdoor unit.
 Uͱͱϩϑɇϩϩ˵ʪΧθͱʒЇʀϩͱθʪϩ˵ɇߥߢઘи˵ʪʀɇθθц˝ϩ࢏࣑Uͱͱϩɇцϩ˵ʪΧθͱʒЇʀϩʒͱиϑʒʪиɇцϑ࢏࣒
 Surface of the heat exchanger is sharp. Be careful not to get injured while moving the product.
࡛You must use certain part of the product when moving the product.
CAUTION
When moving with a crane
 ɇϑϩʪϩ˵ʪиθʪθͱΧʪɇϑϑ˵ͱиϩ˵ʪѣ˝Їθʪ࢏
 To protect damage or scratches, insert a piece of cloth between
the outdoor unit and the wire rope.
Wire rope
Holes for wire
rope to go through
When moving with a forklift
 Carefully insert the forklift forks into the forklift holes at the
bottom of the outdoor unit.
 Be careful with the forklift from damaging the product.
Forklift
Forklift holes
Holes for forklift
forks to go
through
When moving the product without wooden pallet and the crane is not available for use
 Connect a wire rope to the outdoor unit as you would move it
with a crane.
 Hang the wire rope to the forklift fork to move the outdoor unit.
Wire rope
Forklift
