Samsung AM300MXVGNR4ET - Connected

55
ENGLISH

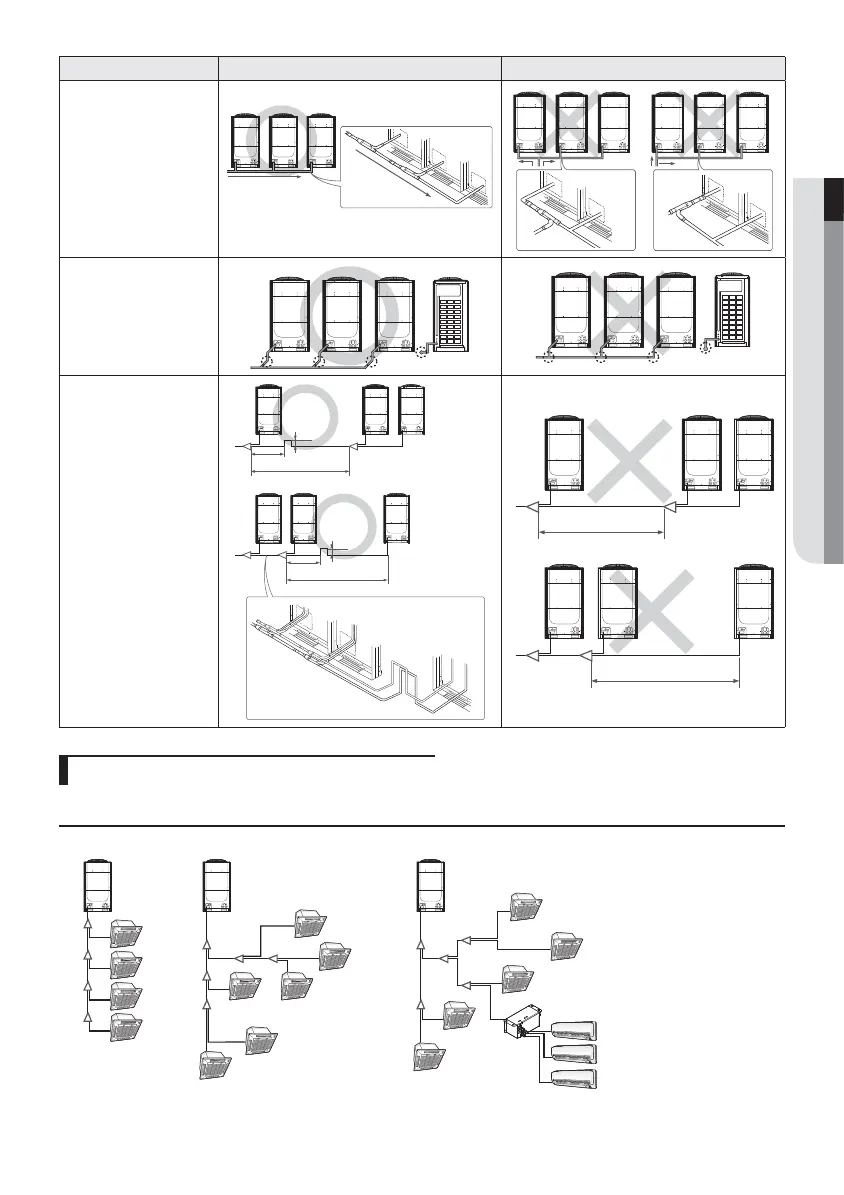

Caution Correct installation Incorrect installation
Refrigerant pipes must
be connected by the
side of the product.
Straight section
should be 300mm
or more
Branch joint between
outdoor units must be
installed horizontally.
Install a vertical trap in
following cases as shown
ϩ˵ʪѣ˝Їθʪࡤ
Case1. Pipe length
between outdoor unit
branches exceeds 2m.
Case2. Pipe length
between outdoor unit and
its branch exceeds 2m.
1 m or less
1 m or less
ߤߢߢ
ߥߢߢ
ߤߢߢ
ߥߢߢ
Over 2 m
Over 2 m
Over 2 m
Over 2 m
Examples of refrigerant pipe installation
H/P
1. Using Y-joint
