Samsung AM300MXVGNR4ET - Installing the Distribution Header

63
ENGLISH

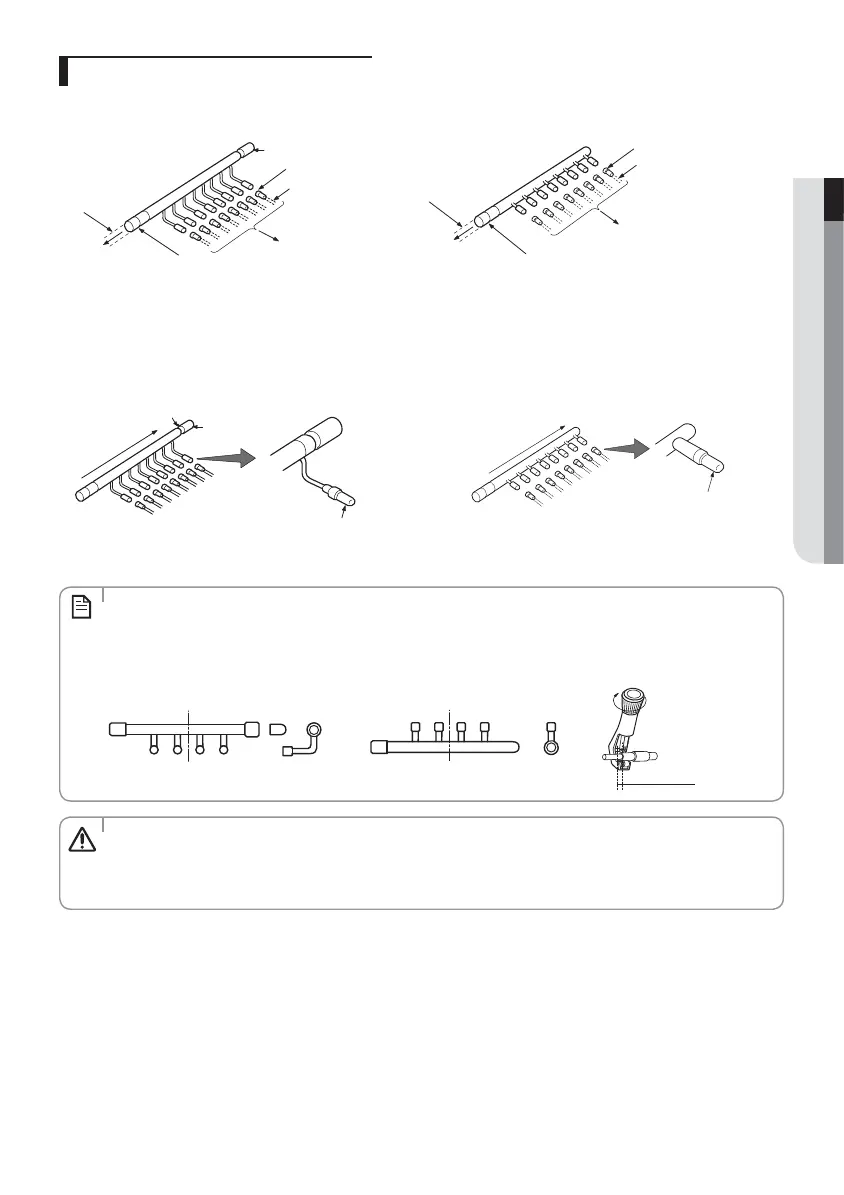

Installing the distribution header
1. Ɗʪʪʀϩϩ˵ʪθʪʒЇʀʪθϩ˵ɇϩѣϩϑϩ˵ʪʒɇʪϩʪθͱ˙ϩ˵ʪΧΧʪ࢏
<Gas side>
Socket
Pipe *
To indoor unit
Pipe*
Socket
To outdoor unit
<Liquid side>
Socket
Pipe*
To indoor unit
Pipe*
Socket
To outdoor unit
Provided item
࢜
Pipe : Separately purchased item
2. If the number of connected indoor unit is fewer than ports on the distribution header, block the unused
ports with caps.
<Liquid side>
Case of blocking the unused
distribution header ports
Connect
in order
Welding part
Provided
item
<Gas side>
Case of blocking the unused
distribution header ports
Connect
in order
࡛ͱθâϩцΧʪʒϑϩθɵЇϩͱ˵ʪɇʒʪθࡤ
Connect the distribution header to the connection pipe with the provided reducer.
࡛ͱθçȐϩцΧʪʒϑϩθɵЇϩͱ˵ʪɇʒʪθϑࡤ
Cut the provided socket, according to the diameter of the connection pipe, before connecting it.
ĮЭʪθߣߢߣߧ
NOTE
࡛Connect the indoor units in order, while respecting the direction of the arrow shown in the
illustration.
࡛When indoor units are connected to same distribution head, indoor unit must be connected in order
of their capacity, from largest to smallest.
CAUTION
