Disassemble and reassemble (Continued)
ΙΙ

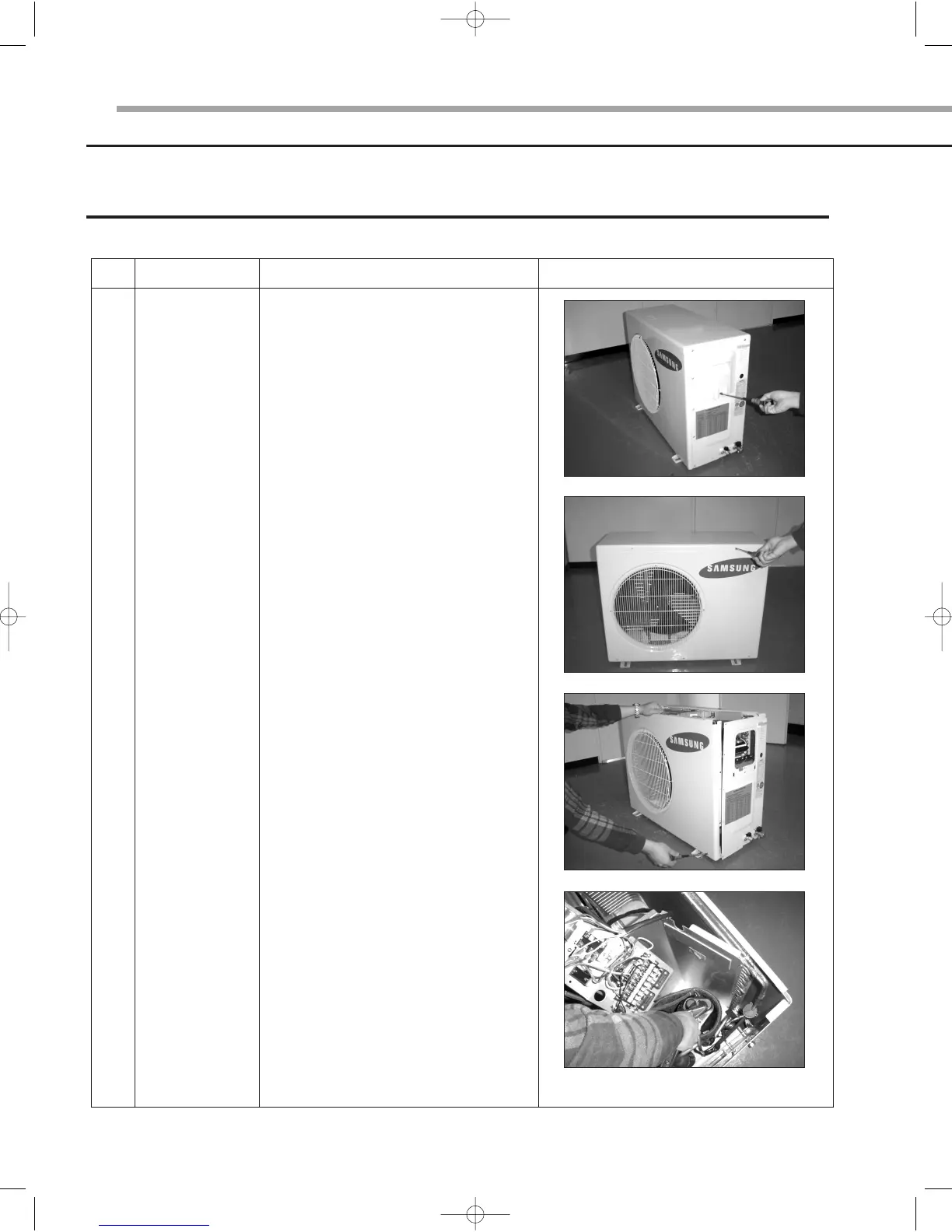

2 Outdoor unit
No. Part Procedure Remark
Common Work
1
1) Loosen the fixing screws and separate
the cover control.
2) Separate the connection wire from the
terminal block.
3) Loosen the fixing screws and separate
the upper cabinet.
4) Loosen the fixing screws and separate
the front cabinet.
5) Loosen two screws and pull up the
control box.
6) Loosen the nut on the terminal cover
and open it.
7) Separate the comp lead wire.
■ US18A9(0)RCF/US18A9(0)RCFD
❊ The designs and shape are subject to change according to the model.
