Samsung BD-P1400 - Sil9134 HDMI (Main PCB)

7-10 This Document can not be used without Samsung’s authorization Samsung Electronics
Schematic Diagrams

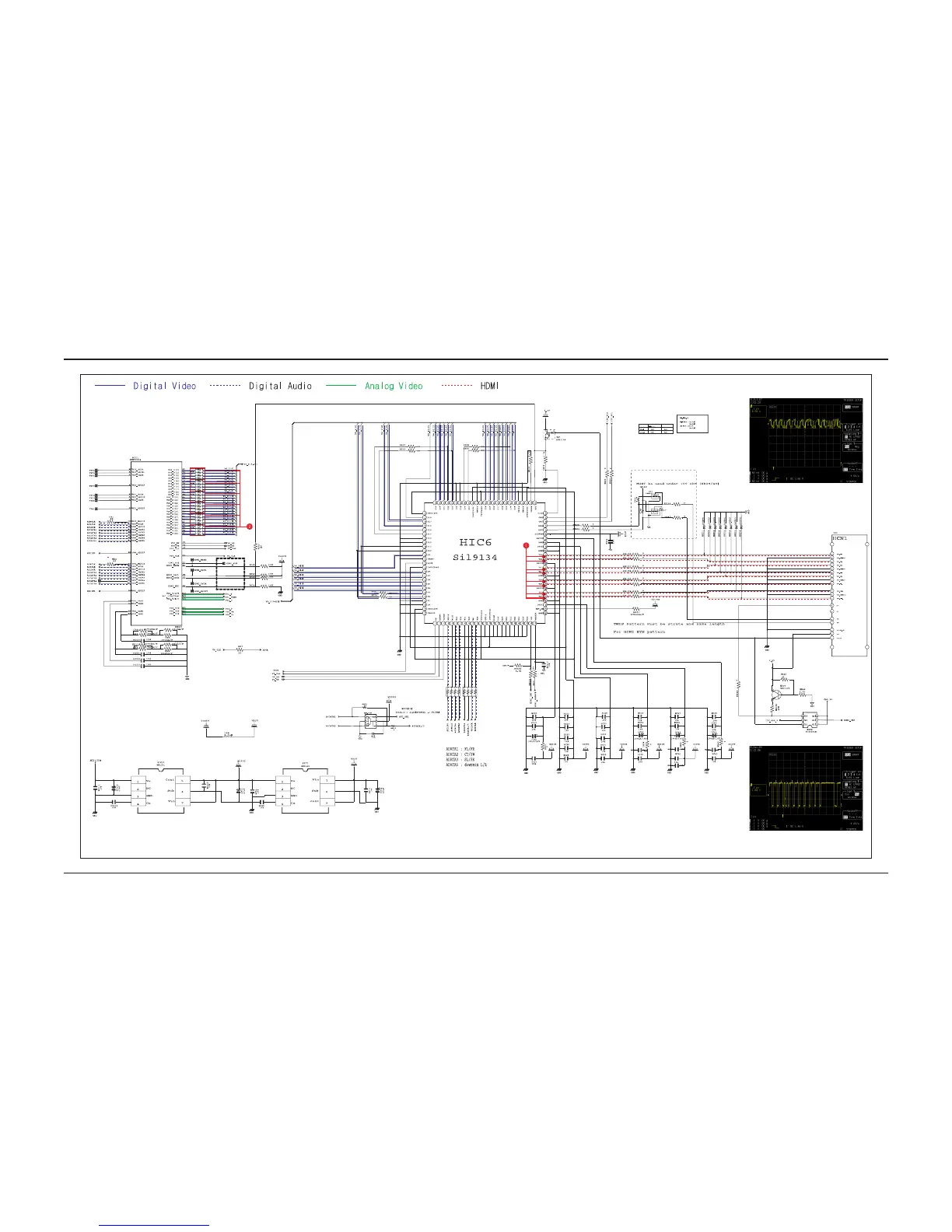

7-8 Sil9134 HDMI (Main PCB)
qHDMI OUTPUT DATA
HIC6 (pin30,31,33,34,36,37,39,40)
u These are the waveforms of BD-P1400
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
wDigital Video signal
MIC1 (HRN1~HRN6)
