Samsung BD-P1400 - MM1757 Analog Video out (Main PCB)

Schematic Diagrams
Samsung Electronics This Document can not be used without Samsung’s authorization 7-15

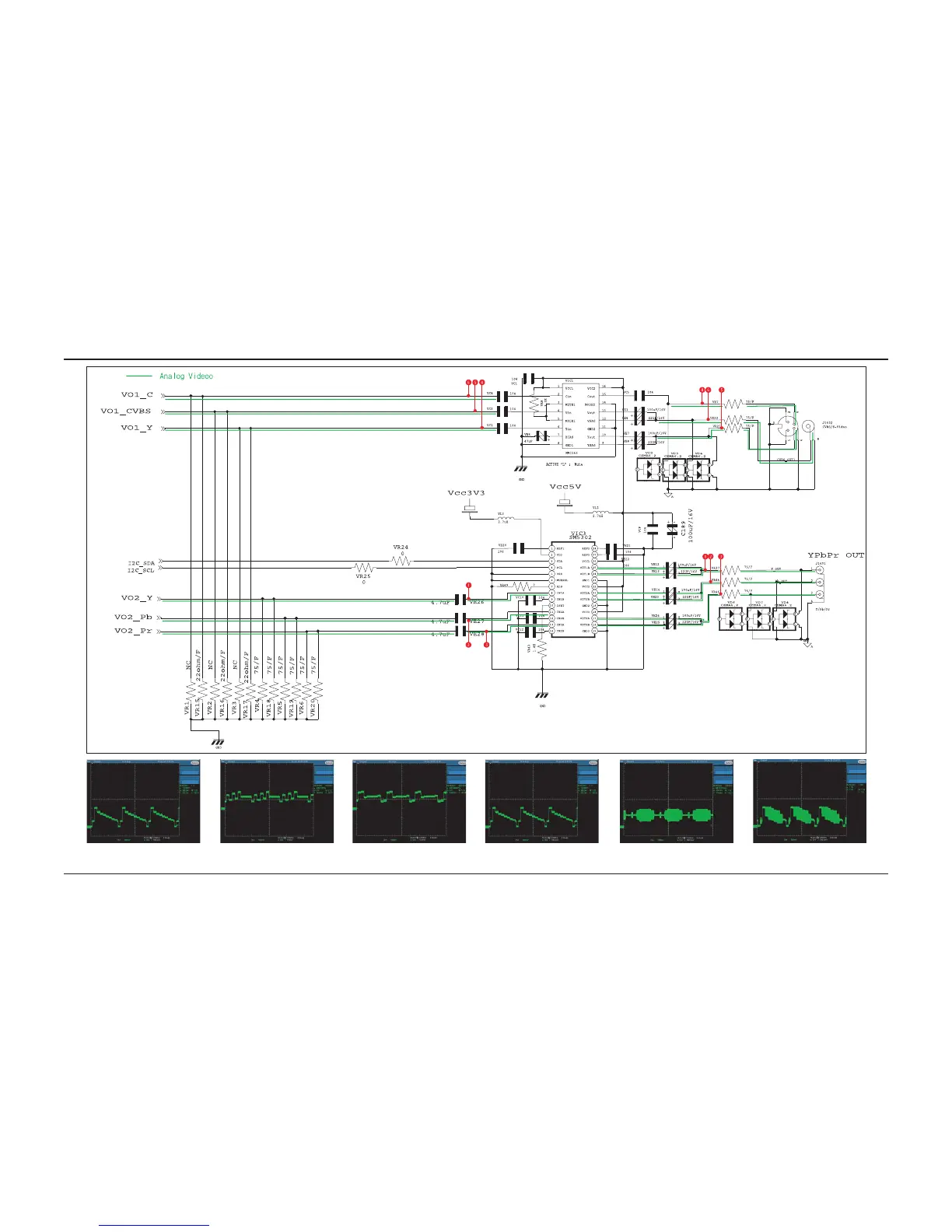

7-13 MM1757 Analog Video Out (Main PCB)
ePr(Color-bar)
Pin (MIC1-VE28,VR46)
wPb(Color-bar)
Pin (MIC1-VE27,VR44)
qY(Color-bar)
Pin (MIC1-VE26,VR37)
rY(Color-bar)
Pin (MIC1-VC2,VIC1-VR7)
tC(Color-bar)
Pin (MIC1-VC3,VIC1-VR21)
yCVBS(Color-bar)
Pin (MIC1-VC4,VIC1-VR22)
u These are the waveforms of BD-P1400
Caution There can be some differences (Voltage, Frequency, stc.) among cameras.
