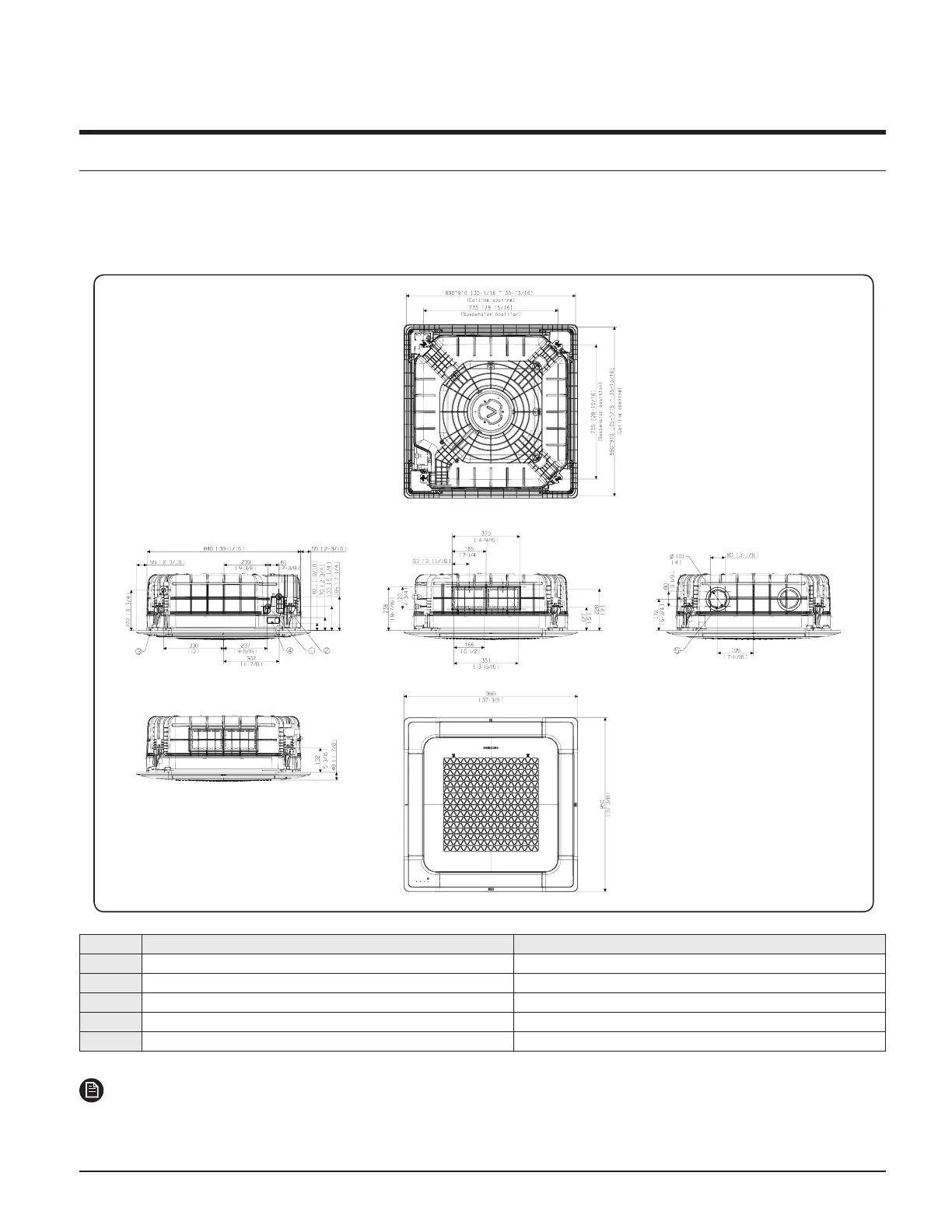

4. Dimensional Drawing
CNH304DB (AC030BN4DCH/AA), CNH364DB (AC036BN4DCH/AA)
Units : mm [inches]
No. Name Description
1 Liquid pipe connection
Φ 9.52mm(3/8")
2 Gas pipe connection
Φ 15.88mm(5/8")
3 Drain pipe connection
VP25[OD32mm(1.26"), ID25mm(0.98")]
4 Power supply & Communication wiring conduit
5 Fresh air intake knockout hole
Φ101mm(4") , Use M4 Screw
NOTE
• As for suspension bolt, please use M8 ~ M10.
(Procured at local site)
Wind-Free 4Way Cassette
