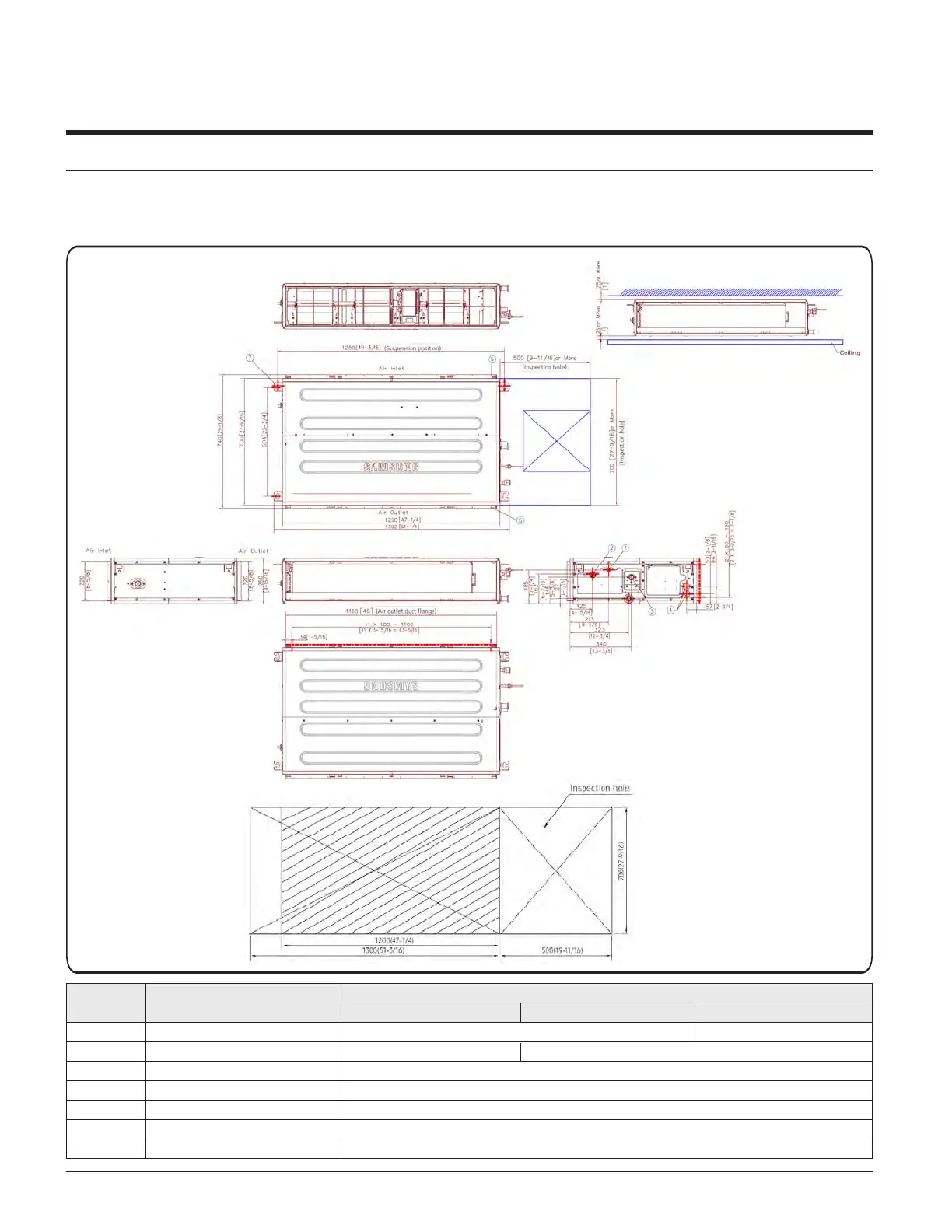

Duct S
Units : mm (inches)
CNH18HDB (AC018BNHDCH/AA), CNH24HDB (AC024BNHDCH/AA), CNH30HDB (AC030BNHDCH/AA)
NO Name
Description
CNH24HDB (AC024BNHDCH/AA) CNH30HDB (AC030BNHDCH/AA)
1 Liquid pipe connection
Φ6.35 mm(1/4") Φ9.52 mm(3/8")
2 Gas pipe connection
Φ15.88 mm(5/8")
3 Drain pipe connection
3/4"[OD26.67mm(1.05")]
4 Power supply connection
-
5 Air discharge flange
-
6
Air suction flange -
7 Hook
M8~M10
CNH18HDB (AC018BNHDCH/AA)
Φ12.7 mm(1/2")
