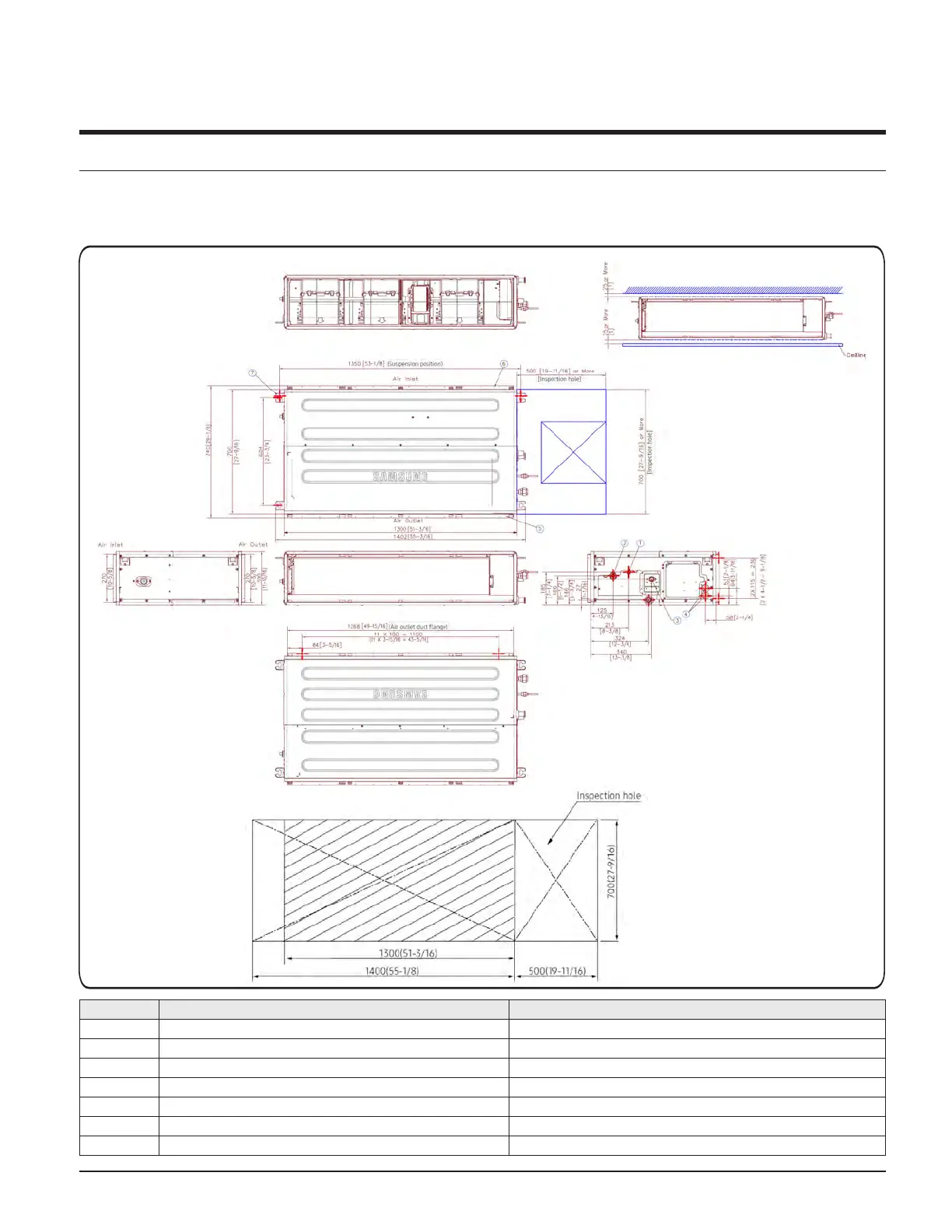

4. Dimensional Drawing
Duct S
Units : mm (inches)
CNH36HDB (AC036BNHDCH/AA)
NO Name Description
1 Liquid pipe connection
Φ9.52 mm(3/8")
2 Gas pipe connection
Φ15.88 mm(5/8")
3 Drain pipe connection
3/4"[OD26.67mm(1.05")]
4 Power supply connection -
5 Air discharge flange -
6
Air suction flange
-
7 Hook M8~M10
