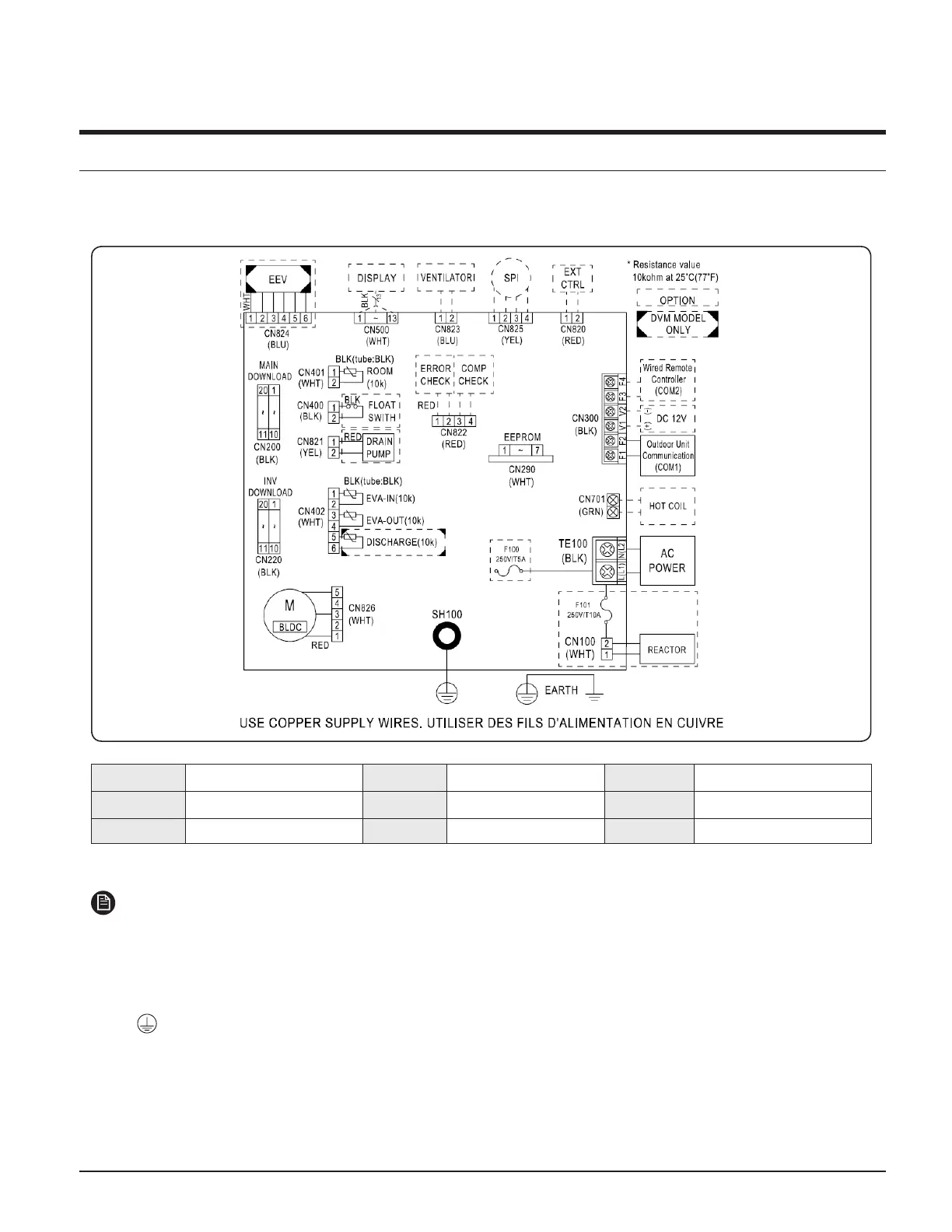

66.. ElElectricectrical al Wiring DiagrWiring Diagramam
Duct S
NOTE
• This wiring diagram applies only to the Indoor unit.
• Symbols show as follow :
blk: black, red: red, blu: blue, wht: white, yel: yellow, brn: brown, sky: skyblue: grn: green
• For connection wiring indoor-outdoor transmission F1-F2, indoor-wired remote controller transmission F3-F4.
•
Protective earth(screw)
MAIN PBA Printed circuit board(MAIN) EEV Electronic Expansion Valve ROOM (10K) Thermistor ROOM in (10K)
EXT_CONTROL EXTERNAL CONTROL EVA-IN (10K) Thermistor EVA IN(10K) EVA-OUT (10K) Thermistor EVA OUT(10K)
M-BLDC BLDC Motor
DIS CHARGE(10K) Thermistor DISCHARGE
To Next Page
