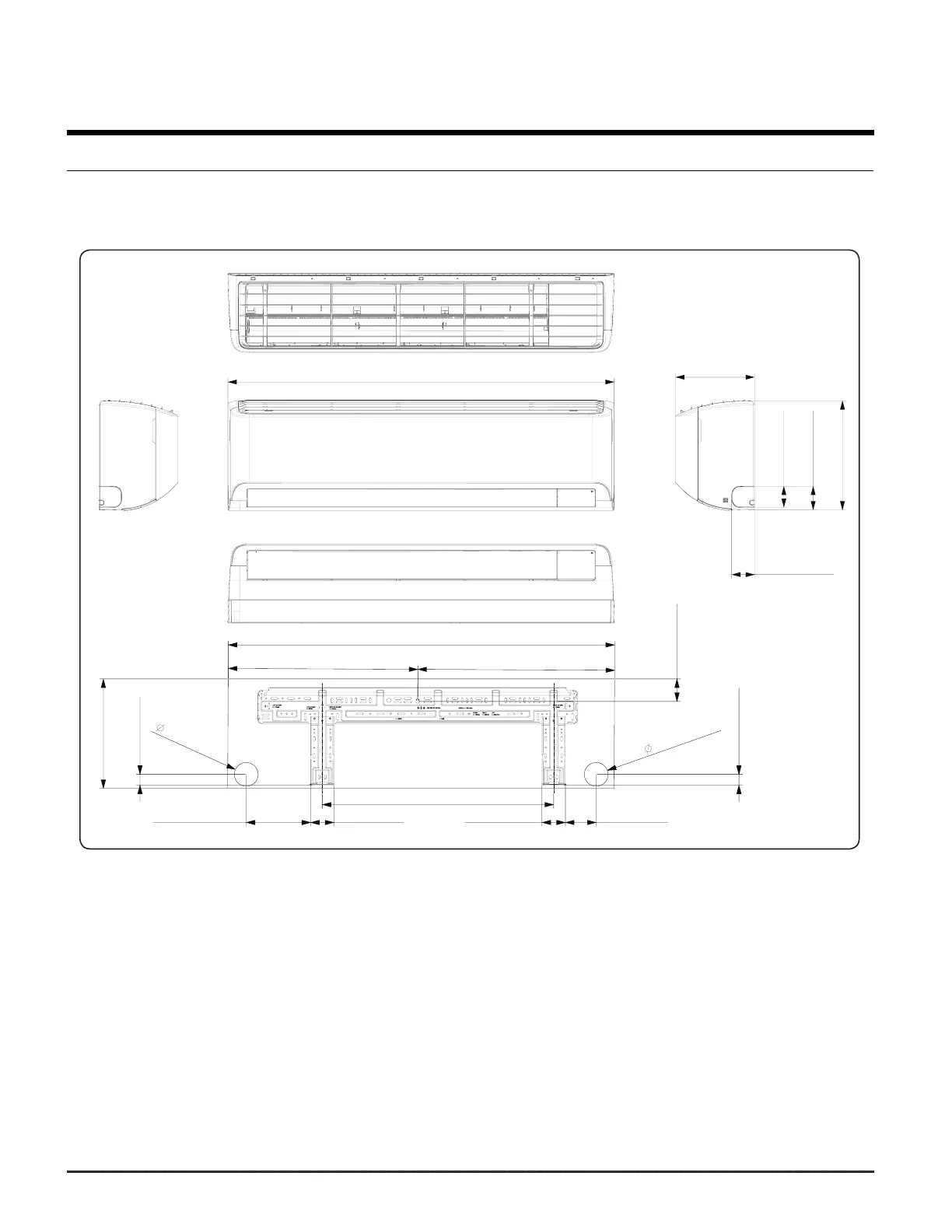

Samsung CXC36SCB - Dimensional Drawing

Units : mm [inches]
1054.5 [41-1/2]
299.0 [11-3/4]
[21-1/8]537.0
[20-3/8]
517.5
61.5 [2-7/16]
[2-9/16]65.0
[2-9/16]65.0
631.5 [24-7/8]
84.0 [3-5/16]
29.0 [1-1/8]
64.0 [2-1/2]64.0 [2-1/2]175.6 [6-15/16]
29.0 [1-1/8]
1054.5 [41-1/2]
215 [8-7/16]
299 [11-3/4]
65.0 [2-9/16]
58.1 [2-5/16]
62.4 [2-7/16]
4. Dimensional Drawing
Wall Mounted Type
CNH18ADB (AC018BNADCH/AA), CNH24ADB (AC024BNADCH/AA)
