Samsung CXC36SCB - 4. Dimensional Drawing

Wind-Free 4Way Cassette

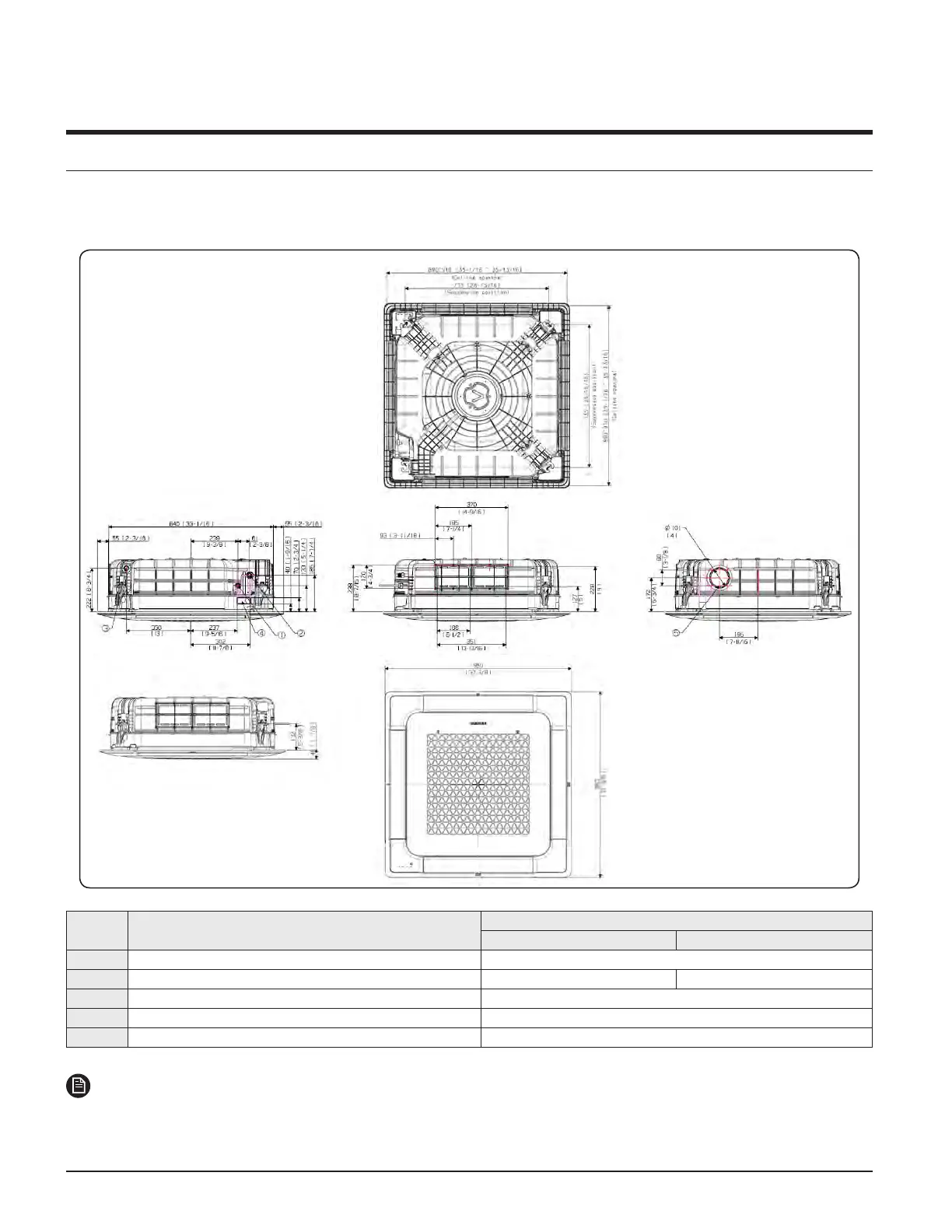

4. Dimensional Drawing4. Dimensional Drawing
CNH184DB (AC018BN4DCH/AA), CNH244DB (AC024BN4DCH/AA)
Units : mm [inches]
No. Name
Description
CNH184DB (AC018BN4DCH/AA) CNH244DB (AC024BN4DCH/AA)
1 Liquid pipe connection
Φ 6.35mm(1/4")
2 Gas pipe connection
Φ 12.7mm(1/2") Φ 15.88mm(5/8")
3 Drain pipe connection
VP25 [OD32mm(1.26"), ID25mm(0.98")]
4 Power supply & Communication wiring conduit
5 Fresh air intake knockout hole
Φ101mm(4") , Use M4 Screw
NOTE
• As for suspension bolt, please use M8 ~ M10.
(Procured at local site)
