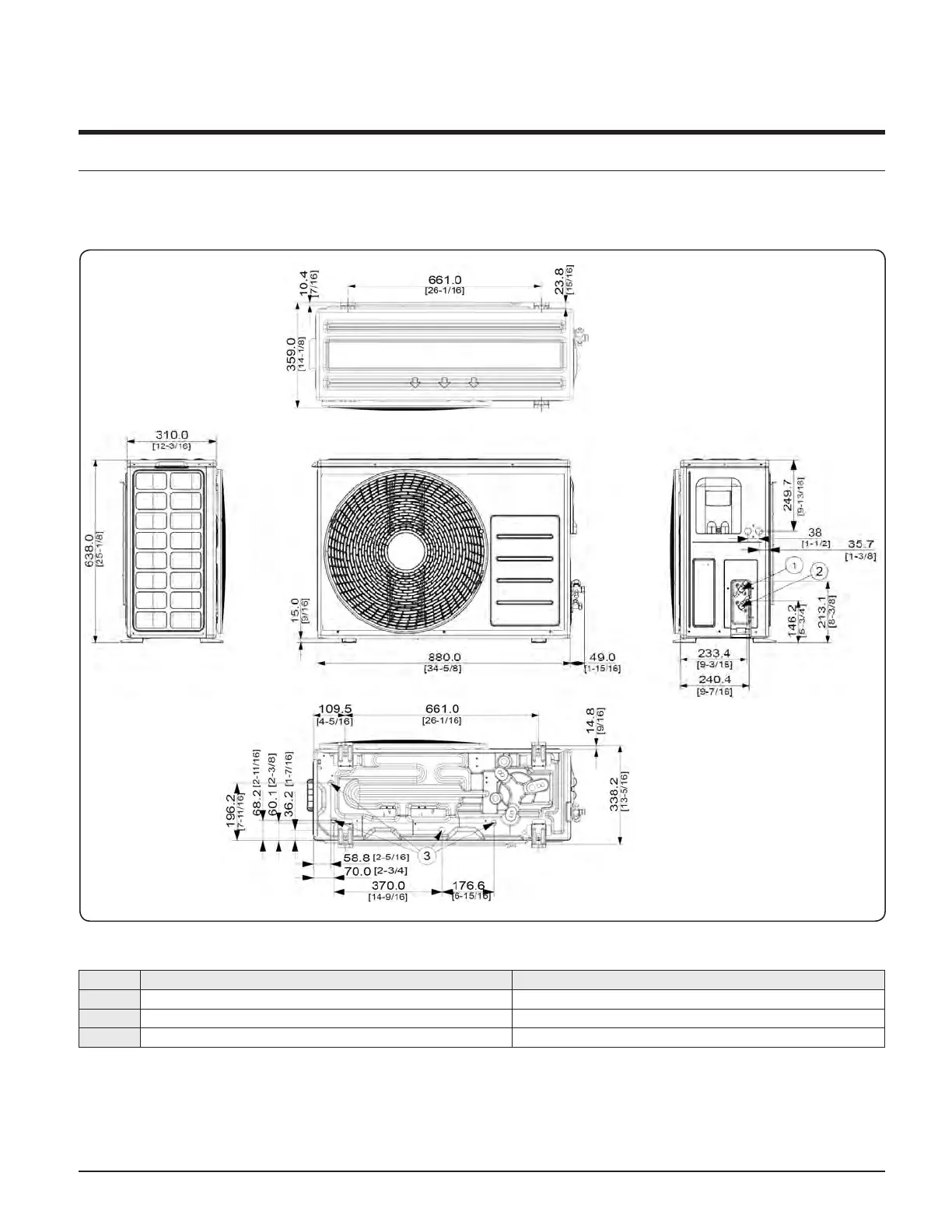

2. Dimensional Drawing
Outdoor Units
CXC18SCB (AC018BXSCCC/AA)
Units : mm [inches]
No. Name Description
1 Refrigerant liquid pipe
Φ 12.7mm(1/2")
2 Refrigerant gas pipe
Φ 6.35mm(1/4")
3 Drain hole
Connect with provided drain plug
