Outdoor Units

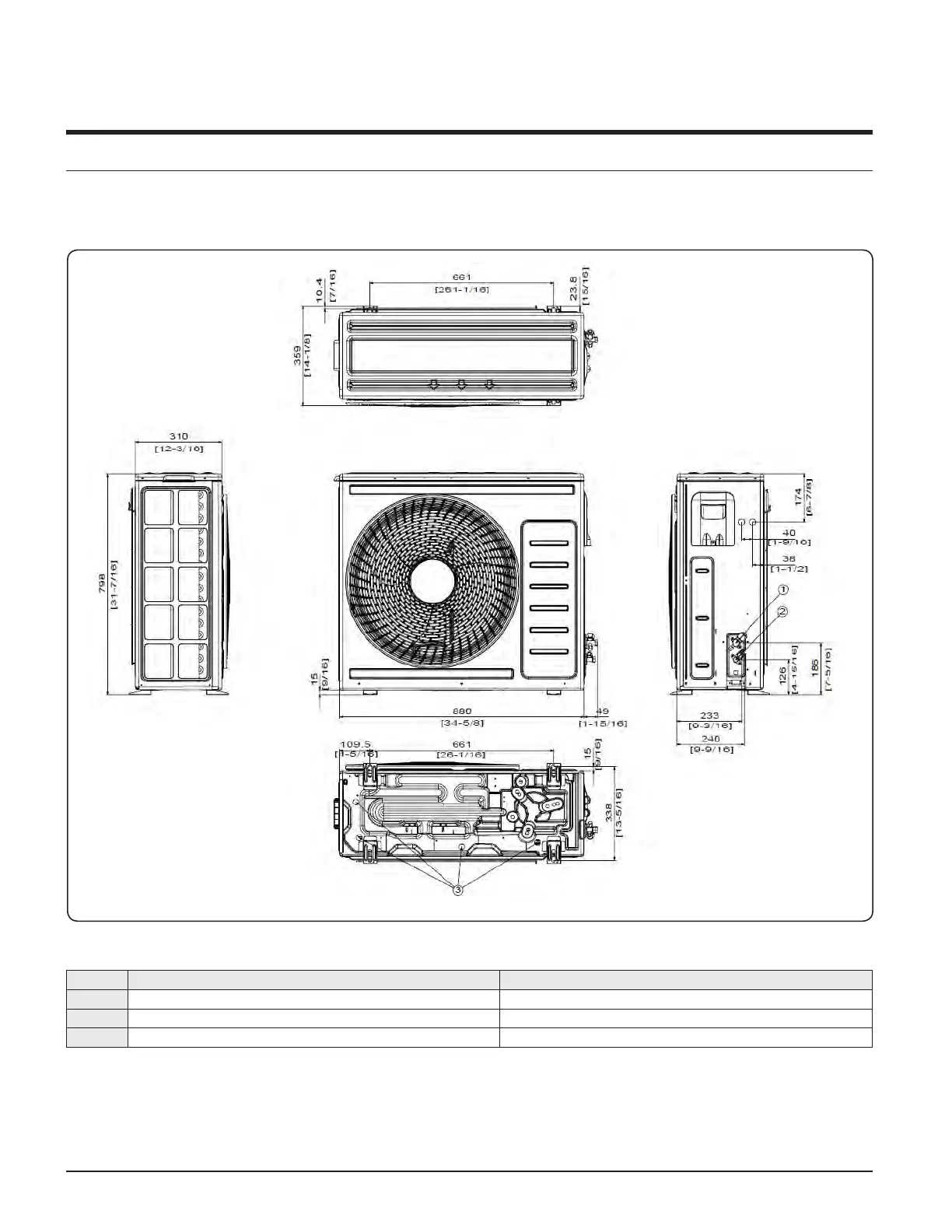

2. Dimensional D awing
CXC24SCB (AC024BXSCCC/AA)
Units : mm [inches]
No. Name Description
1 Refrigerant liquid pipe
2 Refrigerant gas pipe
Φ 6.35mm(1/4")
3 Drain hole
Connect with provided drain plug
Φ 15.88mm(5/8")
